FabriCAM Software Flat Parts P41 Basic Semicircle (Part 6) Step by Step Video Tutorial

When it comes to basic parts in FabriCAM software, the Semicircle Flat Part becomes a bit more complicated.

After we have covered the Semicircle Flat Part we only have a few basic items left on our list of basic parts.

This video is part of a Mini-Series.
Next video covers FP P42 Pie.
Previous video covered FP P9 Hexagon.

Video Transcript

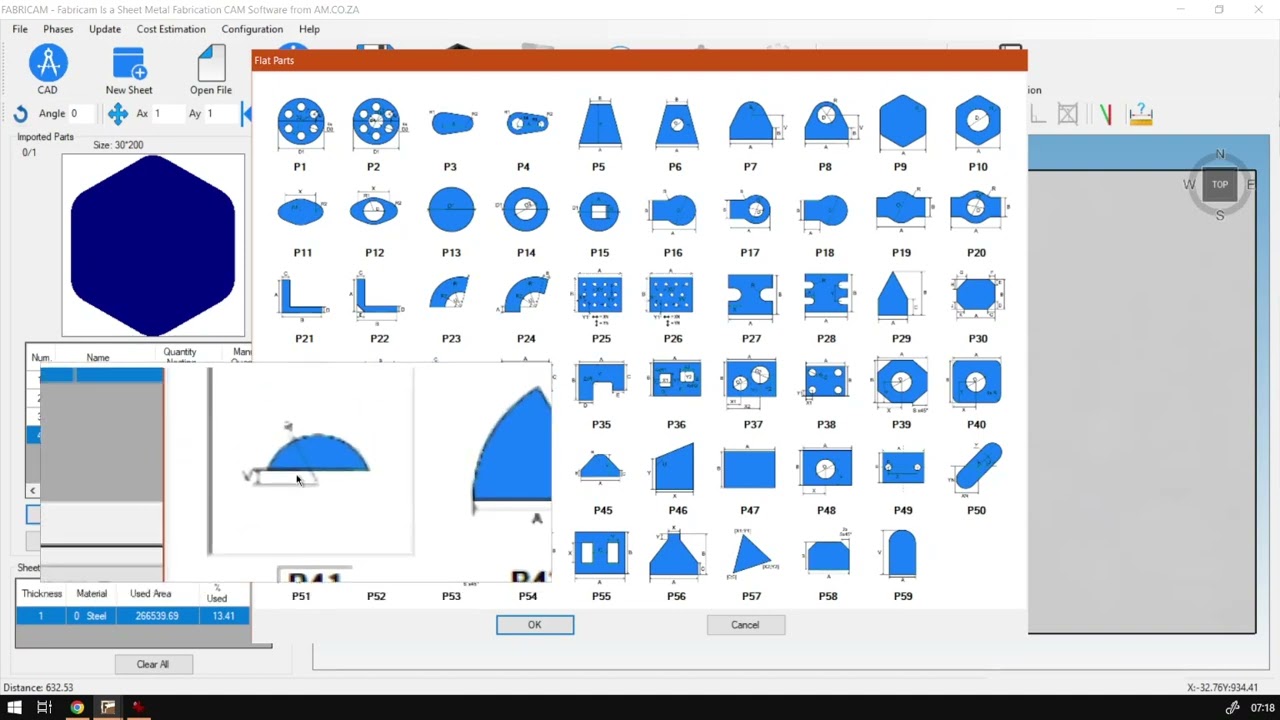

Now, you guys in today's video, we're gonna be looking at part 41 from your basic part, and this will be a semicircle. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za hat we make sure needs to watch problem solving videos. We also have daily updates. Otherwise, if we head back into the programme here, So now we're gonna be looking at P 41 or part 41 from our basic parts. Like I mentioned, our basic parts consists out of either one or two shapes. So at the moment, we, as you can see, I have four down already. So now we're gonna be looking at the fifth part. So what I want to do is go to flat parts like before. And then we navigate to p 41 just zooming here for you guys. And then if we click this, we will see the part opens its got two measurements got V and R. And, uh, important thing about this one, I would say is Make sure your V is always smaller than you are Otherwise, what will happen is let me show example. Let's go 100 make this 1 101. So Okay, then you can see nothing happens, and it highlights the one that's the problem. So then what we wanna do is if we stop this around just by one. Say okay now signing our preview pops up. So I would say, with this shape, it's an important one with a semi circle. Make sure your V is at least one smaller. But ideally, according to your measurements, obviously, and then so I'm gonna make this one. Maybe around 200 goes on around 50. We have a little previously It looks good for me. I'm gonna add the manual quantities to one ad, and then we can add this shape to our actual canvas or, uh, cutting plate. So I'm gonna put that they're so once again, this is p 41 semicircle. And, uh, just an important thing about this one. Make sure your V value is smaller than your actual, um are valuable. So once again, the values within our value then you should be fine. Yeah, otherwise, that is it. In the same circle. If we head here to softwaretraining.co.za. You'll notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, request the training video filling the form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
