FabriCAM Software P26 Advanced 11 Options Part (Part 11) Step by Step Video Tutorial

When it comes to the amount of options that a part has, the P26 currently has the most that we have covered so far.

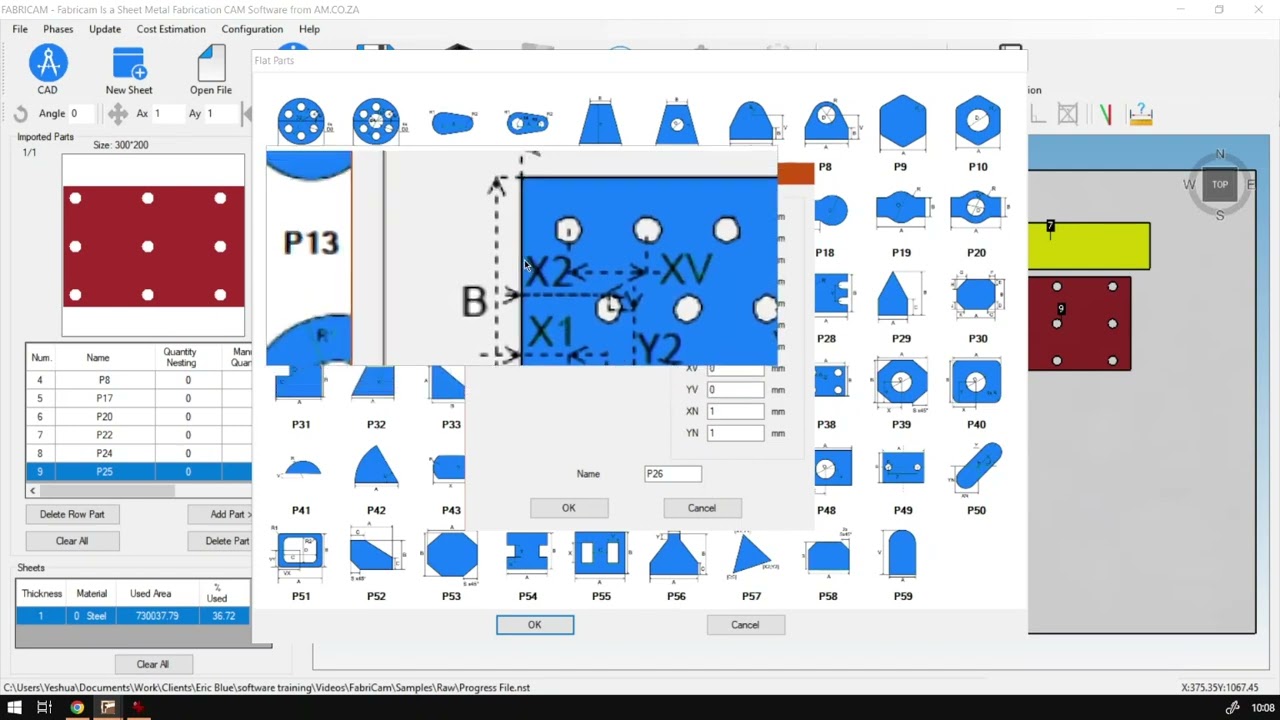

the P26 Advanced Flat Part has eleven options that we are able to set, so you can only imagine what a mess the instructional preview looks like.

This video is part of a Mini-Series.
Next video covers P28 Advanced Circle Cut Outs.
Previous video covered P25 Advanced Rectangle Cut Out 2nd.

Video Transcript

are you guys in today's video? We're gonna be looking at part number 26 this will be from our advanced flat, flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure to watch problem solving videos, and we also have daily updates. Otherwise, we had to get back into the programme here. Now today's part is our 1st 11 part or 11 options part, so it's gonna be pretty insane. But because we just covered this part, um, part what is 25? The part 26 is very similar, so we don't have to run through all the options quite thoroughly. But anyway, so let's go to flat parts. Then we go to part 26 so we can see is right next to part 25. And then if I zoom in here, you can see we've got some few extra options now on the right here, you can see this is quite an intimidating sight. But you might also notice by this one they fixed a few things like the XV yv over here. Now we can see XPS on top. YV is at the bottom. So now I'm gonna do the same as just a just a few things that make us about 400. 300. Then you want to set our X and our actual y So this is the distance between, like I said, the side and the circles. So let's go. This is for X one. So if I zoom in here just so you guys know So we've got an X two and y as well. So you see X one, This is to this whole x two. This is to the centre rope. So the top row and the centre wrote it's gonna be different, obviously, depending on how many road you throw in. If there's 1/4 1, then this, uh, setting for X two is going to be relevant for that row as well. So let's vary this up. So the first one we want to make maybe about 50 and let's make the other one to the inside. Maybe so you make it 20. Oh, this is for the top. So I make 50 50 and 20 and why two? This will be the height. So we maybe make this. Let's try about 50 as well. It's anybody's is diameter of the holes I'm gonna make these about. Let's try about 40 now. I'm obviously just putting in random values. You're hoping they all work with each other. You will obviously be calculating yours beforehand and fill in the details accordingly. Now we've got an X V and Y V, so if we just zooming here, try to find those. So as you can see here, XV is obviously a distance between the two and the horizontal plane. And then let's find the YV here. This will be would seem like perhaps I'm not sure it should be. The sense of the height, but with always extra lines makes it quite confusing. So let's try that. So, XV, let's make this about the same with as a circle. So 50 or it's gonna go to the centre of them And why, uh, 50 as well. Now I'm gonna make it a three line for the on the X, so it's gonna be three of them and just leave it at three for that as well. And let's hope this works. There we go. Okay. So as you can see. It is quite a mess up of he. At the moment, we've got some circles overlaying other circles, and I think this has to do with our actual Uh What is it? The Y? Yeah, the y two. So let's increase this and see what happens. I'm gonna make this about a 100. As you can see now, this one is actually starting to lift. So let's go even more. Let's go. 200. Say Okay, 202 large. Let's go. 1 50. There we go. Now we've got it more lined up, obviously, what you want to do? In an ideal scenario, you want to space these so that these ones fall in between them. Currently, I've got them all aligned, but yeah, it's setting up them correctly for this video is going to take too long. So we'll have to make it two parts which I do not want to do because you kind of already know how this works. Otherwise, I'm just gonna put manual quantities. One. I'm not very happy with the look of this shape, but in order to not hog up too much of our time, let's just add that. But yeah, otherwise, that is it. On part 26 I say it's got 11 options. It's definitely our most advanced part yet. Otherwise, where you're just softwaretraining.co.za I'll see you guys will notice. We've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos are looking forward to somebody. Go, Yeah, request training video in the mini form. Then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
