FabriCAM Software Flat Part P46 Degree Cut Out (Part 21) Step by Step Video Tutorial

fabricam degree cut out

The next Rectangle part on our list is P46, this time we will be looking at a cut out on the shape.

What makes this cut out so interesting this time is the fact that we will be doing a Degree based cut out.

This video is part of a Mini-Series.
Next video covers P49 Rectangle with 2 Circles.
Previous video covered P44 Rounded Corner Rectangle.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

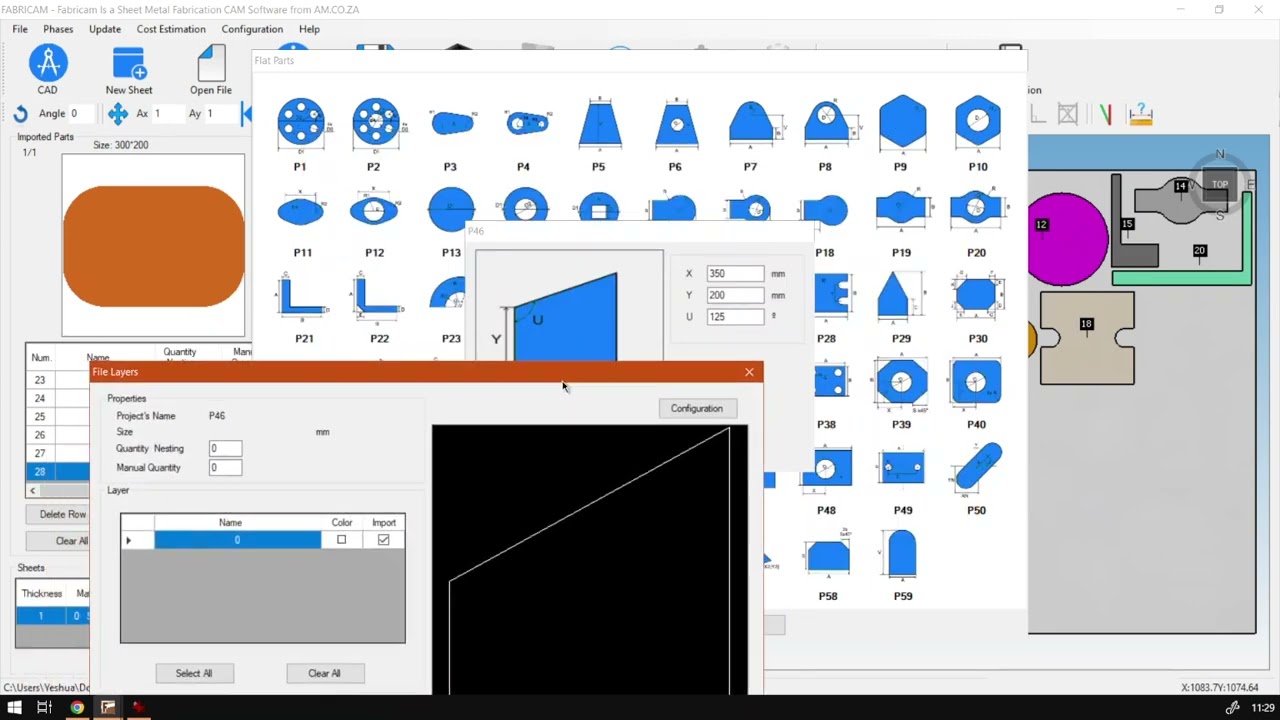

Alright guys, In today's video, we're gonna be looking at our part Number 46 from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure an easy to watch problem solving videos and we also have daily updates. The ones we're back into the programme here. Now today's part. It's gonna be a little bit more advanced and the fact that it works with degrees, but it only has three options or values that you can set, so it still is considered an intermediate part. So if we go to flat parts, go to our p 46 I'm gonna open this and then we can see here from a little preview box. We've got our three values, so we've got a Y x and the u. So now on the right here, we can see the X and y yes, millimetre, and the U is the grease. So over here, then why obviously sets the height x the width and the use sets the degrees of this corner. Now there's a few things to keep in mind when you're setting this, which is handy. Obviously, you cannot set it to zero degrees, which obviously won't work. And then also the width and height is quite important, depending on degrees. So I'll just make a quick example of this. Go 202 100. And then I'm gonna leave it at 19 hours that we had to go. Okay. In the preview, you can see we've got just a square because obviously we left it at 90 degrees. Now you can actually set it to the positive Negative. So if we go, let's say 45 degrees, so it's gonna come down, Say, Okay, you can see we've got a little wall here, Um, from the 45 degrees. And obviously, if we increase, let's say our X 300 say Okay, eventually you can get quite close. But eventually, what happened? Let me go Even bigger. You'll see we start getting another cut out again. So that is something to keep in mind when you're working with the grease to the negative. And then obviously if you go positive, So let's go 125 degrees. Then we're gonna get the shape similar to this preview. So you're gonna have to obviously adjust this going to what you're looking for in your actual shape. So if you have measurements and worked out beforehand, it is great. And you're simply just filming your workout, your shape. And then, um, you can throw that straight into your cut. Now, I'm just gonna leave all of mine the same as this. So leave the name the same manual quantity one I like the review say add and then add this shape to our actual design. No, this is, unfortunately a little bit large. I'd like to make it a little bit smaller, but well, maybe do that later after the video, but yeah, otherwise, that is eight and RP 46. Like I said, it's just something to your mind. If you're going to a degree to the bottom, make sure you're with is not too much. Otherwise you're gonna get a little cut out, which afterwards, I mean, it's not a problem. You can just chuck it, but it's always nicer to work and eat. But otherwise yeah, if we head here to softwaretraining.co.za I'll see you guys will notice we've got a variety of different Softwares. We do cover. And you can also isolate your search on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go. Yeah, request the training video filling the meaning form. And then we'll do our basically and make that for you. But otherwise thanks, guys, for watching and cheers.
