FabriCAM Software Flat Parts P44 Rounded Rectangle (Part 20) Step by Step Video Tutorial

Now that we are busy with Rectangles and its variations, it is only fitting that we cover the rounded one as well.

The rounded Rectangle shape is great for when you looking to have a smoother version of the Rectangle.

This video is part of a Mini-Series.
Next video covers P46 Rectangle with Degree Cut Out.
Previous video covered Rectangle with Rounded Edges.

Video Transcript

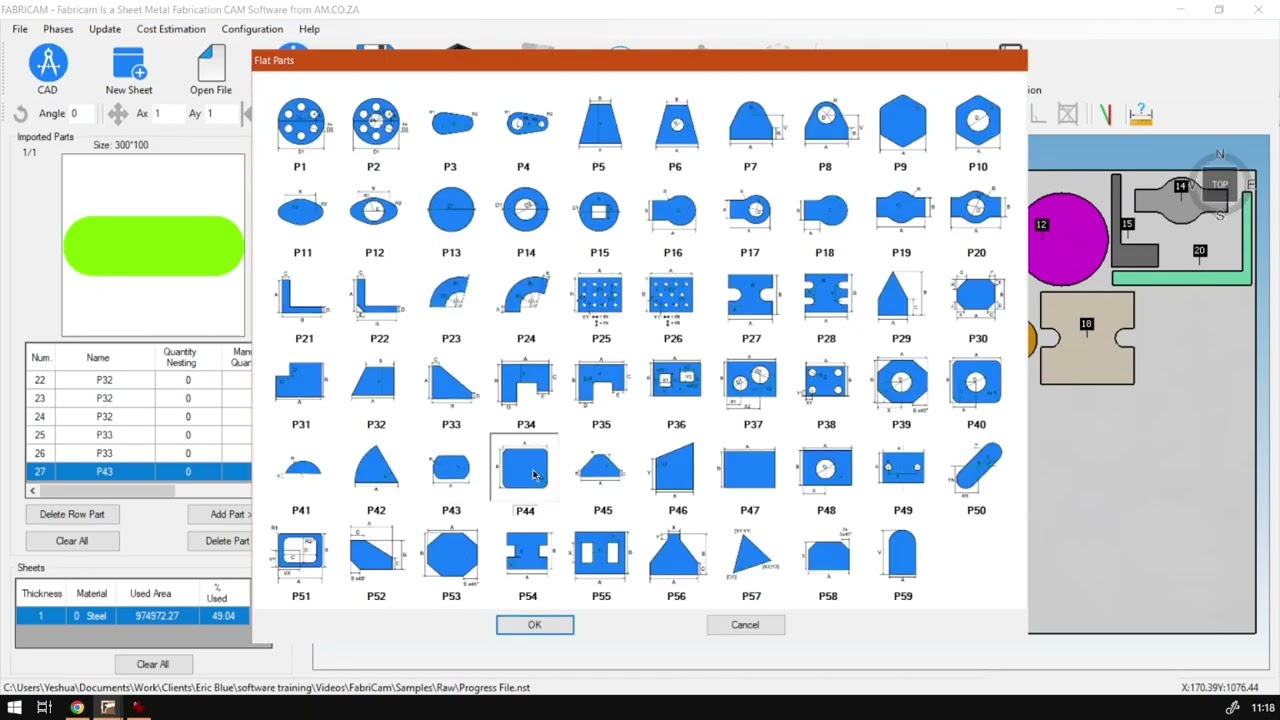

the guys in today's video, we're gonna be looking at part 40 for or part number 40 for from our flat parts the intermediate ones. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za. We make sure needs to watch the problem solving videos, and we also have daily after its otherwise back to the programme here. So now today's part is gonna be, um, continuation of rectangle. Now it is very similar to part 43 which we just covered. But instead of just having rounded edges, it's gonna get rounded corners. So if you work most victor programmes, you will understand that this is a kind of a variation on our rectangle. So most programmes will give you a little handles you can choose. So after you make a rectangle, you can just rounding the corners as much as you want. Yeah, so, otherwise, if we go to the part, we go to p 40 for for part 40 For if I zoom in on a little preview, we'll see, we get, uh, three little options. So we've got a for the width B for the height and then we've got our or four times are so basically the rounding four of them. So it's obviously the four corners. So now I'm gonna set. So let's set the with to about 300 gonna set the height to 200 just to give a consistent with most of our shapes in here. Obviously, with the exception of a few and then the rounding, I'm gonna go about 50. And obviously this is going to vary depending on your actual needs of your design. This is just for the sake of the demo. Then I'm gonna leave the name the same. Okay, so we can see a little preview and then we can see a nice little preview here. Obviously some things to keep in mind with the shape of your surroundings. If you set them too high that it won't finalise the job so you won't be able to do anything with that. Then obviously also, the higher it goes. Eventually these corners were around into each other, which will make it look like part 33. So you can say that in many ways also advanced version of part 33 so you can actually create that shape in many ways with the shape. But this one can also have flat edges on your left and your right, which is convenient. So I'm just gonna give this shape the same as what it is here. I'm gonna put it quantities one ad and then we add this to our canvas and there we go. Now we've got a rectangle with rounded corners. So, like I mentioned in the beginning with this pretty much advanced version of a rectangle, it's not bad Advanced, but only difference is that around is your corners. Yeah, otherwise, that is it on part 44. And then, um, if we had to go here to softwaretraining.co.za z. You guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top, right? If you do not, however, find the training videos, you're looking forward to some bigger. Yeah, requested training video fell in the mini form. And then we'll do our best to try and make that for you, but otherwise thanks, guys, for watching and cheers
