FabriCAM Software P21 Two Rectangles Combined (Part 12) Step by Step Video Tutorial

fabricam two rectangles combined

For our next shape that we will be covering it is a combination of two different rectangles.

When you using the part P21, you are able to make the classic L shape with loads of variations.

This video is part of a Mini-Series.
Next video covers P23 Pie with Circle Cut Out.
Previous video covered 2 Rectangles and Circle Combo P19.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

https://www.youtube.com/c/SoftwareTraining

Video Transcript

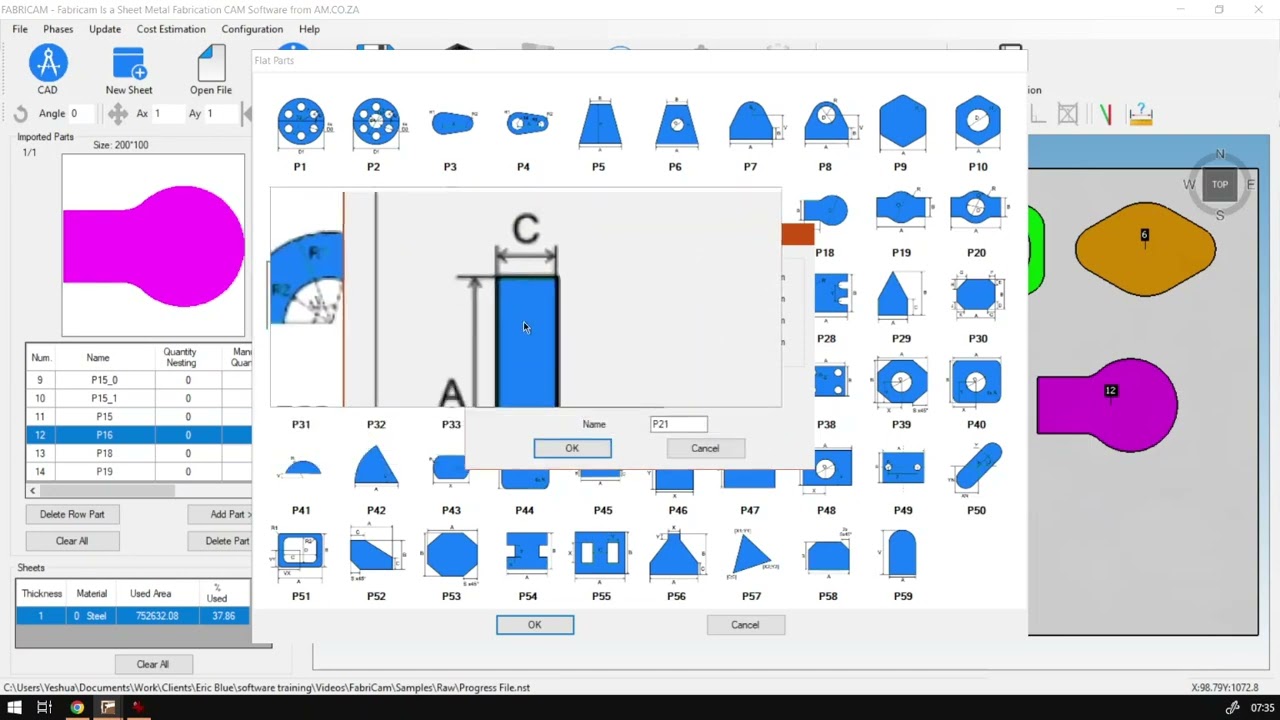

guys. Next up in our intermediate part miniseries, we're gonna be looking at part 21 from our flat part. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure needs to watch problem solving videos, so we also have daily updates. Otherwise, back in the programme here now, Part 21 it's, uh, shape we have not covered before, not even in our basic one. So this is gonna be the first time we get introduced to this shape. Now it is ultimately a combination of two different rectangles. And the nice thing about this part, if I go to it, got to be 21 is that we can set each rectangle individually, which is pretty nice. So if we go to the preview, we can see we can set the height of the top one. You can say and with and the bottom one, you can also set the width and the height. So let's just end some values here. I'm gonna make the height, let's say about 200 and make its worth, which will be C. Let's make this about a skinny long thing to about 20 in the bottom one. I'm gonna make 100. I'm gonna make it a bit broader. So maybe about your school. About 50. Leave the part, name the same and then say Okay. See you. See, we've got a nice little all there for I don't know. I'm not gonna use the joke in any case, so we go manual quantity, make this one say at and then let's quickly added to our canvas. We go. Now, we've got a nice little our where I'm gonna start filling up this space in case we run out of space later on. So once again, obviously it does not have to be an l like I made it. You can, uh, make this obviously according to what you needed for, but yeah, that is it on part 21. If we head here to softwaretraining.co.za I'll see you guys will notice what a variety of different Softwares will recover. And you can also isolate your search on top, right? If you do not, however, find the training videos you're looking forward to some bigger. Yeah, request the training video filling the form. And then we'll do our basic and make that for you. But otherwise thank you guys for watching and just
