FabriCAM Software P23 Pie with Circle Cut Out (Part 13) Step by Step Video Tutorial

fabricam pie circle cut out

Next up on our list of Intermediate Flat Parts will be P23, this part is a bit of a mix of a Circle and Pie Shape.

The great thing about the Flat Part P23 is that you are also able to create half semi-circle rings with it.

This video is part of a Mini-Series.
Next video covers Rectangle with two Cut Outs.
Previous video covered P21 Two Rectangles Combined.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

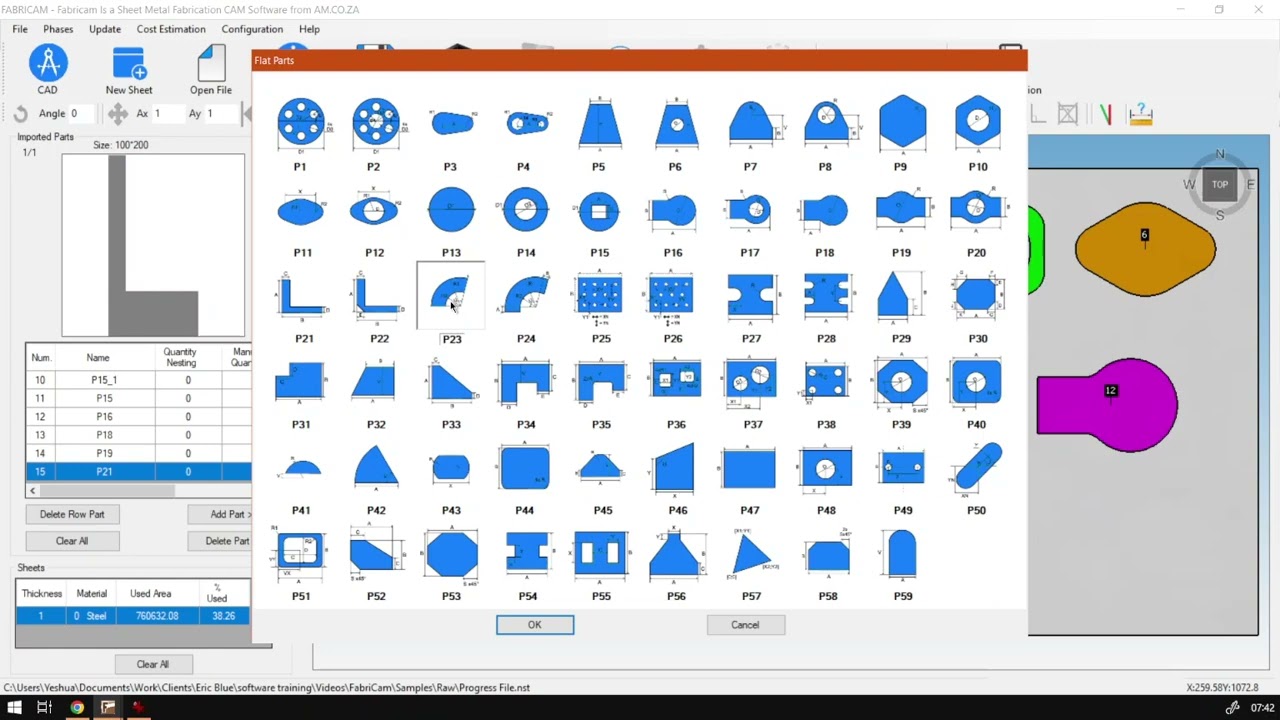

guys in today's video, we're gonna be looking at Part 23 from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za today. We make sure we need to watch problem solving videos, and we also have daily updates that was back in the programme here. Now Part 23 is in many ways, um also a new shape. Like uh 21 was now with this shape, it's gonna be, I guess, similar to the pie shape where we covered in our basic section. But you can set the outer and in a distance this time so you can create a bit more of like, uh, I don't know what you call it a shell or some sort, But anyways, if we go to the flat part here to just go cheque it out so we go to p 23. Open this up. We can see we've got three different values to choose from. Now we've got our one which we can see this arrow points all the way to the outside ring Got are two which is the inside ring and then we got you, which is the degree amount. So on the side, there are one or two and are new, Obviously, something to keep in mind. Our two cannot be larger than r one or R one smaller than to. So let's just set this quick. I'm gonna make this about 2. 50. Just make what, this one about 1 80 then let's go About 90. Uh, I got 95 just so we don't take a full round number p 23. I'm gonna leave it at that. Let's call your preview it. See what looks like. Here we go. We've got a nice little shell coming along here. And like I said, it is a combination. You can almost have the pie, and then they basically use a circle to do a cut out on the inside. Yeah, so let's go add one. So add and then we add this to our actual canvas, leave it all fit in there. Yeah, So let's rearrange this a bit. And they would put the swelling year just to starch making some space. Yeah. So that is it on part 23 I think I said, and like I said it is basically a combination of a pie and a circle with a circle doing a cut out in the pie. You can set the degree amount, but yeah, otherwise that is it on it. If we had here to softwaretraining.co.za You guys will notice we've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos are looking forward to something. So yeah, requested training video filling the uniform and then we'll do a basic try and make that for you. But otherwise thanks, guys, for watching and just, uh
