FabriCAM Software Reduce Corner Cutting Speed (Part 2) Step by Step Video Tutorial

Now if you are looking at doing some more cleaner corner cutting, then adjusting the cutting speed will be of great help.

This video is part of a Mini-Series that covers the Advanced Machine Configuration.

Next video covers Machine – Reduce Torch Height.
Previous video covered Machine – CAD Markings.

Video Transcript

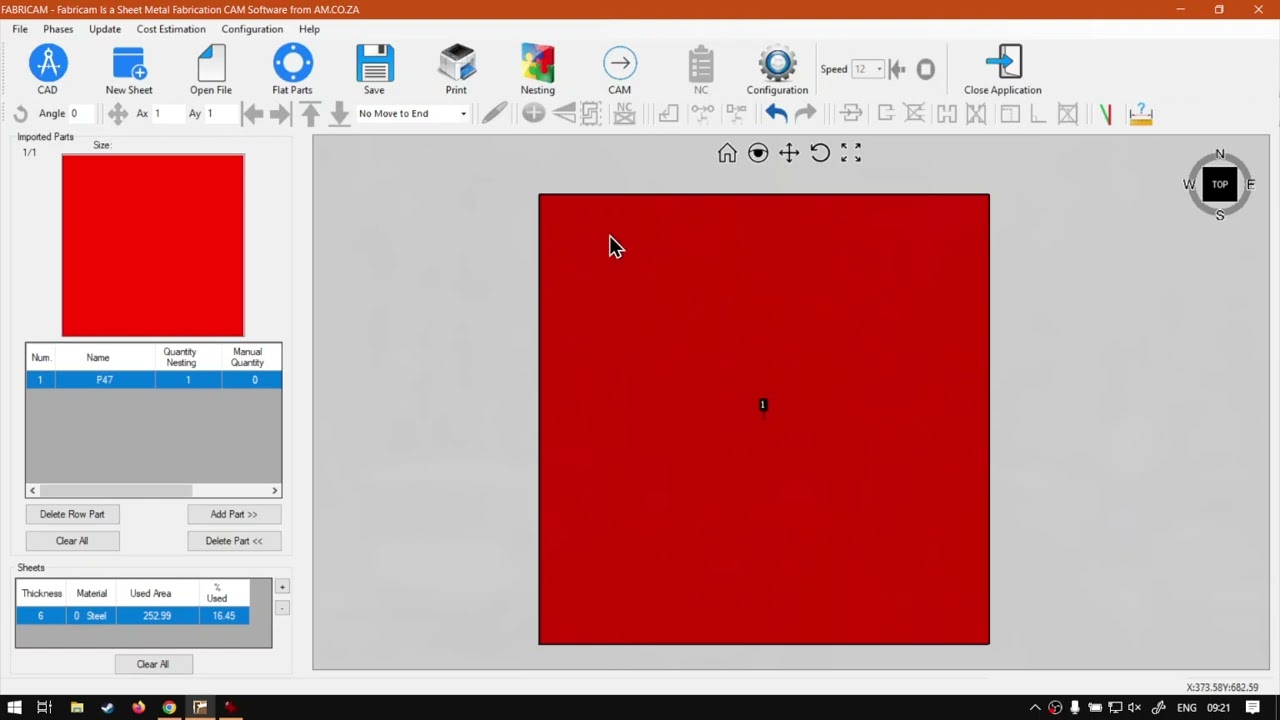

Alright, guys, In today's video, we're gonna be looking at how to reduce our actual torches or cutting speed when it comes to the corners. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. And we make short and easy to watch problem solving videos and we also have daily updates. Otherwise we're back into the programme here. So now I currently just have a basic sheet metal sheet with a, uh, square on the sheet that would be cutting. So now this first setting or reducing the speed, what will happen is when it cuts. When it gets close to the corner, it will slow down, finish the corner and then speed up again by the corner, slow down, finish the corner and speed up. So some of this is gonna help to get a bit more clearer. Finish not such messy corners. Now, in order to set that setting, we wanna go here to configuration. Then we're gonna go to machines. So this will be our third tab from our our settings. And then if we go down, we will find, um at the bottom of your cutting technology table. We want to open that and then from this area, we've got a few different settings, so we can set. So first of all, we're gonna be looking at, like I said, reducing the speed in, uh, for the corners. So we've got here reduced speed in vertices. So now this is gonna use it to, uh, just the corner of the speed. So if we go activate, we will see, we have a few different settings here. We've got the speed so you can see it goes to 75% and then we've got the distance before vertices distance after So basically before the corner be three mil after three mil when it speeds up again, so those values are quite important to be aware of. Then you can simply say OK or apply. And OK, I'm gonna say again, apply and OK, and then that is adjusted. But just keep in mind that you have adjusted it. So if in future your corners aren't acting correctly, then just first go make sure if that setting is on or not. Now, next up in our next video, we're gonna be looking at another nice little feature for the torch height. And these two normal, uh, go hand in hand with each other. But we will save that for another video, but otherwise in the meanwhile, if we head here to softwaretraining.co.za and you guys will notice we've got a variety of different Softwares we do cover, and you can also isolate your search on the top or right. If you do not, however, find the training videos you're looking for, just simply go. Yeah, request the training video, fill in the mini form and then we'll do our best to try and make that for you. But otherwise thanks, guys for watching and cheers.
