FabriCAM Software P28 Advanced Circle Cut Outs (Part 12) Step by Step Video Tutorial

fabricam advanced circle cut outs p28

After the eleven options Flat Part that we just covered this Flat Part almost feels like a basic part.

The P28 Flat Part you might also remember its more simple version which we covered some time ago.

This video is part of a Mini-Series.
Next video covers P30 Advanced Rectangle Chamfering.
Previous video covered P26 Advanced 11 Options Part.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

https://www.youtube.com/c/SoftwareTraining

Video Transcript

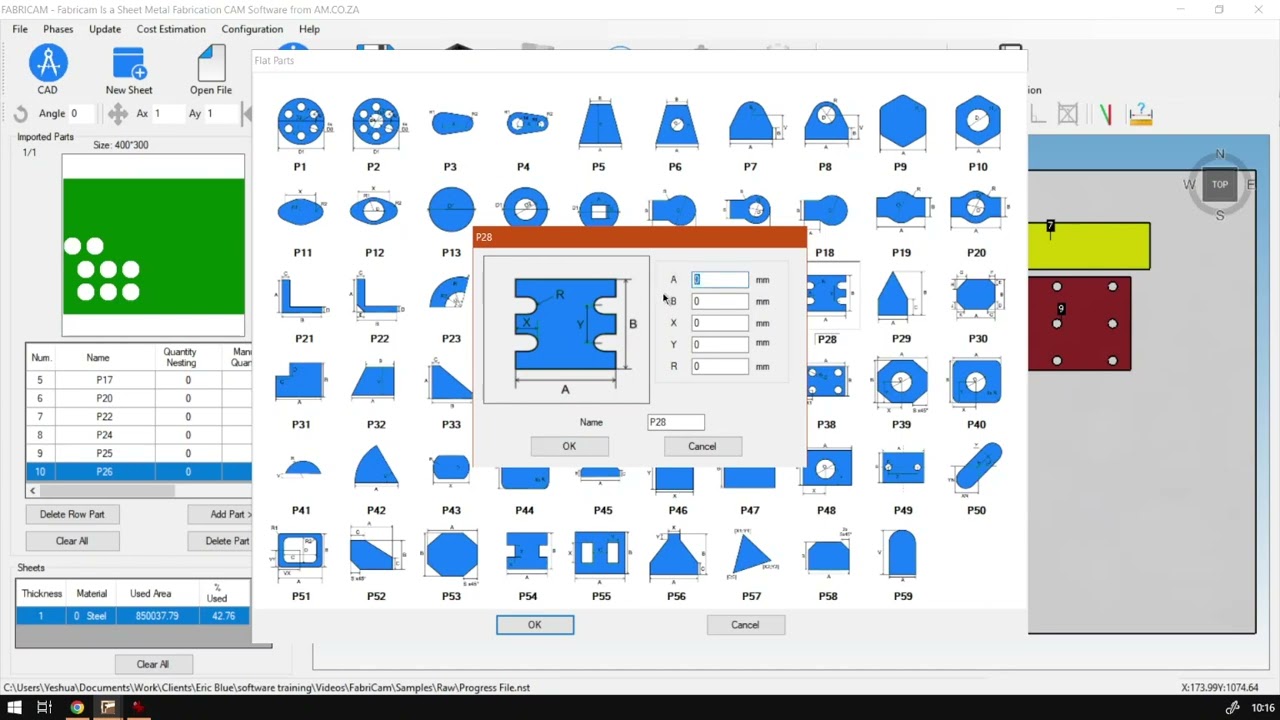

Hi guys. In today's video, we're gonna be looking at part number 28 from our advanced parts or advanced flat parts. But before that, let's have a quick intro offers, so today's video can be found on softwaretraining.co.za We make sure needs to watch problem solving videos. We also have daily updates. It's always weird back into the programme here. Now, once again, it's going to be one of the shapes that you guys recognise from a previous, um, intermediate shape. But then what's gonna happen? We're gonna add one extra road, which makes the complexity a little bit higher, but nothing compared to the last shape we just looked at. So if we go to flat part here, we're gonna go to P 28 for ad that we can see now instead of one cut away on each side. We've got to where this shape there is something to keep in mind. Otherwise, you can get quite a messy product, but we'll cover that now. So first, let's set a few things, So I'm gonna set this to about 300 said this 1 400 and then what we do here is we've got an X and A y. So the X will be how far in this, uh, cut out is gonna be and why it's going to be how far they spaced from each other. Now, this will obviously be relevant or matter quite a lot once you've set your rounding because surrounding in many ways you can almost say is gonna be the size of this cut out the height wise. So let's set that first, I'm gonna do that about 50 and then let's do the X. So there's two X, maybe about 100 in. So then I will mean we've got about 100 centred now. Next thing I want to do is to Why now? If I do the why the same as the rounding 50 we'll see. We start getting these weird cutouts, which can be quite a mess. But obviously, if you're looking for this type of shape, this is how you'll be doing it. But in general, you want to make sure that your wife is slightly quite a bit larger than your are. So if we go 100 you will see here we have the exact line up because it's double the actual around this. What I wanna do is I'll set this to maybe 1 50. Look at that. And then we go, It looks a bit better. And then you'll obviously adjust this to the measurements you've made. But just so you kind of wanna understand, just watch out that you don't set your Y too little or too low compared to your rounding, then otherwise, we're gonna go manual quantities. One ad and then we add this to our actual canvas. And there we go. I'm not sure where we're gonna place this yet. Strike. Find it somewhere where it's not too much in the way. There we go. That is part 28 or part number 28 from my advance parts are violence. Parts are definitely getting less. So, um, yeah, soon we'll be out of parts to cover. Otherwise, if we had yet to softwaretraining.co.za hey'll see you guys will notice. We've got a variety of different Softwares we do cover. And you can also isolate your search on the top. Right? If you do not however, find the training videos you're looking forward to simply go here, request the training video will in the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
