FabriCAM Software Practical Exercise two for CAD Arc (Part 6) Step by Step Video Tutorial

fabricam cad arc exercise

Now in this second practical exercise we going to make things a little bit more challenging.

This will be a great opportunity to put to practice two key components that we have learned.

This video is part of a Mini-Series.
Next video covers CAD Arc – Practical 3.
Previous video covered CAD Arc – Practical 1.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

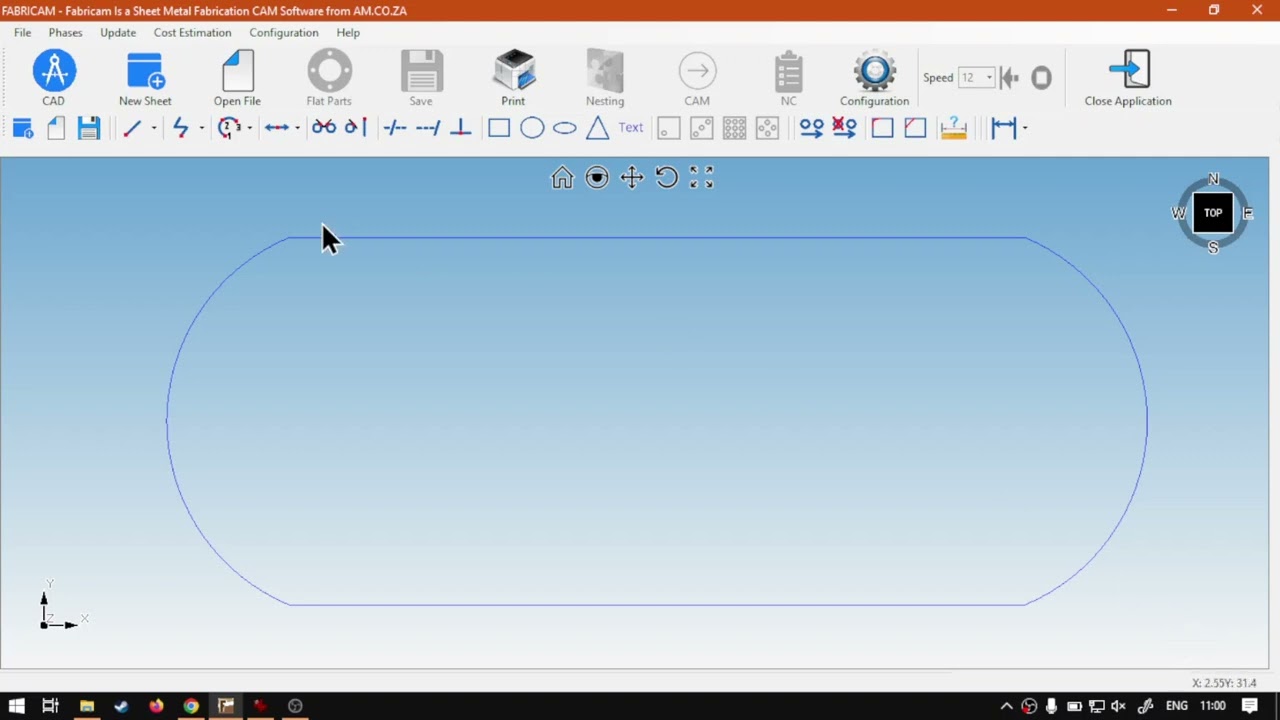

are you guys in today's video? We're going to be looking at our cat arc, and this will be a practical for it. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure an easy to watch problem solving videos. We also have daily updates. Otherwise, if we head into the programme here now, in the previous video, we looked at another practical How to use the curvature is now in today's video, we're gonna be looking at something a little bit more advanced. And that is how to make this, um, a rectangle with rounded edges. So I'm gonna leave you guys up to do it. How you get there, you can choose yourself. I'm not gonna say you have to use a B and C uh, so I'm gonna let you guys try that, and then afterwards, I will show you the process I took to get this result but otherwise posed to give it a try. And if you don't come right just on pause and I'll show you Okay, so if you've tried it or haven't gone right, I'm quickly gonna run through the process I took. So you guys can see and get you miss something. Or maybe you just want to see another process other than the one YouTube. So, what I'm gonna do, I'm gonna delete this. I'm gonna start off by adding some baselines. So the first one, I'm gonna make it 60 wide. Uh, and everything else will do the same. And then I'm gonna add another line. Also gonna make it 60. But this time I'm gonna lift it half the, um, with high. So I'm gonna make a 30 up. So we've got another enclosing box. Then what I want to do is put a budget. I wanna put a guide in the middle and then with a guy, I'm just gonna go 10 more, So I'm gonna make this one minus 10. I mean, sorry. Minus 10 more on each side, minus 10 and 70. Then what? I'm typing here. 72 the right. Then the height. I'm gonna make it half of 30 so they will be 15 and 15. Say okay. And then we've got our guide there. So now what I'm gonna do is I'm gonna go to our curve or arc tool, I say. And then I'm gonna go to the ark three points and simply tie the dot So I'm gonna go to the bottom first click on that middle guide, then the top line gotta first arc. And now important. Remember, do not go from the bottom up. Otherwise we're gonna get inside curve. We wanna now go from the top down. So we're gonna go top middle bottom. We've got a curve. I'm gonna select the middle. And just to remove that with the delete key. There you go. We've got that rectangle with a rounded edges. Now, obviously, depending on that middle guide, you can round this out even more. But keep in mind, make that guy too long and it's gonna start bulging out by the side. So I'm gonna start getting these circles on the side of your Celinda. But yeah, otherwise, that is it on the practical hope, but help you guys. And I hope that challenged you at least a little bit. Yeah, otherwise, if we had year to softwaretraining.co.za. You guys will notice we've got a variety of different software as we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward. Just simply go here, request the training video well in the uniform, and then we'll do our basic try and make that for you. But otherwise thanks guys for watching and cheers.
