FabriCAM Software CAD Dimension Radial Measurement (Part 3) Step by Step Video Tutorial

fabricam cad dimension radial measurement

Now that we have looked at the two points Dimension tools, lets have a look at the more circular ones.

From the Circular Dimension tools available, we will be looking at the first one which will be the Radial tool option.

This video is part of a Mini-Series.
Next video covers CAD Dimension – Diametral.
Previous video covered CAD Dimension – Aligned.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

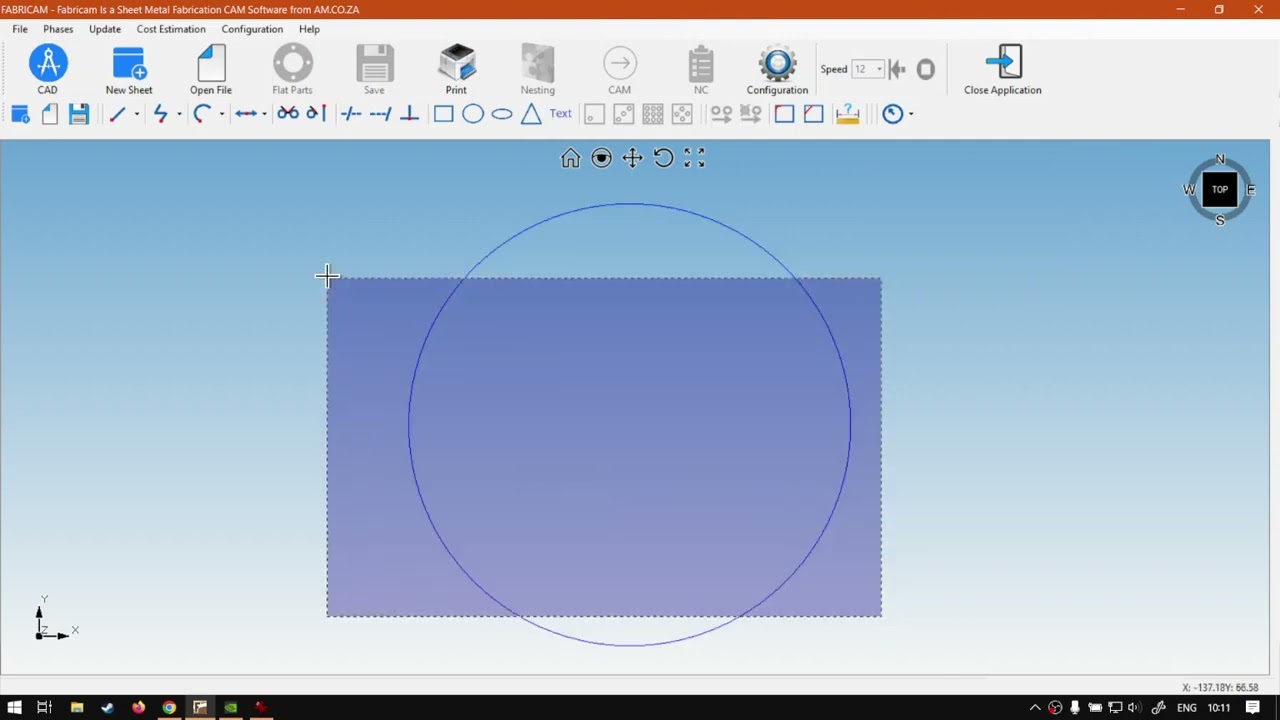

Hi guys. In today's video, we're gonna be looking at how to use the CAS radial dimension tool. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. We make short and easy to watch problem solving videos, and we also have daily updates. Otherwise, we into the, um, actual programme here. I'm gonna quickly add a circle here, make it 200 just to simplify the actual a tool for us gonna add it to the centre. And there we go. We've got a tool on the previous videos. We looked at some of these other settings for seeing the dimensions and having a nice preview of it. In today's video, we're gonna be looking at the radial dimension, so this will pretty much be from the centre of this outputs. Now, it is important with this tool to first select your shape, so you can either just click on it or drag the selection box onto it. Then I'm gonna go select the radial dimension and then next up, I want to click on an edge where I want it to be displayed. So this is gonna take it from the centre to wherever I click. So let me just go to the top, right click there and then we can see it takes it to that point where I've clicked and then we've got a nice little radial. 100. So we know it's 100 from the centre point all around, but yeah, otherwise that is it on the radial dimension. Rather straightforward. Um, but a very handy tool nonetheless. Well, otherwise, before we head on to the next video, if we go here to softwaretraining.co.za. You guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top or right. If you do not, however, find the training videos you're looking for, just simply go. Yeah, request the training video, fill in the mini form, and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers
