FabriCAM Software P30 Advanced Rectangle Chamfering (Part 13) Step by Step Video Tutorial

With the advanced Flat Part P30 we will be looking at some complex Chamfering capabilities.

Normally most of the Intermediate type Flat Parts will do their rounding and Chamfering as one setting, but not with P30.

This video is part of a Mini-Series.
Next video covers P34 Advanced Rectangles Combo.
Previous video covered P28 Advanced Circle Cut Outs.

Video Transcript

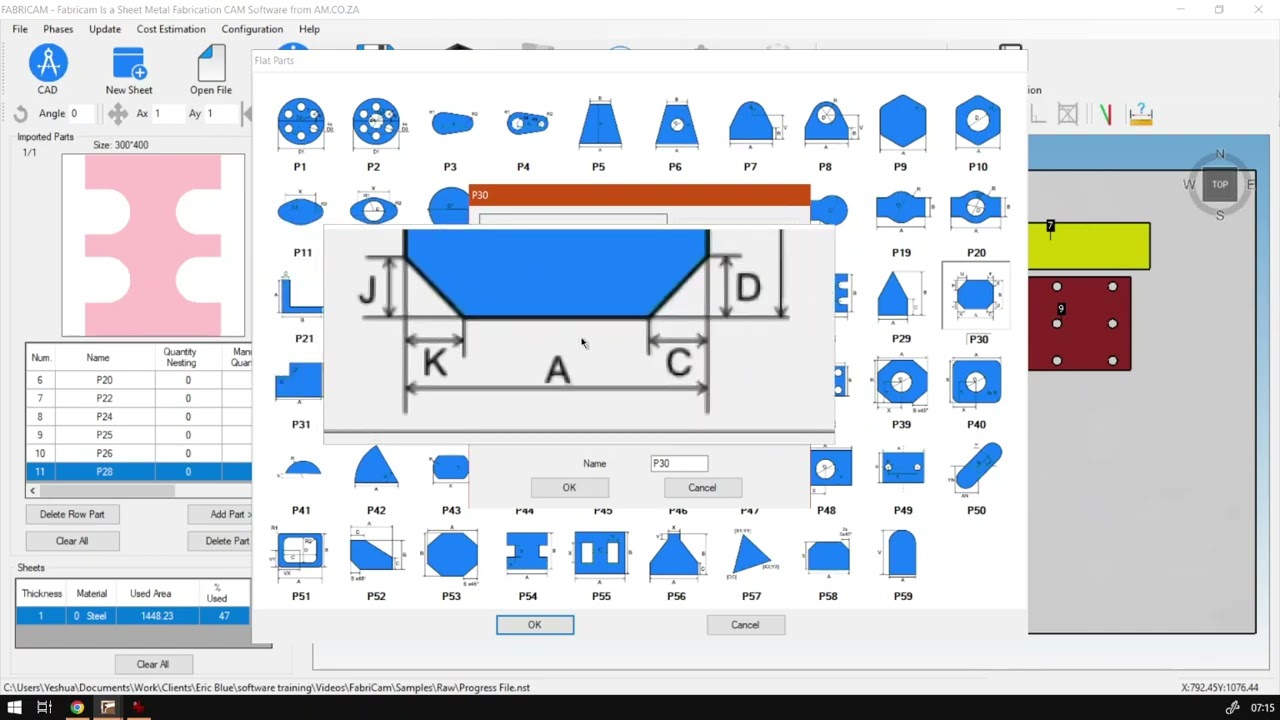

How do you guys in today's video, we're gonna be looking at part number 30 from our advanced flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za. We make sure to watch problem solving videos and we also have daily updates. Otherwise, we're back into the programme here and now the part we're gonna be looking at today we've kind of covered also a more, um, intermediate version of it. But in today's video, we'll be able to sham for every single corner. Um, corner should I say individually. So if we go to the party, I'm gonna go to flat parts and we look for P 30 which is over here. And as you guys can see here, p 53 is the more intermediate version which we did cover and it was my together, it seems to me, and then if we go here to be 30 you guys can see it gets quite a bit more complex, especially if you look here on the right. It's quite a few different settings now. The actual shape itself is not that complicated. It's just what they've done is they've allowed you to adjust every single corner, which is four of them individually, so you can adjust the height and width of each, uh, tampering for this shape. So let's just add a quick one. I'm gonna go 300. This is for the A. So it's the worth the hike be Make that 200 then what I'm gonna do just for the sake of the tutorial, I'm going to keep all these corners the same. Or maybe what we can do is to make the bottom one separate to the top ones. So let's make the height, um, let's see. So waiting for D, which is the height for Zoom in here. So D and J want to make the same and k N. C. So let's go to Dee. Let's make this a bit bigger, so I'm gonna go 80. And then I said, Jay, make that 80 now K N. C. So let's go to K over here. But then I'm going to be quite small and then see also 10. The next time we want to do is set top ones, so we've got H E and G and F. So h and e, we're gonna set the same. So let's go to H make this. I'm going around these, like, nice angle. So h e m n a for G n f. It's quickly preview that we can see. We've got an interesting shape coming along there. Obviously, I'm doing everything currently mirrored. You can say so. Giving left. Same right where the power of the shape is. All this part. He said you can do every single corner, Um, the way you want it to, but yeah, otherwise that is it on par 30. I'm just gonna add one quick to our cutting board. Just so we have it on here, I think that's gonna fit in anywhere there. So squeeze it up here. Cool. Here we go. Otherwise, if we head here to softwaretraining.co.za hey'll see your you guys will notice you've got a variety of different Softwares we do cover. And you can also isolate your search on the top. Right? If you do not however, find the training videos you're looking forward to simply go Yeah, requested training video filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers
