FabriCAM Software Rectangle with two Cut Outs (Part 14) Step by Step Video Tutorial

fabricam rectangle two cut outs

The next part that we will be having a look at is the Part P27, Family of the Rectangle shape.

With this part you going to have four different options that you are able to set to make your new part.

This video is part of a Mini-Series.
Next video covers P29 House Shape.
Previous video covered P23 Pie with Circle Cut Out.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

https://www.youtube.com/c/SoftwareTraining

Video Transcript

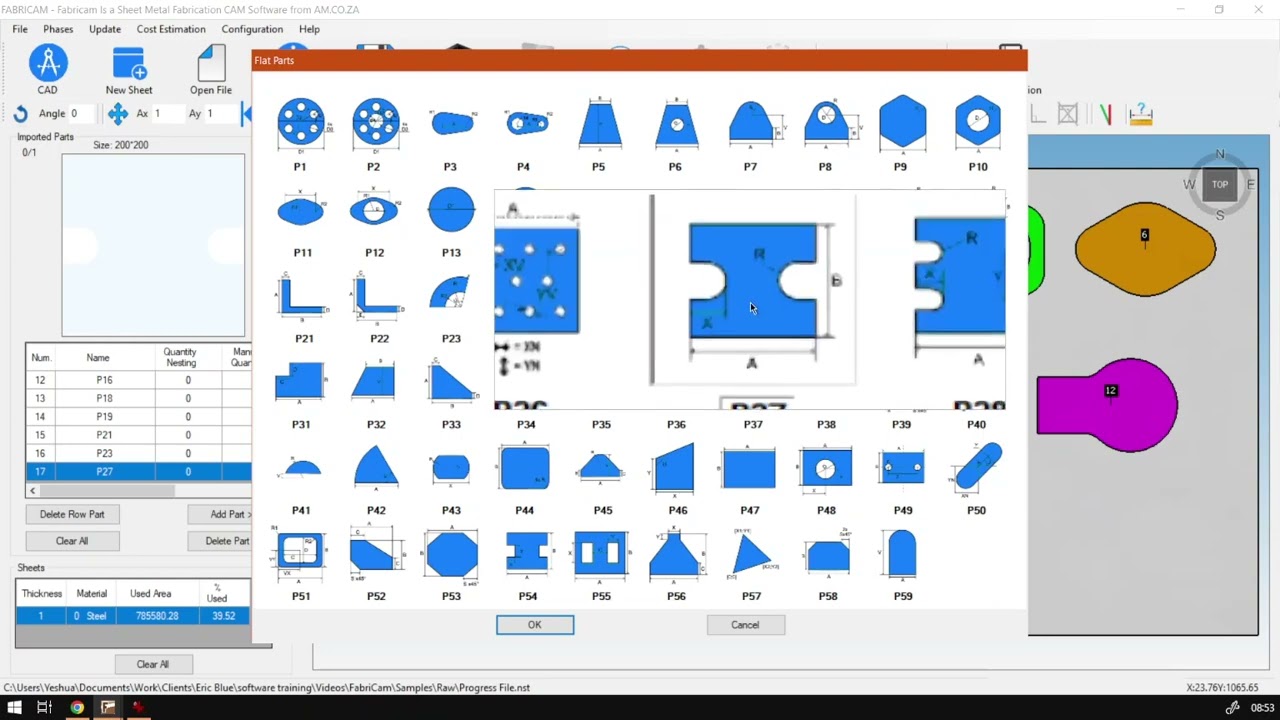

All right, guys, in today's video, we're gonna be looking at 27 from our flat parts, the intermediate ones. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za We make sure that easy to watch problem solving videos, and we also have daily updates always went back into the programme here. Now today's shape p 27. It's gonna be a bit of a mix of a rectangle with two p 20 or 59 cutouts in it. So we here to the flat parts and then if we see this p 59 If we had to rotate onto its side, then that's pretty much what you're getting with 27 so we can see here. We've got a little rectangle with two cutouts both on the left and the right. If we open this from the actual preview here, we can see we've got four different settings you can set. We can set the with height and the X and R, which is the left cut out and the right cut out. So let's just set this quick so I'm gonna go a and make this 200 He was going to keep it a square 200 x about 40 and are Maybe it's varied up, so we get 20 so it's not exactly the same. Leave the name of the game and have a quick preview. So, as you can see here, it's just a slight variation size. But you kind of get the idea of where you can go with this. You can actually make it wider if you want or taller. But I'm gonna leave this just the same for the sake of the sample. And I'm gonna go manual quality one like before we say add. And then we add this shape to our actual cut out. So there you go. We've got our B 27 covered. It is a bit of a rectangle and p 59 mix, you can say and yeah, so that is it on the p 27. We hate you too softwaretraining.co.za will see that today you guys will notice We've got a variety of different Softwares you to cover, and you can also isolate. You're searching on top of right. You're looking for something specific. If you do not find the training videos you're looking for, however, just go, Yeah, requested training, video filling their uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
