FabriCAM Software Intermediate Flat Part for Shape P15 (Part 8) Step by Step Video Tutorial

Our next part that we will be covering is a combination that you do not see to often.

This part when it comes to making the inner larger then the outer it does the same thing that most of these combo shapes do.

This video is part of a Mini-Series.
Next video covers P16 Squire and Circle Combo.
Previous video covered Intermediate Flat Part P12.

Video Transcript

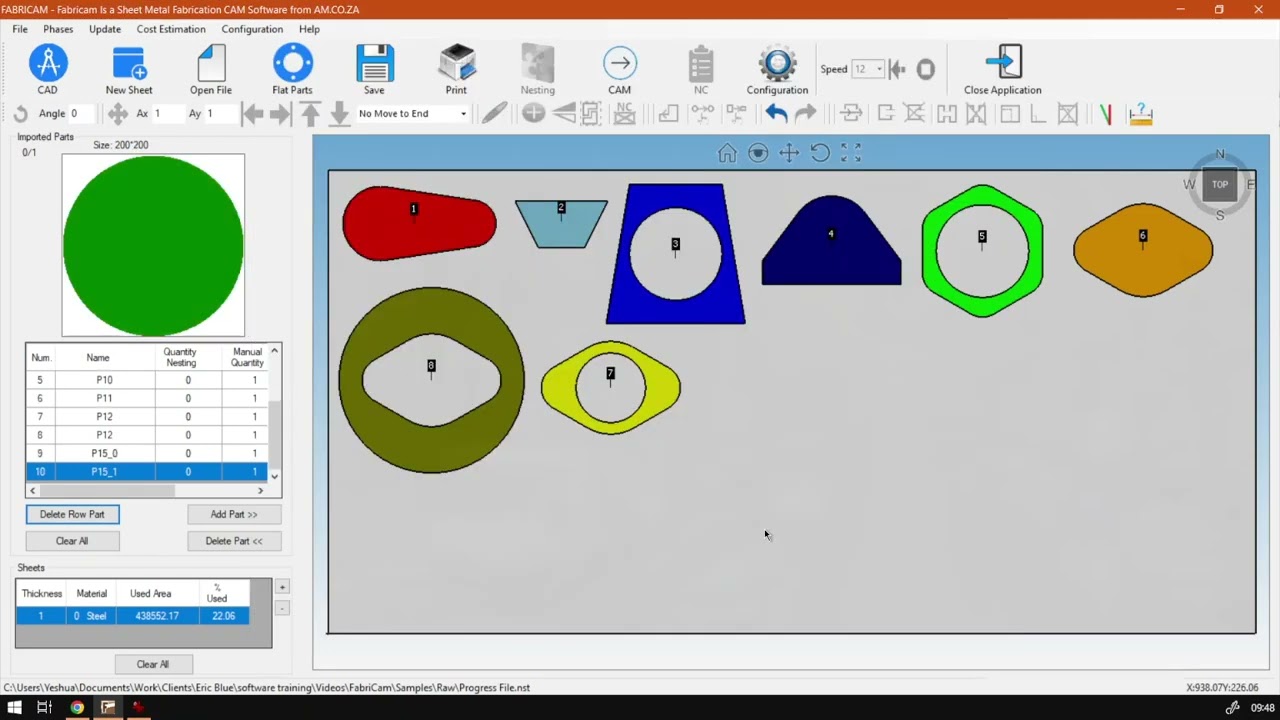

All right, guys, In today's video, we're gonna be looking at part number 15 from our intermediate parts, and this will be for our flat parts feature. But before that, it's a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure we need you to watch problem solving videos, and we also have daily updates otherwise, back to the programme here. So now, like I said or mentioned in today's video, we're looking at part 15 or part number 15, and, uh, this part works similar to the previous ones we looked at where it's not quite the same as the one we looked right before this. So now if we go to the parts of flat parts, go to P 15, located selected, and then, uh, you guys can see now we've got the little diagram here, so we've got D or outer diameter of the circle, but A and B So this is where we feel square inside rectangle. What, depending on the values to set it now, Like I mentioned just now, uh, nice part of this is you can make a rectangle or square, so Let's say we make this 100 this 1 100 we go. Okay, Let's see, you've got a nice little square, or we can change. These ones. Make it something a bit more extreme. So you just noted and we see Now we've got something. A rectangle. So that is nice. Also, another thing to keep in mind is that obviously, uh, the D one measures the outer diameter. The furthest part of the circle with the cube measures the edges here. So also the first spot because the circles around you can have overlapping. So if we had to go, let's say we go try. Maybe 1 80. So you're thinking you're still fine here because you're within this 200? You say Okay, you can see now. Now we're grabbing, overlapping all the edges here, so that is something to keep in mind. So you're gonna have to find adjust it until you find this staying inside. Another thing also, to keep in mind, these values cannot be higher than the one. So if I got 201 201 would say, okay, we'll see, nothing happens and it goes back to this. You can, however, have it the same amount. But so I need to keep in mind here. Like I mentioned earlier, it works the same as previous shapes. We did. So we've got this shape. So if we say add, we'll see. Now. On our last year, we've added two different shapes, So it is broken it up for some two different shapes, and that's obviously not what you're looking for. So best way to go about it is just make sure these values all stay within each other. Like this 1, 200. And we said this one, maybe two. It was at 1 50. Look. Good. 1 50. You leave the name the same preview I can. It's just not so I'm gonna go with this. About 60 others we go 1 21 20. Okay, there we go and say can't manual quantities one. Otherwise, we cannot add it to our canvas ad. And there you go. Now, I've got a shape with a cut out in the inside, So, uh, yeah, that's something to keep in mind. So just a quick recap. You obviously don't want to make the inner shape lodge in and out of shape. Or at least you can't. They can be the same size, but as soon as they start overlapping, then it's gonna break it for you into two different shapes. But yeah, otherwise, that is it. On Part 15. If we head year to softwaretraining.co.za z, you guys will notice we've got a variety of different Softwares we cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, requested training video filling the uniform. And then we'll do our basically and make that for you. But otherwise thanks guys, for watching and just
