# FabriCAM Software the Flat Parts Basic Shape P59 (Part 8) Step by Step Video Tutorial

fabricam basic shape p59

When it comes to the last shape on our basic parts list, we looking at a shape that could be a Semicircle and Rectangle mixed.

This video is part of a Mini-Series that covers all the basic flat parts that you can use as a base.

Next Mini-Series covers Intermediate Flat Parts.
Previous video covered FP P42 Pie.

### Training Video with Voice-Over ( Sounds ON ), Please Subscribe

#### Video Transcript

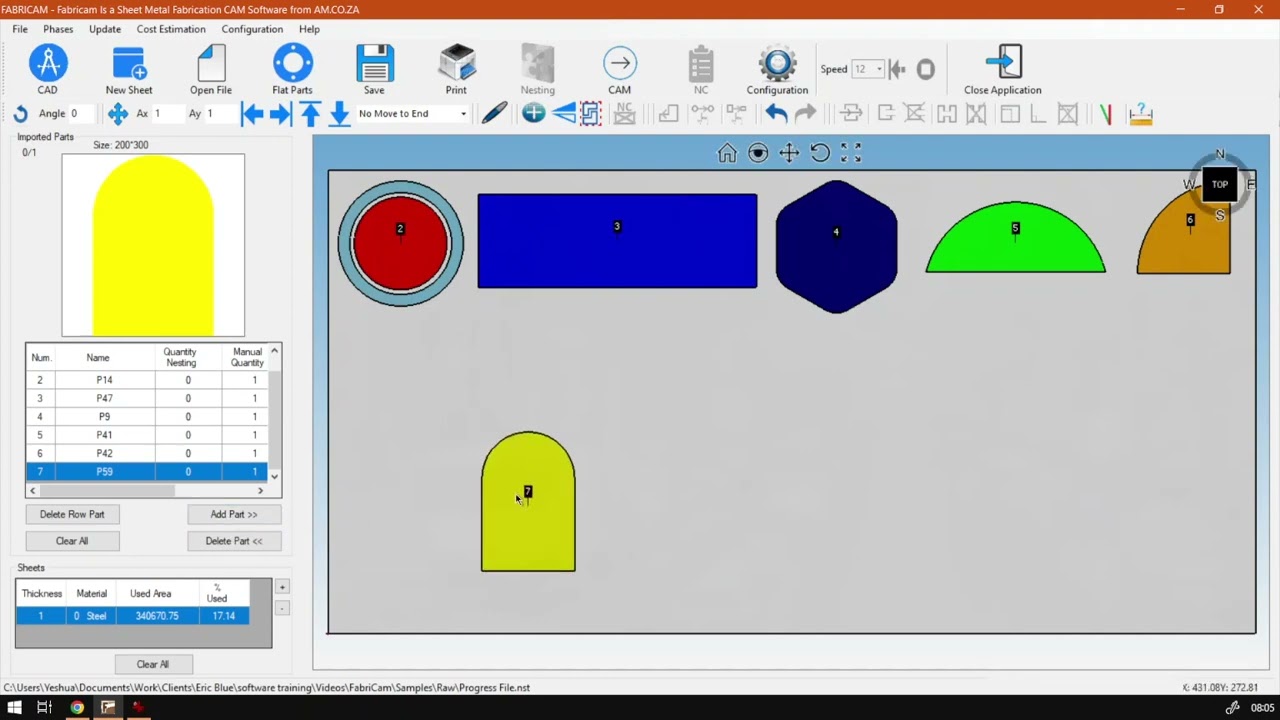

Hi there, guys. In today's video, we're gonna be looking at part 59 from our basic parts. It's a way for flat parts. And I think this shape is kind of like, uh, lengthened semicircle. I would say maybe a semicircle and the rectangle, uh, combined. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure that easy to watch problem solving videos and also have daily updates. Otherwise, we're back into the programme here. Um, it looks like this will be our seventh shape we are gonna be looking at. And I think this is also our last shape for the basic shapes. Then we get to finally move over to the intermediate shapes. Now, the intermediate shapes, we're gonna consist of about three, maybe four different values. But it's mostly the three values. Now I'm in order to add the last shape. We're gonna go here too flat parts, and it happens to be the last shape on our list as well. So this is p 59 as you guys can see there. Uh, if we open this, you will notice. We've got two values you have to choose from. In many ways, you can say it's the height is the height and a is the with. So if we adjust this, we go to a So let's make this 200 maybe make the height 300. Gonna just leave the name the same for the sake of these tutorials, so we can quickly reference back to the shapes they say, Okay, you have a preview. If I like it, gonna go with quantity one manual quantity had. And now we have our shape here to our actual worksheet. Click this to add it. Put the part in. Now we have all our basic shapes a circle ring, rectangle square, hexagon. We've got a semicircle, the form of pie you can say shape. And then the semi circle and rectangle mixed Now from basic shapes. This is definitely what you're gonna be using to construct a lot of your products. Perhaps unless you're gonna be working with custom things. And that is why I say perhaps now some of the more advanced shapes are gonna be looking at also say intermediate shapes. Next is a bit for a bit more complex type designs. So just a quick recap again on this shape, Just go to flat parts and go right to the bottom to the last shape called p 59. Otherwise, yeah, that is it on our basic shapes. Um, let's say how files always good practise is gonna go file. Save promptly. Where to? I'm gonna make sure my format is to nesting files, select the progress file and say Say, uh, father are safe being saved correctly. And then, uh, yeah, with that selected, we can move onto the next series. But before that, if we ate just softwaretraining.co.za. Guys will notice. We've got a variety of different Softwares we do cover, and you can also isolate Just search on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go here requests a training video, filling them any form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching until next one. Cheers
