FabriCAM Software Intermediate Flat Parts Shape P3 (Part 1) Step by Step Video Tutorial

From the Intermediate Flat Parts Available, the first one on our list will be Shape P3.

When it comes to the Intermediate shapes, we will be looking at parts with tree to four options to set.

This video is part of a Mini-Series.
Next video covers Intermediate P5 Trapezoid.

Video Transcript

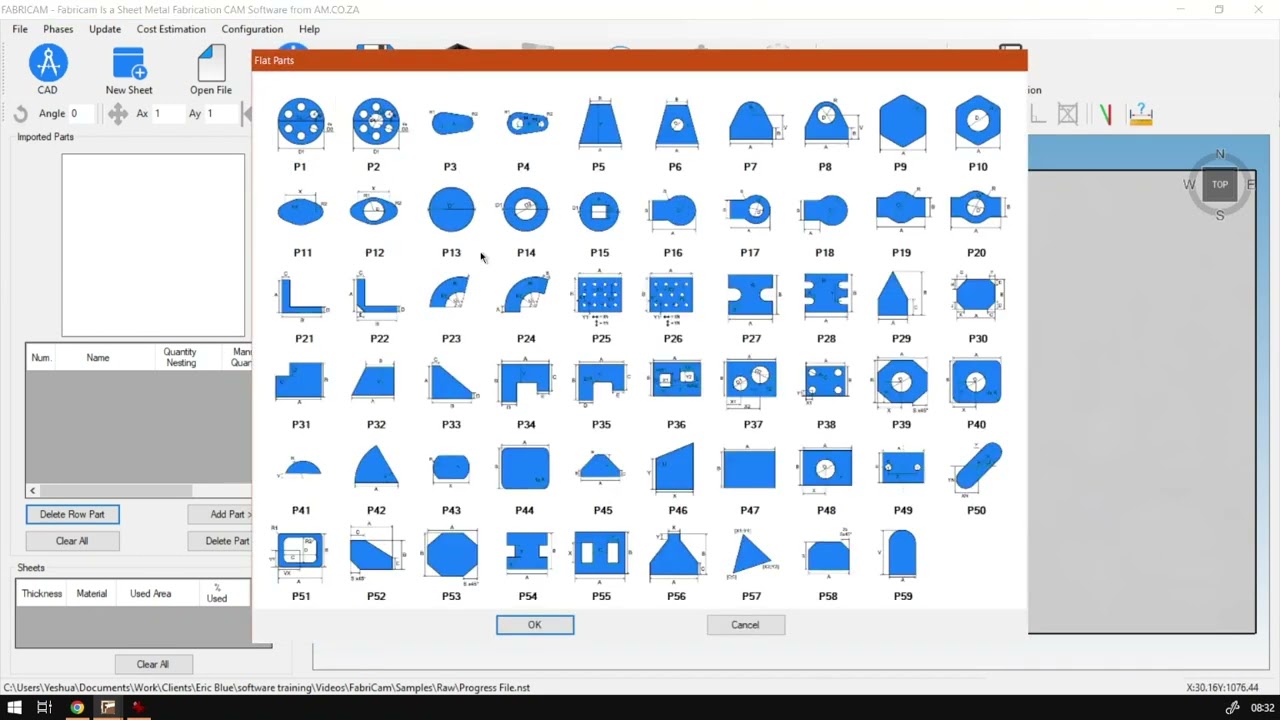

are you guys in today's video? We're gonna be looking at our first intermediate part or the flat parts, and this will be part three. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure we need to watch problem solving videos and we also daily updates. Otherwise, we go back to the programme here. Now we just wrapped up the basic parts. So now we're gonna be looking at some intermediate parts. But before that I just want to mention that the intermediate part is going to consist of about 3 to 4 different values. So it's not gonna cover the advance once yet, and also not custom custom shapes we're gonna be covering later. So this is still just working on the actual stock shapes that we have at hand that we can use as building blocks. But now, in any case, to start with intermediate shapes, we're gonna go to flat parts. Then we're gonna grab this p three. So if our openness zooming for you guys, you can see we've got three different values to choose from. We've got the our one x and R two. Same reviewing seven x R one R two. Now something to note, which is quite important about this shape is that are to always needs to be smaller than our one. It is bigger than our one. Then this won't work. X will be setting the with, and then our one would be obviously, uh, size of this curvature are two sides of this. So I'm gonna quickly go here and make it worth 200. Let's make the, um, are one, maybe 50 for now, let me show you. So if I go 50 year as well, okay, we'll show us a preview, but as soon as I click add, it's gonna give us an error. So then let's just go back to the ship again. Let's go. That 200 50. Now, let's say we make this 1 41 49 so just just smaller go to Okay, now we'll get a preview. So this is a good gauge today. If you did it right, as if you get an actual preview with a white line, there is no white line, just a black box. And, you know, he probably did it wrong, but I'm just gonna sit this one. Maybe about 90 this 1 50. Just see what the shape looks like. Quite similar to the law icon we have. Obviously, you can do whatever you want to, um, get the unique shape you want other than to say this one larger than this side. You can also just about make this a circle if you wanted to. But, I mean, we've got a shape for that, so I don't see the need. Now, what I'm gonna do is just said you're a manual quantity one at it that are shaped canvas. And there's our first shape. So this is first in the media shape we have. It's a little bit more difficult in our primitive ones or are basic ones. But you know, they're not that advanced. So if we go to just quick recap again to flat parts part three, just the important thing about this is obviously this will be your ex are one of the the left or to the right. And the important things are, too as to always be smaller than arm one can't be the same or larger. Otherwise, that is it. In our first part before we get to the next. If we go to softwaretraining.co.za z, you guys will notice we've got a variety of different Softwares will recover, and you can also isolate your search on top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, request the training video, fill in the many form and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
