# FabriCAM Software Flat Parts Intermediate P5 Trapezoid (Part 2) Step by Step Video Tutorial

fabricam flat parts trapezoid

When it comes to Intermediate parts that we will covering the P5 Trapezoid is most probably the most simple on the list.

The P5 Trapezoid is in many ways like a Rectangle that you can set the top and bottom edges individually.

This video is part of a Mini-Series.
Next video covers IP Trapezoid and Circle P6.
Previous video covered Intermediate P3 Flat Part.

### Training Video with Voice-Over ( Sounds ON ), Please Subscribe

#### Video Transcript

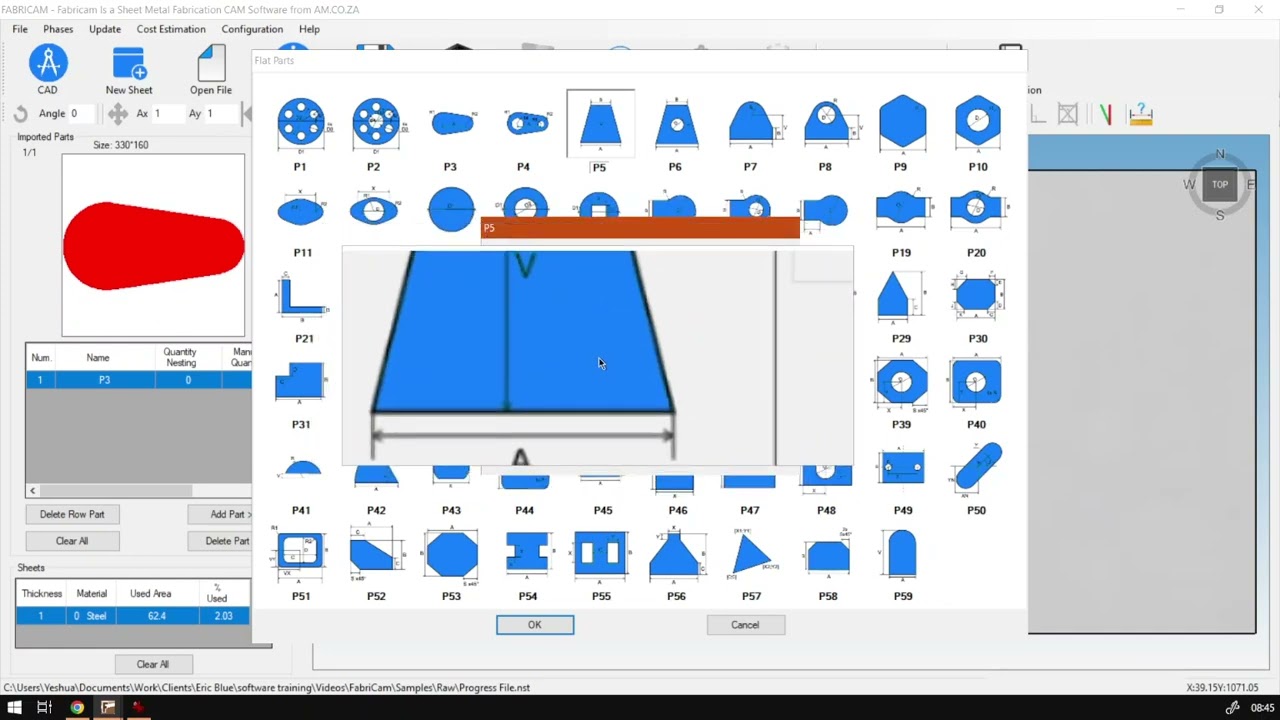

Alright, guys, In today's video, we're gonna be looking at part five from our intermediate flat parts. And this shape can be kind of refer to as a trapezoid, um, for the actual name of it. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. We make sure an easy to watch problem solving videos and we also have daily updates. Otherwise, we're back into the programme here. So now there's going to be our second shape or yeah, second, uh, stock part that we're gonna be looking at. But this is part five in the sense of its parts number. So in order to add this part, I'm gonna go to flat part here, go to P five and then, as you can see, we've got a form of trappers idea that we can adjust now zoom in so we can just see what the values do. So we've gotta be V and a obviously the b. We can see that the top V does the actual vertical length and then a does the bottom. So let's just have a quick example here, so I'm gonna make this one. Let's say eight. So this is the bottom. Starting to keep in mind confusing. It's the opposite way around. But we'll make that 200 like this 1. 100 this 1, 100. Say, Okay, you're quick, and we have a preview. Now we can see we've got the classic shape at your way. See? So what we can do? Let's say we want to reverse it. This is one of those ones where you can actually invert the numbers, which is nice. So it doesn't have to be smaller than or bigger than so we like this 1 200 make this 1 100. So Okay, we can see now we've got the inverted version of that. Then I'm just gonna say Yeah, quantities one, we go at this shape. Now, add the star actual canvas. Now we can say we've got it here. We've got our little trapezoid facing downwards. Um, in our list of shapes. So there's a second shape we're covering for intermediate shapes, but it is part five of the different shapes For the simple to use. This one can say some of the intermediate ones can get a bit more tricky, but in general they are quite usable. So otherwise, if we head you to softwaretraining.co.za. You guys will notice we've got a variety of different Softwares we do cover and you can also isolate your search on the top, right? If you do not, however, find the training videos you're looking forward to simply go. Yeah, request the training video filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
