FabriCAM Software P20 Advanced Flat Part Two of a kind (Part 6) Step by Step Video Tutorial

fabricam two of a kind part

In today’s advanced P20 Flat Part we will be looking at the previous shape just mirrored.

When it comes to Flat Parts under the advanced section these are most probable some of the more simple ones available.

This video is part of a Mini-Series.
Next video covers P22 Advanced L Shape with Chamfer.
Previous video covered P17 Advanced Circle and Rectangle.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

https://www.youtube.com/c/SoftwareTraining

Video Transcript

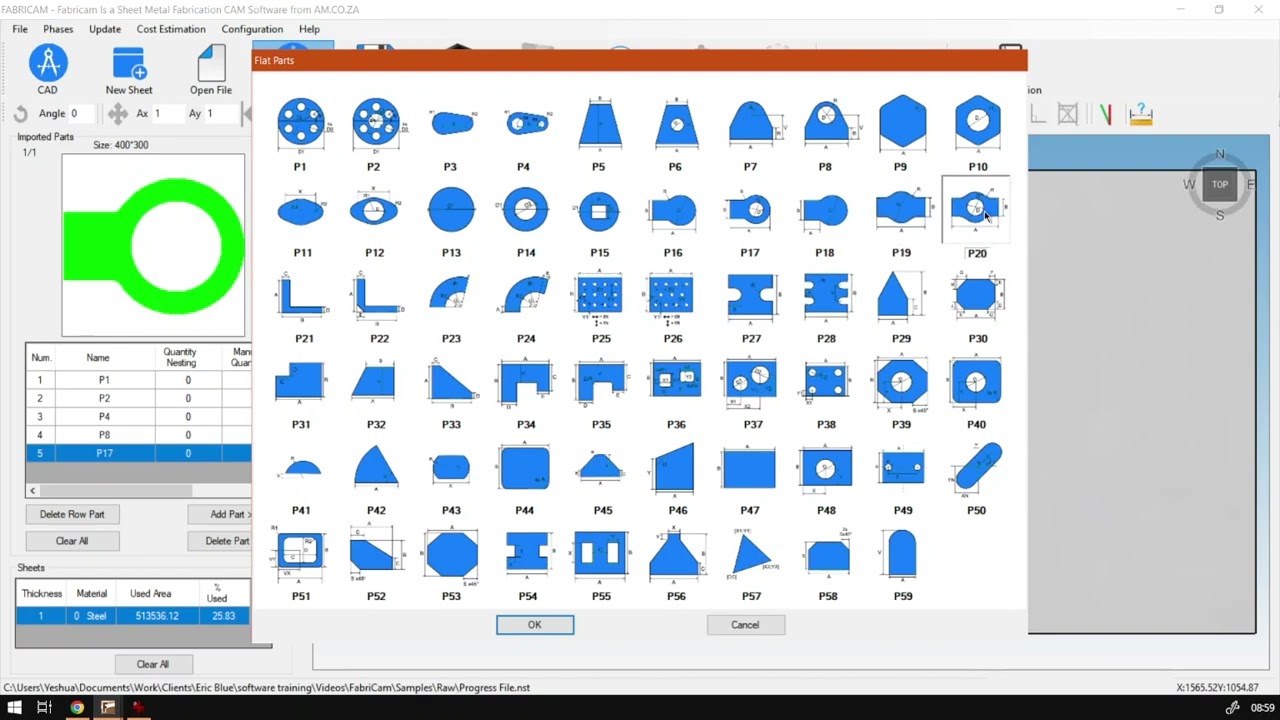

Hi there, guys. In today's video, we're gonna be looking at part number 20 from our advanced flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure that easy to watch problem solving videos, and we also have daily updates always went back into the programme here. Now today's part is gonna be very similar to the previous one we just covered, but a bit more of a mirrored version. Now, likewise with the intermediate parts you guys might remember, we covered apart like this without a cut out. And then later on, we also did a mirrored version. Now this is the version also the rounded edges. So that's why we'll be having some extra settings. So if I go into flat parts, we're gonna go to P 20 which is on the top right here. Click that and then we can see now the settings we have it's pretty, um, similar with the exception that now it's gonna add a rectangle on both sides of the circle. So we're joints, it's gonna round of four parts, and then we're gonna have to extra rectangle angles. So let's quickly setting or fill in a few settings here to make this 300 or 400 quite a bit larger. Hopefully for the last shapes in this canvass. Then, uh, the height. I'm gonna go 1 50. Just make a ring. About 200 or over 300. So that is the outside ring we just did. Now we're gonna go to the D, which is the inside ring. I'm gonna make this about 1 90 and then, uh, yeah, we want to make the rounding. This time around. It will make a bit higher. Lost 25%. I'll do about 50. Let's just preview that and see what it looks like. Oh, yeah, it's quite acceptable. I think so. As you can see now, a little rectangles on the sides are shorter, the usual, and I'll ring in the centres rather large quantities. One added. And then we add this to our canvas. So as we can see there, we've got another shape or another advance shape down 20 and, uh, it's in many ways, like I said, a murdered version of, uh, the 17, but yeah, otherwise we're here to softwaretraining.co.za You guys will notice we've got a variety of different Softwares will recover. And also you can isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, request the training video filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
