FabriCAM Software Basic Circular Shape for the CAD (Part 2) Step by Step Video Tutorial

Next up on out list of basic shapes we will be looking at the Circular shape tool.

The Circular shape has so many uses, but one its most common ones is to round off a design.

This video is part of a Mini-Series.
Next video covers Basic Shape – Oblong.
Previous video covered Basic Shapes – Rectangle.

Video Transcript

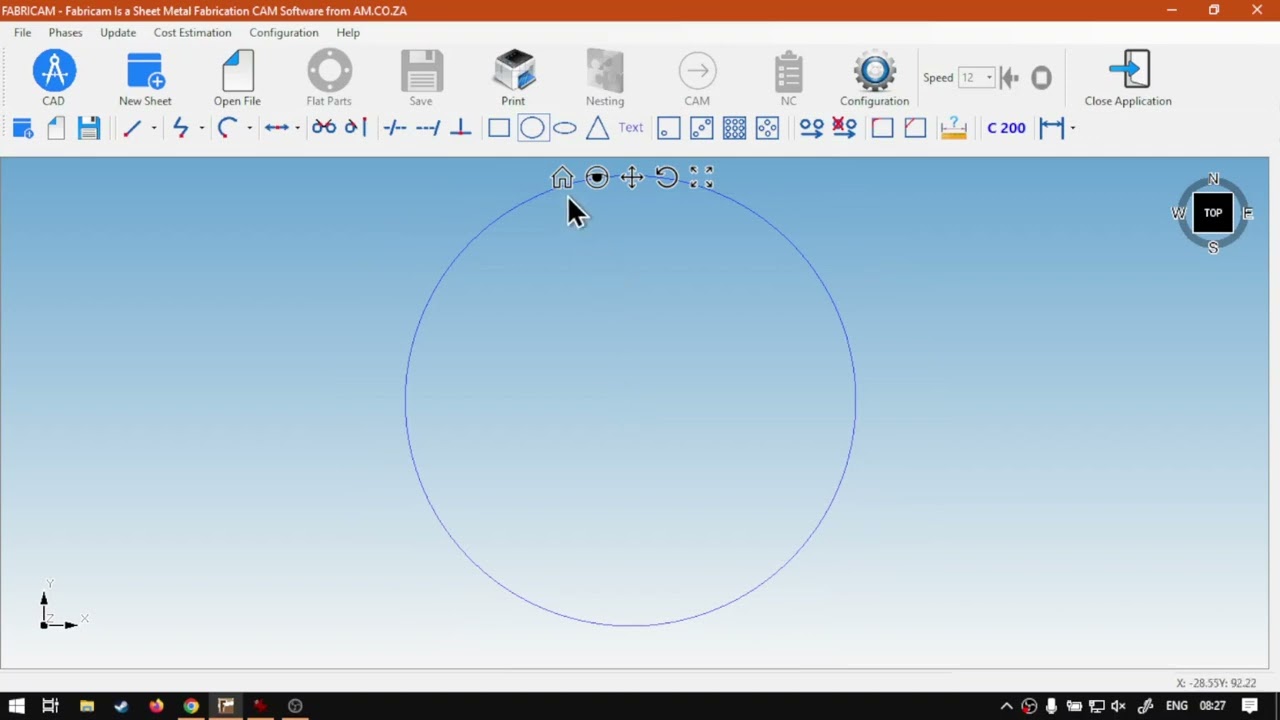

Hey, guys. In today's video, we're gonna be looking at our second basic shape, which is the circle or a circular shape, and this will be for the cat feature. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. Do we make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise we're back into the programme here. So now, like I mentioned in the previous video, we looked at the rectangle on our basic shapes, and today we're gonna be looking at the Cirque. Now, the circle is probably even more simple than the rectangle. In many ways, other than getting a sure location on your, um, design area, that's what I'm gonna do is I'm gonna remove this one. Yeah, we're gonna head onto the next little tool, which is the circle or circular icon. I'm going to click that, and then we're gonna get just one option, which is pretty nice If we can see it's d And on a little preview, we've got to be so the diameter across you ultimately do the width and height. Now Let's say I go about 200 year say okay, and then we place this. Then I'm gonna leave this 00 say okay. And then, um, you guys can see we've got our circle now, something to keep in mind. Like I said, where it can be a bit more tricky is that there was no option, like with the rectangle to set our origin so it will automatically do it to the centre of the circle. So keep that in mind when you're working with it. If you want to have accurate placements, you have to take an account the distance from the left and the bottom if you're aligning it with something bottom or the right, uh, left on the top. So you must just work that accordingly, and then you can align it quite nicely. But yeah, otherwise, that is it. On the circle, straight forward, Just a recap. We're just gonna click the circle, then, um, set the diameters and then put single positioning for now and click it on the canvas, choose where we want it, and then it will add the circle for us Really handy. But yeah, otherwise, in the mean whether if we had to softwaretraining.co.za Today guys will notice we've got a variety of different Softwares We do cover and you can also isolate. You're searching on the top of right. If you do not, however, find the training videos you're looking forward. Just simply go here, requested training video in the uniform and then we'll do our best to make that for you. But otherwise thanks guys, for watching and cheers.
