FabriCAM Software Flat Parts Basic P42 Pie Shape (Part 7) Step by Step Video Tutorial

fabricam pie shape

FabriCAM Software Flat Part P42 is the shape that can be referred to as the Pie Part as well.

This video is part of a Mini-Series that covers all the different basic Flat Parts available.


Next video covers FP Basic Part P59.
Previous video covered FP P41 Semicircle.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

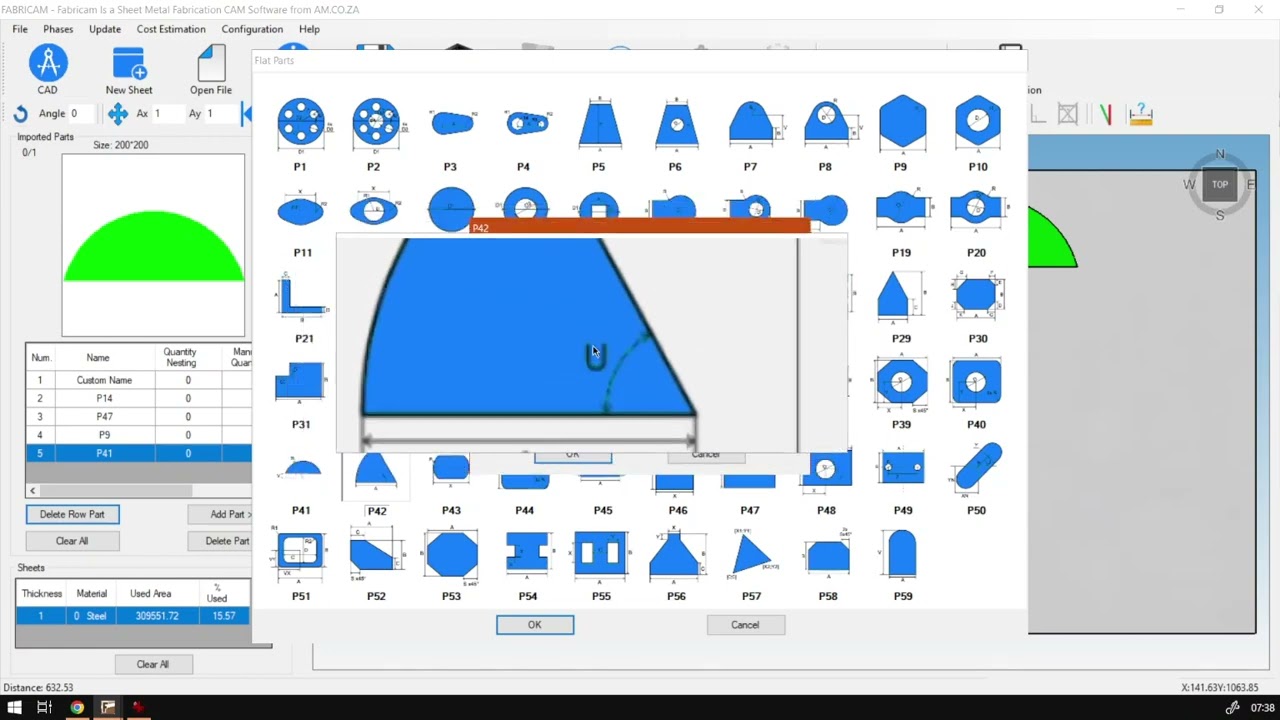

Now, you guys, in today's video, we're gonna be looking at part 42 from the basic parts, and this will be a form of a pie. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z day. We make sure needs to watch problem solving videos, and we also have daily updates. Otherwise, we're back into the programme here. So now next one on our list, we e 42 or part 42. Like I said, this one you can use, um, or show. So the shape is kind of referred to normally as a form of pie where you can set their degrees amount. And so now, in order to add this, we want to get your flat part on top here on our main, uh, to bar primary to bar, and they want to go to p 42. So I'll just zoom in here for you guys. So there you can see we've got a and you. So now I'll open apart, and then we're gonna have a better look here. So obviously a is gonna set the with and many, uh in many ways the height, depending on where it gets, and then you will be sitting basically in the form of degrees. So if we had to go here, let's say we make the A about 200 then we go about 45 degrees and then say, Okay, I'm gonna say we've got a nice 45 degree angle. Yeah. Now you can obviously changes to whatever you want. Maybe I'll go to 90 degrees say okay. And now we've got a nice 90 degree angle. So yeah, that is the part 42 was gonna add one year for us. So we have it as a reference at the part, and then we can see over there. We've got a nice little pie shape. You can say semicircle, hexagon. Got the other rectangle, uh, squared, being on the measurements circle and semicircle. And once again, so just a quick recap on the pie. So we've got two measurements and the one sets the A or the with in many ways, the height as well as being in your mind degrees. So the circumference, and then we've got you for that degrees. But yeah, otherwise in the meanwhile if we had here to softwaretraining.co.za z Guys will notice. We've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right. If you do not however, find the training videos. You're looking forward to submit your request, the training video, filling the meaning form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and choose.
