FabriCAM Software Magnifying Glass for 3D Navigation (Part 2) Step by Step Video Tutorial

fabricam magnify glass 3d navigation

When your project is done and ready for machining, it is always a good idea to first inspect your work.

A important thing to keep in mind when using this tool is not to mistake it for your default zooming.

This video is part of a Mini-Series.
Next video covers the Pan Function.
Previous video covered the Home Function.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

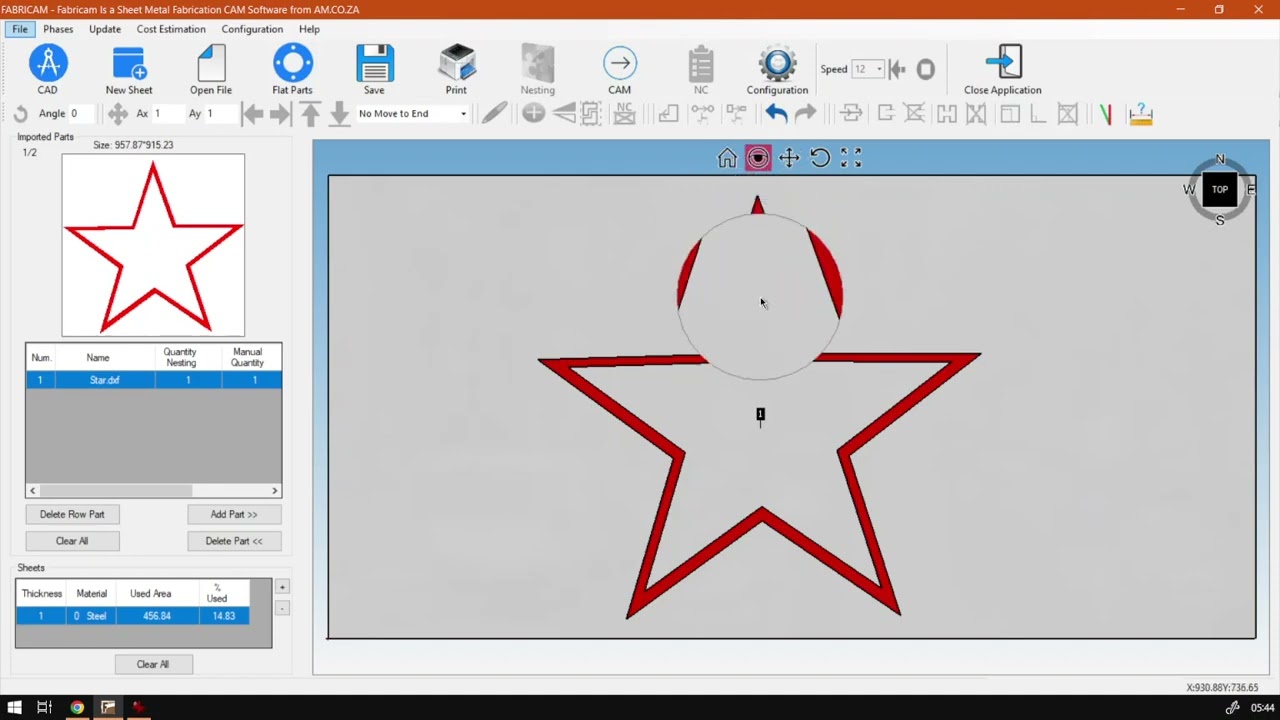

Hi, guys. In today's video, we're gonna be looking at your magnifying glass for your three d navigation. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure an easy to watch problem solving videos, and we also have daily updates. Otherwise, back to the tutorial here. So now just, um yeah. Reminder. This is a miniseries on a three D navigation. Like I mentioned before. It can be quite a tricky thing if you've never operated three d space before, but, yeah, we've already looked at home. Now we're gonna be looking at the magnifying glass. So let me zoom in here for you guys. You don't have a better look. So it's the little ring with the eye now. Yeah. You might mistake this for form of Zoom, which it's not really so let me quickly explain. So you've got a normal zoom you can do, and this is for if you wanna work up close and in fine detail. But if you wanna actually, um, inspect your work, then you wanna use, uh, magnifying glass. So once we click this, you'll see, we can no longer go into some form of work mode. Now we're in an inspection, So this is great to make sure everything is fine before you process the job. So and you'll also find that going out of it, it's not as simple as clicking right clicking, escaping. You actually have to go click on the button again. Then it will move out of it. So it's a bit of a trick getting used to, but once you get the hang of it, you know you'll find it's quite quite normal. But yeah, so just a quick recap again. So we have a magnifying glass. And like I mentioned, this is not actually for working up close. This is for inspection. So zooming is also another thing in our in and of itself. But yeah, so that is it on the magnifying glass. If we head here to softwaretraining.co.za z, you guys will notice we've got a variety of different software to discover, and also you can isolate your search on the top of right. If you do not, however, find the training videos you're looking forward, just simply go here. Request the training video. And then we'll do our best to try and make that for you. But otherwise, thank you guys for watching and until next one just
