# FabriCAM Software 2 Rectangles and Circle Combo P19 (Part 11) Step by Step Video Tutorial

fabricam rectangles circle combo

With this variation of the part P16 we will be looking at a more mirrored version of it.

with part P16 and the variations that we have already covered, we still have not gotten to the more advanced one.

This video is part of a Mini-Series.
Next video covers P21 Two Rectangles Combined.
Previous video covered P18 Rectangle and Circle Combo.

### Training Video with Voice-Over ( Sounds ON ), Please Subscribe

#### Video Transcript

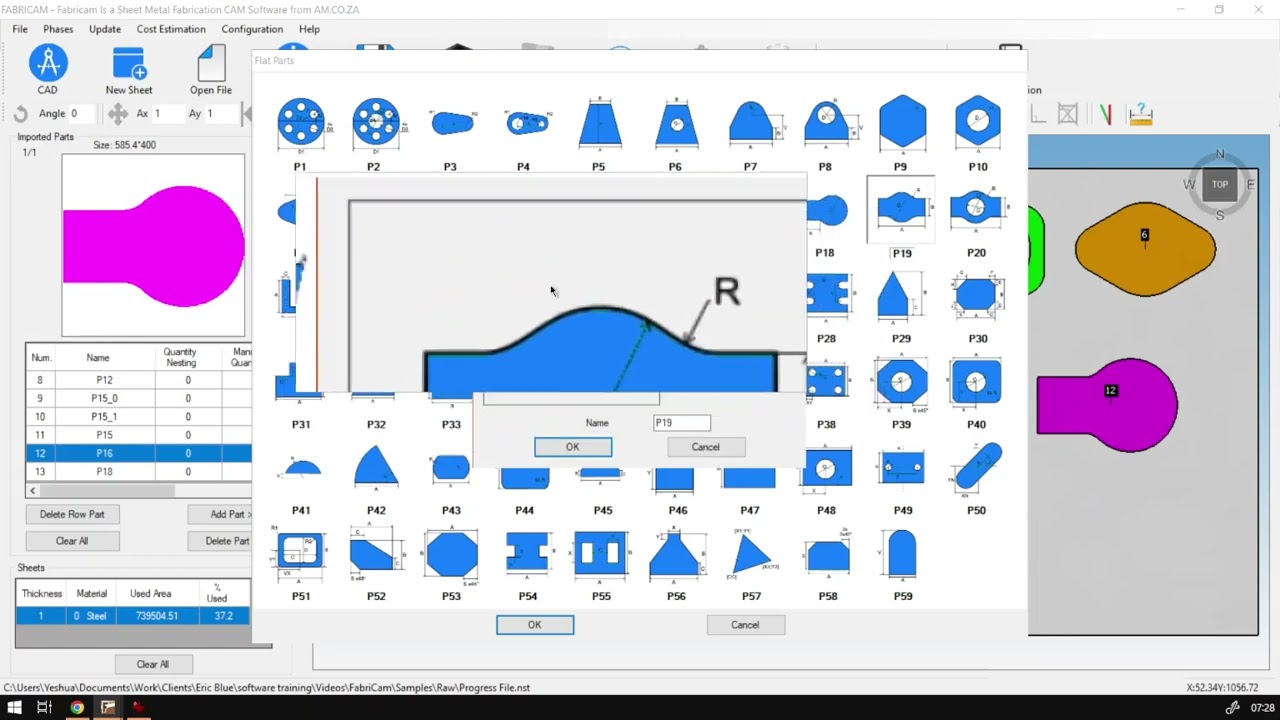

uh, guys in today's video, we're gonna be looking at part 19 from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure and easy to watch problem solving videos, and we also have daily updates. Otherwise, back to the programme here and now. In this video, we're gonna be looking at part 19 and this will be a basically a combination of these two shapes or rather, maybe this shape. So I think it's about 16, a combination of that, but with a rectangle or square on each side of the circle. So let's quickly jump to the part. We go to P 19 openness and then from our little preview dialogue box here, we can see we have a few settings. So now we've got a which is the overall with of the entire shape. So this will determine the overall with. Obviously, Then we've got B, which is the height of the cubes and then we've got oh, just that dimension of the actual circle inside that and then obviously we've got the rounding and this will be for the corners. Where the cube and the the cubes. Sorry. The squares and the circle. Uh, meat, but yeah. So let's try this. So it's got a I'm gonna make this entire shape a little bit smaller just to compensate for the previous design, which was a bit big. So we're gonna make a hopeful shape about 200 wide. I'm gonna make the rounding over the Oh, first, let's make this one about 100. Be. I'm gonna make this. Maybe about 80. Just has a slide change, and then the rounding, I'm gonna make this quite subtle or quite low. So I'm gonna keep the name of saying let's quickly see the previous is a shape, but by no means close to the review. I want to do that. I would say we could easily just drop the What do you call this to be? A bit. So let's make this 50 to say, okay, it's closer. But now we have to do the overall with, but I'm gonna leave this just to give you kind of an idea. Gonna go Said this to manual One quantity added, and then add this to our actual shape now, this one again is very small. But in that little space, if I wanted to. So I think I overcompensated a bit tends to happen and then yeah, otherwise that is it on our part 19. Like I say, it's a combination of this shape. Also say two versions of this shape put together. But yeah, otherwise, we head here to softwaretraining.co.za. You guys will notice you've got a variety of different Softwares we do cover, and you can also isolate the search on top of right. If you do not, however, find the training videos, you're looking forward to something like, Yeah, of course, the training video filling the uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
