FabriCAM Software P49 Flat Part Circled Cut Out (Part 22) Step by Step Video Tutorial

When it comes to the part P49 you might notice that we have done a similar part before.

This video is part of a Mini-Series that covers all the Intermediate parts available.

Next video covers P50 Rounded Angled Rectangle.
Previous video covered P46 Rectangle with Degree Cut Out.

Video Transcript

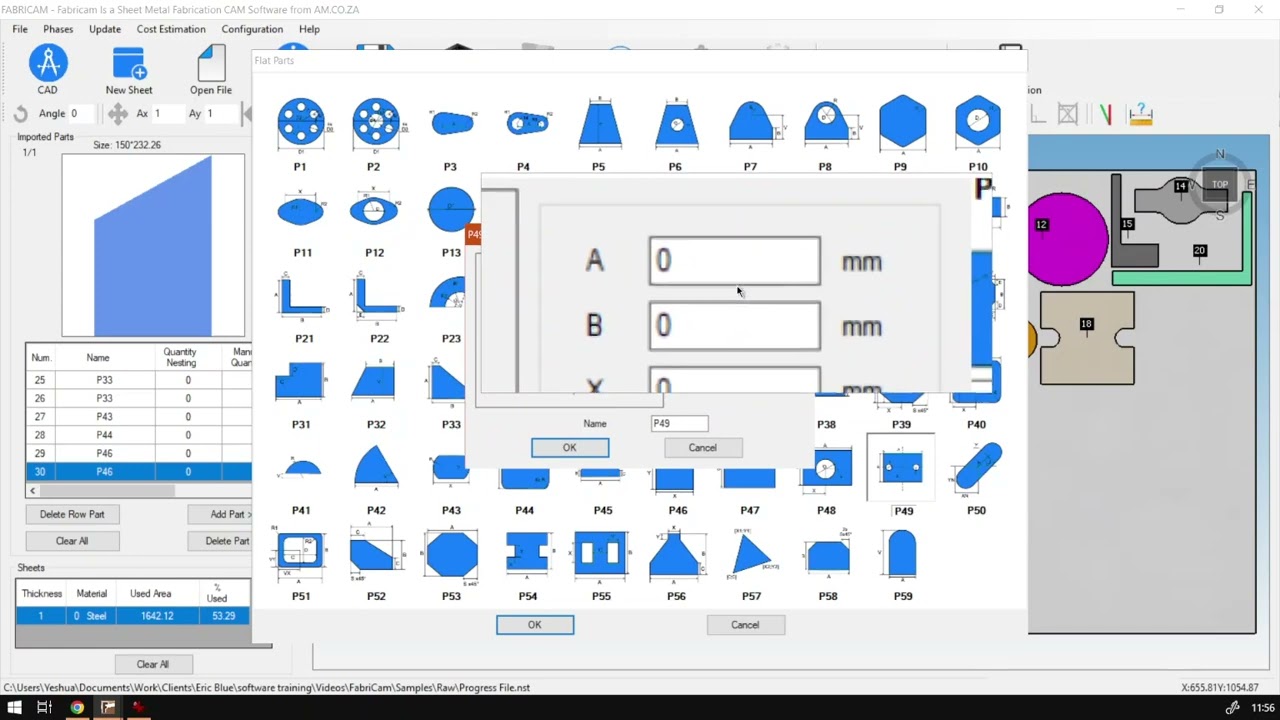

Bye, guys. In today's video, we're gonna be looking at part number 49 this is from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure needs to watch problem solving videos, and we also have daily updates. Otherwise, we're back into the programme here. Now, in today's video, we're gonna be looking at another rectangle with some circle cutouts. But this time what makes it different is obviously there's gonna be two different cutouts. So if we had yet to flat parts and we look for P 49 just click this and then on a little preview we can zoom in here. So now we can see we've got a for the with B for the height D sets both the circles, uh, sizes and then we've got X, which is the distance between them, but from the centre of each circle. So I'm gonna right here. We can see we've got the four values, so let's just quickly run through it. So I'm gonna go just make a square for now. Uh, square were 200. 200 then, uh, set a d First, let's make this one. Maybe about 50. And then we make this one about 80 See what we've got here. So it looks rather, um, straightforward. Now, something to give your mind. Like I mentioned before, the X sets the value between the two circles, but not the actual edges, but from the centre. So when you're using this shape, just keep that in mind. And also obviously, um, if you set your circles too big, you can run into a problem or you set your ex to be, So let's set this 200 Say okay and you'll see. Okay, does not want to commit the job. And then same with me. Here, let's say we got 200. Say again also doesn't want to commit it. So that's one thing to keep in mind is make sure that your ex and your d does not together go larger than the A and B, I'm gonna say, Okay, yeah, we're gonna add one quick tour canvas. The manual one manual control is once I add. And then let's add this to our the building blocks. There we go. That is p 49. As you can see, it's very similar year to the 27. But instead of having kind of a cut out from the edges, we're gonna now be doing it more to the inside of the shape. Yeah, that is it on p 49. If we head here to softwaretraining.co.za z, you guys will notice we've got a variety of different software through to cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos looking forward to simply go. Yeah, request the training video filling the form, and then we'll do our best to try and make it for you. But otherwise thanks, guys for watching and cheers.
