FabriCAM Software P25 Advanced Rectangle Cut Out 2nd (Part 10) Step by Step Video Tutorial

In this second part of the P25 Advanced Rectangle Cut Out, we will be looking at the remaining options for this part.

This video is part of a Mini-Series that covers all the Advanced Flat Parts available for use.
Next video covers P26 Advanced 11 Options Part.
Previous video covered P25 Advanced Rectangle Cut Out 1st.

Video Transcript

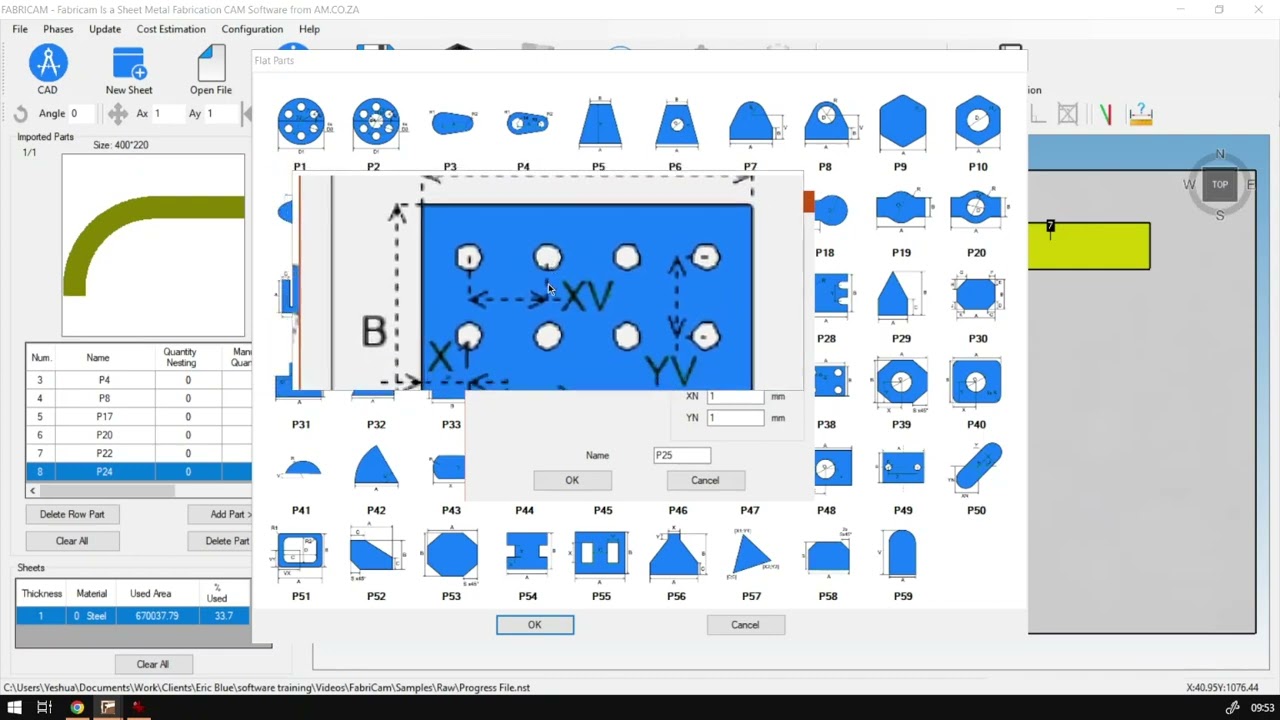

All right, guys, in today's video, we're gonna have a continuation of part 25 from our advanced flat parts. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure needs to watch problem solving videos, and we also have daily updates. Otherwise, we're back into the programme here. So now just a reminder. This is a continuation of our previous video we looked at. The last thing we did was we set the diameter of the hole, so that will be de it's gonna zoom in here so you guys can see so over there. So now next up, we've got here, you can see the yv yb. And like I said, this is where it gets a bit confusing because, um, not in all the, uh, shapes is it like this? It's only this one so far, but this one should have been a different, um, number should have been XV, so they've got a Y v and XV, but on the this side, they've got y b y. So just keep that in mind. So then let's first look at our yv Where is that located? So we know what's setting so that we can see here y view. So this is gonna be the spacing between the circles that we've created. And the XV is gonna be the spacing so on the one is on the horizontal ones on a vertical plane. So basically the height between them and the with between them. Now, keep in mind as you can see these samples that shows us from the centre to centre. So let's just adjust that quick and then, um so we're gonna carry on. So why we First, let's go make this about, uh, let me see. Try also 20 and why we 20 just to see how that looks. And then, as you can see here next time, we've got X n and why now X n y n access were confused because you just see this. But if we remember from previous one n tends to be for number. So now on our explain how many do we want and on our white plain? So let's try it first, the same as them. So we're gonna explain, or why you're playing three and just previewed to make sure everything is fine. Okay. As you can see, we've got a little problem here. Everything is nicely Snuggie on the bottom. So let's just see. So where you wanna now? Look at our XV and YV set these larger So let's go away. We first. I'm gonna make this about 40 and 40 and let's see if we have a difference. There we go. Now we can see it's starting to space. This is our side spacing. So now we can office just just this Storey find something that works. Strasbourg scale is quite a bit of 100. Okay, now it's too large. So that will be on our X. So this will be XP, So sit back a bit smaller. Try 80. Try 60 and you just slowly go this down until I find something that works. Okay, let's first set this down and we see Okay, so now we increase or decrease. I want to increase this one a bit. Let's talk about 70 look. And then the other one to sit here refining it for you guys. You can obviously first work out the measurements, but eventually what will happen is we will get to a place where we can actually, um, align them more. Okay, I see. What's the problem here? What's happening is I think the top one is supposed to be extra. So let's try this 1. 50 20. There we go. Yeah. So the top one is X me and the bottom one is yv. So that is good to know, but yeah, otherwise, that is it. On our first quite complicated advanced shape. Um, so just a quick, uh, a good reminder. Remember that these two are not the same. So XPS on top wave is at the bottom, and then the rest you can kind of just follow along. So let's say okay, Quantity one had this to our canvas. And then here we go. We've got a nice at once shape over a year, and then let's head to softwaretraining.co.za. That's so once again, like I mentioned And we've got a variety of different Softwares you do cover. And you can also isolate your search on the top, right? If you do not however, find the training videos you looking forward to simply go Yeah. Requested training, video filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
