FabriCAM Software Computer-Aided Manufacturing Project Setup (Part 2) Step by Step Video Tutorial

Now that we have had an overview of the program lets head into setting up a basic scene for us to show case all its features.

By now adding new flat parts should come quite naturally if you have done the Flat Parts Mini-Series.

This video is part of a Mini-Series.
Next video covers CAM Sequence Number.
Previous video covered CAM About CNC CAM.

Video Transcript

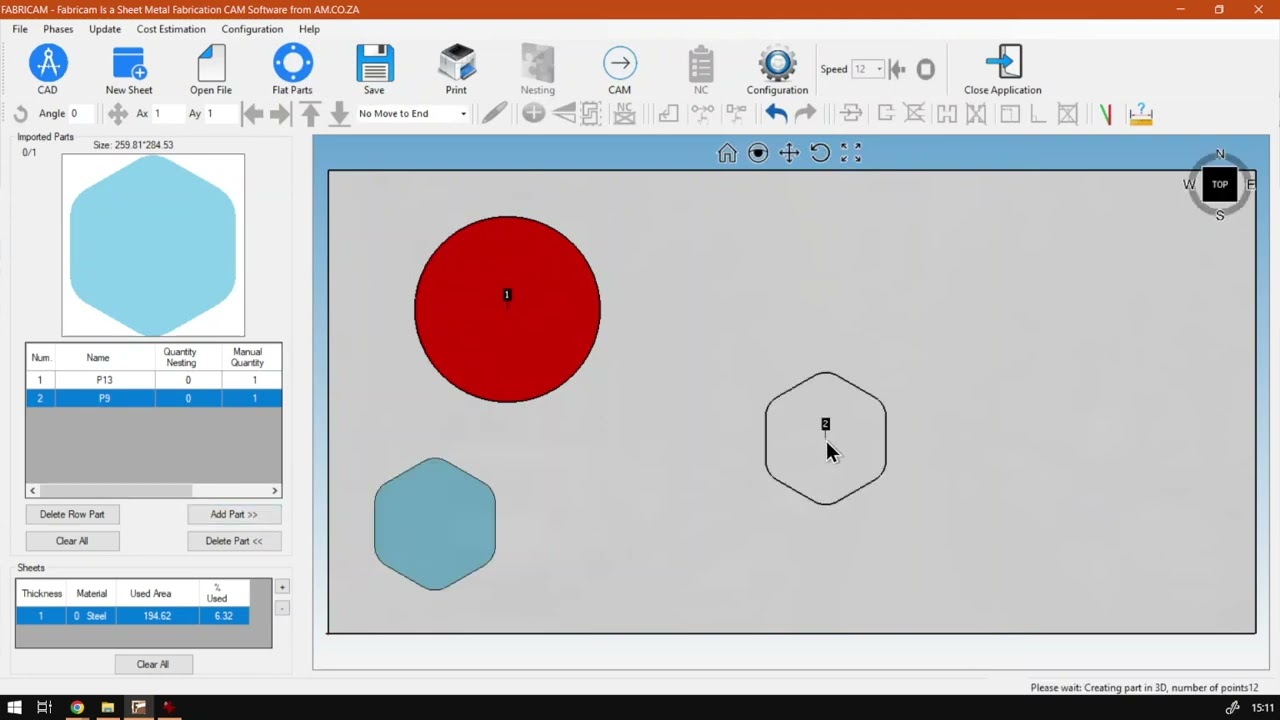

All right, guys, in today's video, we're gonna be quickly setting up camp project for our actual miniseries. And this will be for fabric camp software. But before that, let's have a quick intro first. Why? So today's video can be found on softwaretraining.co.za. We make sure you need to watch problem solving videos. We also have daily updates. Otherwise, we're back into the programme here. Now, we've already covered the basic overview of what Cam is, but in order to demonstrate some of these features in a practical approach, so you can understand it better, We're gonna have to just set up a quick scene first. So now we've got our programme already opened. So now what I wanna do is I wanna go to file and then I want to go to new sheet or on our primary toolbar here. I'm just gonna click new sheet. And then from this little menu, I'm going to select the 2000 by 1000, and I'm gonna set the beam diameter to one. I say, Okay. And then we have our scene set up. Not sure what just happened there, but our actual scene there. There we go. We've got a scene set up. Now I'm gonna add a quick maybe about three flat part. So it's got your flat part. I think. Let's just pick some simple ones. So we'll start with actual just circle, because maybe make this about 400. I'm gonna keep the name. Same p 13, and then I'm gonna go manual quantity one add it. And then we add this to our actual canvas. We can see that star shape number one, and then we go to flat parts at two more. So I would say, let's grab maybe one of these ex con type shapes we want to the actual size of this. I'm also gonna go 400. Let's make it 300 just to vary it a bit. And the rounding. I'm gonna make about 50 I say, Okay, maybe 21 at, uh and then we add this to our canvas, gonna put a day at the bottom, right? And then it's at one more part, and I'm thinking of maybe a bit of a rectangle. So it's got P seven. Now we can make this 1 500 by 400 leave the name Same. Okay, Emmanuel, Quantity one and say add Add this to our canvas. And there you go. Now we've got three shapes are ready to start demonstrating what? How cam feature can do. But before that, I would say, Let's quickly go to file, make sure we save our file or we can go on a primary tool by year. Click on save. You want to navigate where you want to save it? Already have a five year called progress. Um, progress file Cam, I'm gonna leave that they save over, right? Yes. So it is quite important to save. It just tells us here that the file has been saved correctly. So now in our next videos, you can easily just jump in and carry on with this. But before that, if we head here to softwaretraining.co.za. You guys will notice we've got a variety of different software. We do cover, and you can also isolate. You're searching on the top of right. If you do not, however, find the training videos you're looking for just simply to hear request the training video, filling them any form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers
