FabriCAM Software P25 Advanced Rectangle Cut Out 1st (Part 9) Step by Step Video Tutorial

fabricam advanced rectangle cut out

In today’s P25 advanced rectangle cut out we will be covering quite a number of different option.

With many options available we will be splitting this video in two part so that we are able to cover them properly.

This video is part of a Mini-Series.
Next video covers P25 Advanced Rectangle Cut Out 2nd.
Previous video covered P24 Advanced Pie Ring Shape.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

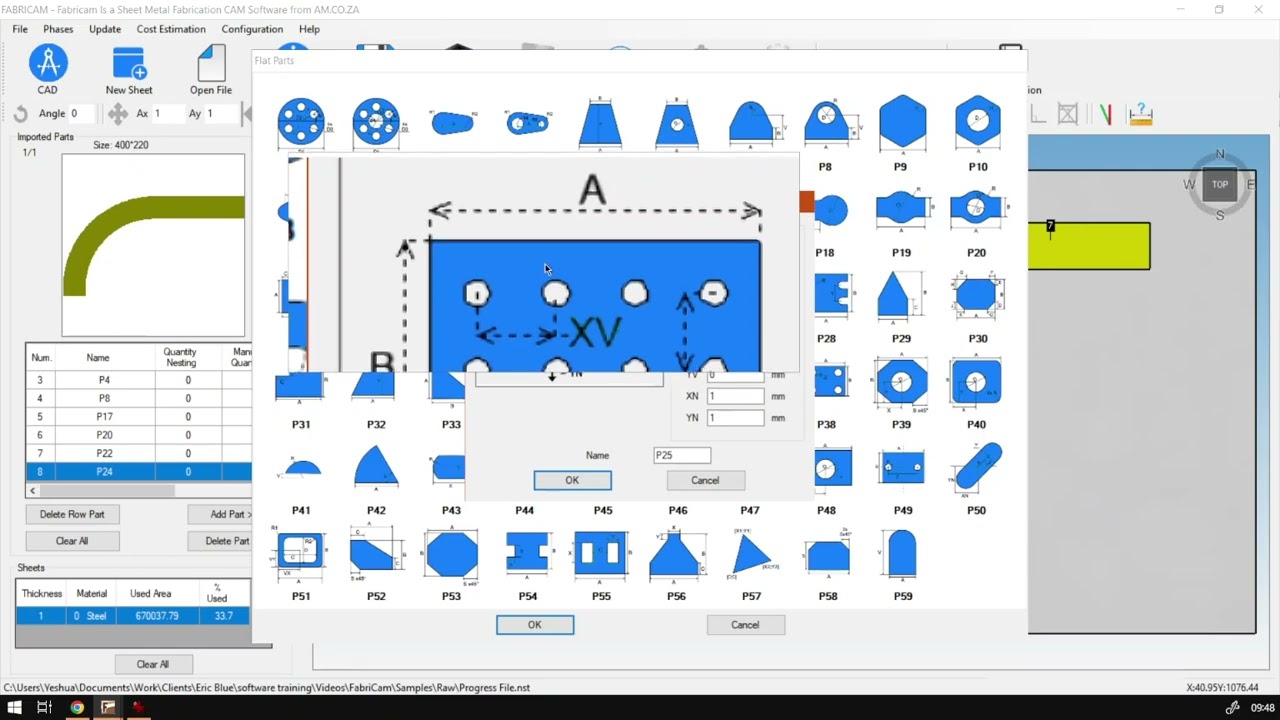

Yeah. Okay, guys, in today's video, we're gonna be looking at heart number 25 from our advanced parts And this part which I say this video will be broken up into two different ones just so that we can cover all the different options. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za. We make sure it's easy to watch problem solving videos, and we also have daily updates. Otherwise, if we head back into the programme here now, like I mentioned, today's part is probably the most, uh, options a part has that we've looked at yet. So up to now, this is gonna be our most advanced part we're looking at. And because of the amount of options, I'm unfortunately breaking it into two different sections. But in future, as you guys get the hang of it, we might just keep them on one. So let's go to flat parts. Then what we know is go to p 25. When we open this, you can see here we've got quite a list. I don't know how many. There's 2468. So I've got nine parts over here, just on one single or nine options on one single part. And like I mentioned before, it can get quite confusing. If you look at the sample here, you know, that's, uh it's almost becoming more like maths and then just deciphering a basic formula. Okay, so, uh, first things we want to look at is obviously the width and height. So we've got here A and B. So let's fill in those so long as go to a top A and B. So I'm gonna make this one, maybe 302 100 so the baby is gonna be slightly less then, next up, what we have here is we have X one and y one. So the zoom in quickly find those so you can see years x one. So this is gonna be the with, uh, between the actual outside shape and the circles inside. So this is gonna be the with. And then we said, Why one which is gonna be the height? So this X should be for both sides and why one should be for top for the bottom and the top. So let's fill them in quick, so I'm gonna make them about 20 each. So we've got equal spacing right around and next up here, we want to look at the so d like in many of the other ones, It's gonna be the diameter of the circles, as you can see over there now, we are not playing with very large scales. So I would say, Let's maybe make the d can go anywhere from 10 to 20. Just go 20. I wonder if we can preview already. Now we have to fill in the rest. Now, this is where it gets slightly confusing. But yeah, we will do that in the next video. So otherwise in the meanwhile, if we go to softwaretraining.co.za z, you guys will notice we've got a variety of different Softwares we do cover, and you can also isolate your search on the bottom. Right? If you do not, however, find the training videos, you're looking forward to request a training video filling the form. And then we'll do our best to try and make that for you. But otherwise thanks, guys for watching and cheers
