# FabriCAM Software P24 Advanced Pie Ring Flat Part (Part 8) Step by Step Video Tutorial

fabricam advanced pie ring flat

With the P24 Flat Part we are able to transform the Pie Ring shape quite a bit more.

The great part of this Flat Part is that you are able create a flat bar with a degree based turn in it.

This video is part of a Mini-Series.
Next video covers P25 Advanced Rectangle Cut Out 1st.
Previous video covered P22 Advanced L Shape with Chamfer.

### Training Video with Voice-Over ( Sounds ON ), Please Subscribe

#### Video Transcript

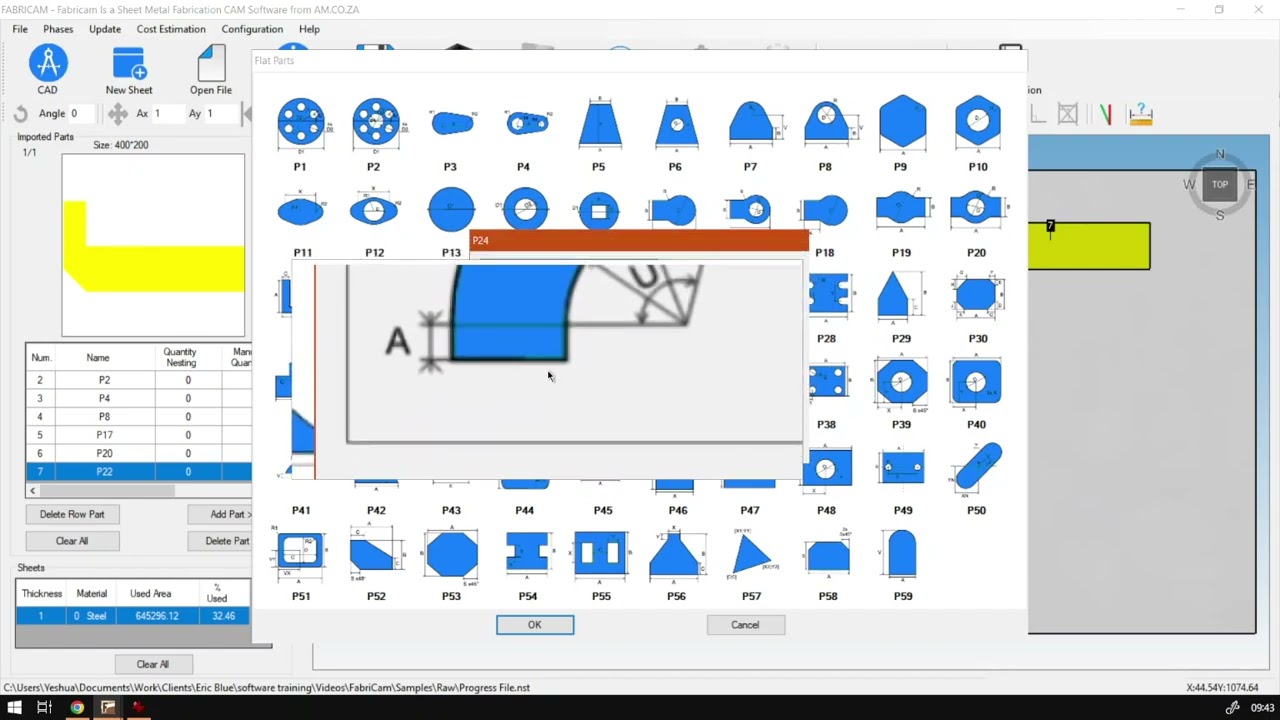

All right, guys, In today's video, we're gonna be looking at part number 20 for from our advanced flat parts. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za s here that we make sure that easy to watch problem solving videos. And we also have daily updates. Otherwise we're back into the programme here. So now we're gonna be looking at part 20 for once again. We've covered something similar in the what you call it the intermediate parts. But in today's one, we're gonna be adding, I think it's two extra options that we can set. So now to located, we're gonna go to flat parts, go to P 24. As we can see here, we've got the new one next to P 23. So if I open here, let's just look, we've got I think five values to set. So we've got the two new ones is A and B, as you can see so we can have, like, a little extra extra coming from, um, the two sides so we can sit, which is pretty handy. So I'm gonna sit in a few values, so we can look at what that looks like. So first, let's go to R one, which is the outside diameter. How far is it? Go about 400 the inside one. I'm gonna go about 300 then a huge amount of rotation. Let's make this about a 90 degree. Then let's set up a so I'm gonna make one longer than the others. So let's make this one about 20. Uh, next one, I'm gonna like 60. It's really preview this and see what it looks like. Here we go. Now we can see it curves, and when it hits a certain point, it extruded out. So this side is 60 and the side is 20. So now you can obviously go a bit more extreme with these values. So let me set this a bit smaller. I'm gonna go about 200 make the inner one, obviously want it smaller than the outside. So let's go on 50. What I wanna do is with the be really push it a bit. So let's make it about 200 we see what that looks like. Here we go. Now you can see we've got coming. So it's a nice world to make a nice round corner on your plate or so forth. But yeah, that is it, then on, actually, uh, p 20 for one's gonna add one quantity and add this to our canvas. Let's go. So now obviously keep in mind, uh, you could always just the actual amount of the grease. So it doesn't have to be a nice 90 degree like this. You could have just about in any angle, but yeah, otherwise, if we head here to softwaretraining.co.za z, you guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search here on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go. Yeah, request the training video filling in uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers
