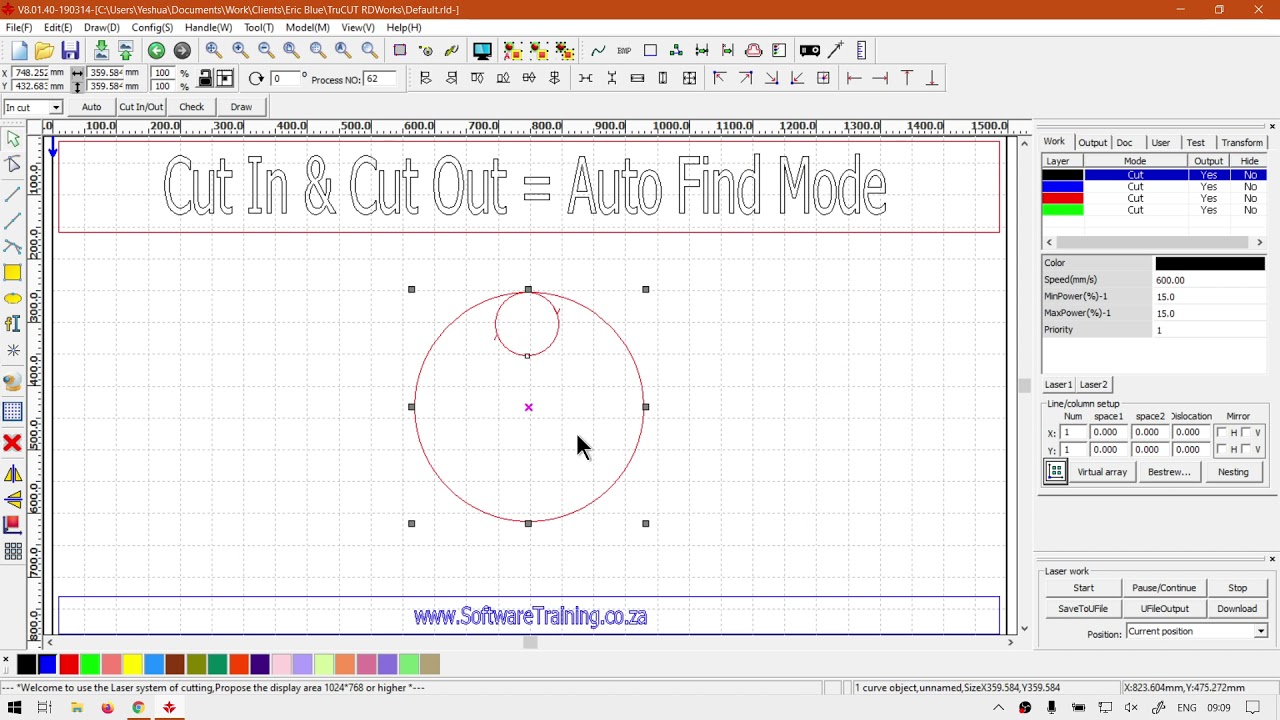

TruCUT RDWorks Software the Auto Find Mode (Part 8) Cut In Cut Out Video Mini-Series

rdworks auto find mode

The Auto Find Mode within the program will help you to quickly find and set the default angle of the cut.

Once again this is great when you are working on lots of cutouts and their default cut angle will stay the same.

This video is part of a Mini-Series.
Next video covers CI & CO Inside and Outside P2.
Previous video covered CI & CO Auto Set Mode.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

and guys in today's video and to look at how do we work? So we're gonna be looking at the auto find mode within your auto cut and auto. Sorry, my apologies to cut in and cut out feature, But before that, let's have a quick intro first. Mm mm. So today's video can be found on softwaretraining.co.za c o dot z A. We make, uh, short and easy to watch problem solving videos. And we also have daily updates. No, it's feedback on the programme. Yeah. Now, just a quick reminder that this is a miniseries on the cut in and cut out feature, and I will also leave relevant links in the description so you guys can actually follow along when it comes to that would've find mode. Um, this is located under your cutting and cut out feature, so we had to select a shape. Open it up, then at the bottom here, you will see we've got the to set, which we looked at the previous video, and then we have to fight. So basically, the auto set will automatically set it to the outside of the shape. So when that is awful, you can choose inside and outside more easily, and then order Find this again will set your angle so it will automatically. If it's on automatically sitting on a 90 degree angle it off, you can choose the so I'm gonna leave it on for now. And then let's make this too straight line just so you guys can see. So if I click OK, as you can see it automatically set it there to 90 or so about a 90 degree angle, depending on your obviously your origin point. So we go back to the city in CS 19.3, 9369. And then if I put this to an arc, okay, and then basically it will come in with a circle, come out with a circle, so this is just helpful. If you're having difficulty setting your cutting and cut out, you can use this feature to automatically get something going. Obviously, if we're able to top one as well, I wanna set up to the outside and we'll do the same thing. So we'll come in from the left, go out to the right, creating a little cut up circle as well. Now, depending also on the side. So if we had to make this 50 and 50 now it will start with a smaller circle, moving to a smaller circle. My personal preference is to leave this off and the top one, so I have more control over it. But in your case, you might like it on. So let's say we have something like 100 under it, and I'm gonna be 25. 25. Okay, Let me just see what's happening there. We must have done something wrong. Okay, 1900. And then we've got a smooth coming and the smooth go out. Obviously, like I mentioned before in a few videos, that in a real project, it's not a chance I would easily at this 200 mil. This is just for visual reasons. You can nicely see what's happening, and we have the little errors on the but yeah, that is it on the order. Fine to just quick recap. It will automatically set your angle to 90 degrees so you can easily find so angle. But yeah, that is it on the order. Fine. If we had to head here too softwaretraining.co.za C o dot Z guys will notice. We've got a variety of different software CD cover, and also you can isolate your search on the top, right? If you do not, however, find the training videos you're looking forward to. Simply go here, requests a training video, fill in the many form. Then we'll do our best to try and make that for you. But otherwise thanks guys for watching and shares.
