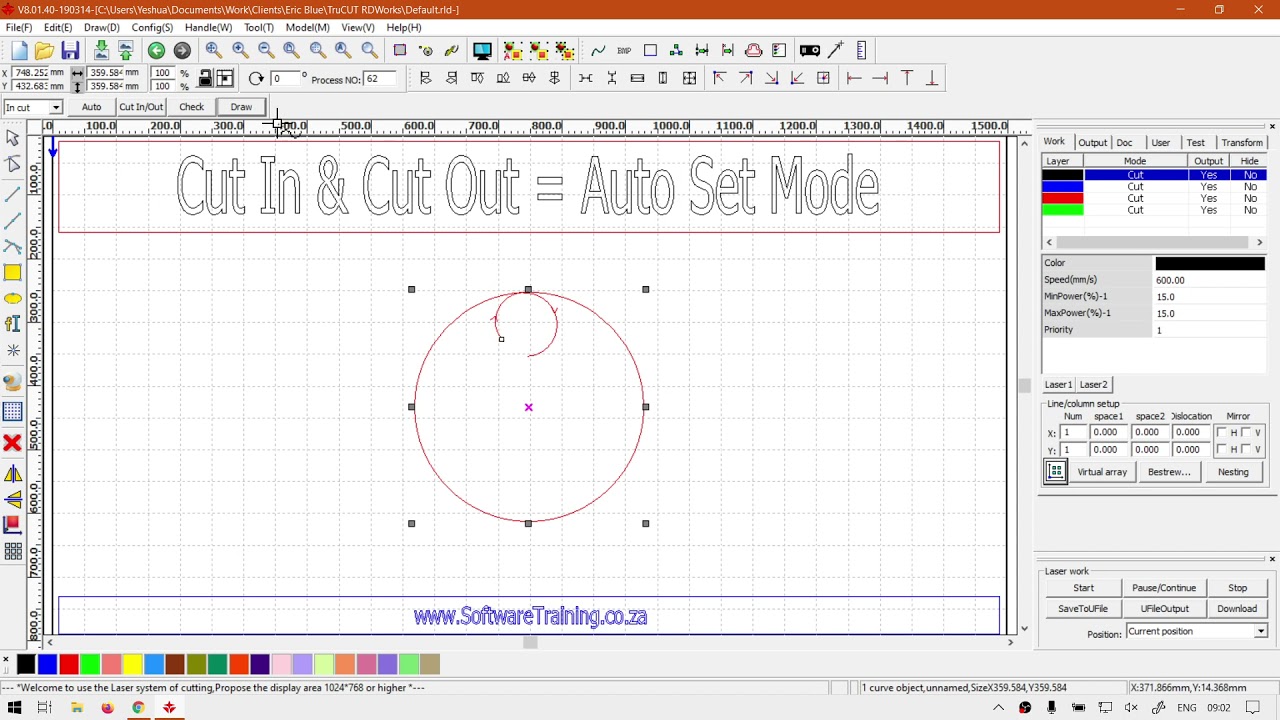

TruCUT RDWorks Software the Auto Set Mode Option (Part 7) Cut In Cut Out Mini-Series

rdworks auto set mode

When you are having difficulty with the inside and outside location, the Auto Set Mode will default it for you.

The Auto Set Mode is also great when you are looking at having a quick workflow with a set outside location.

This video is part of a Mini-Series.
Next video covers CI & CO Auto Find Mode.
Previous video covered CI & CO Cut Inside and Outside.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

Hi there, guys. In today's video and trick that already works. We're gonna be looking at the auto set mode within your cut in and cut out feature. But before that, let's have a quick intro first. Mhm. So today's video can be found on softwaretraining.co.za. We make sure that easy to watch problem solving videos, and we also have daily outfits otherwise back in the programme. Yeah, now the auto set mode. This will be a feature or setting that is located within your cut in and cut out settings. And, uh, we'll have a quick look now at what that does. But before that, just a quick reminder. This is a really serious on the cutting and cut out feature. Now we'll also leave relevant links in description. So if you guys want to follow along, so now to go to the to set this option, obviously first have your shape selected that you're working on to set your cut in and cut out. Then we go to the future. Open that, and then at the bottom here, you will see we have a few different options by default. It is set to auto set cut in and cut out. Um, I like to leave this off, and that is for a key reason which I will show you now something we covered in the previous video. And yeah, it can be rather confusing when you're working with the inside and outside shapes. Now, with this feature will do the opposite cutting and cut out wherever is enabled. If you guys can see at the moment we're doing a cut out from the inside of the shape, so it's gonna come in from here. Come out from there. That means we're gonna be using outside of this shape. Uh, if auto said cut in and cut out mode is enabled. If I click, OK automatically pops it to the outside. So then and like, you guys can remember in the previous video, Perhaps if I go in the drawer, take us to the inside time Now it's on the inside. But as soon as we go and we set some of these settings, we don't even have to say you can just say okay and I'll pop into the outside so you can get rather frustrating. So now you can change. That is, then go to the setting and make sure this order set cut in and cut out. Feature is off. Now, if we go to draw going inside, set this, try that again. There we go. So now if we go to these settings, say we change the output to 45 degrees, say okay. And now you'll see it stays on the inside, which is very convenient. So now we can set the length and all of that and get it to something we like. But yeah, so that is it on the auto said so. Just a quick reminder. It is, um, so that if it's on, it will automatically pop the cutting and come out to the outside of your shape. If it's off, then you can choose either, so you can have your shape selected, go draw, and they now move it to the outside. So I personally prefer that one off. But, uh, if you having difficulty with your actual I'm cutting and cut out, maybe locating them or something. You can always try to use the order set on and then just remove it afterwards. But yeah, that is it on the order set Motive. We had to head here to softwaretraining.co.za c o dot z A. You guys will notice we've got a variety of different Softwares will recover and you can also isolate. You're searching on the top, right? If you do not however, find the training videos you're looking forward. Just simply go here, request a training video in the uniform. Then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
