FabriCAM Software Parts Preview Control Panel (Part 1) Step by Step Video Tutorial

fabricam parts preview control

The parts preview Control Panel is a great way to quickly see key information about the part at hand.

This will also be a feature from the parts Control Panel that you will find that you use all the time.

This video is part of a Mini-Series.
Next video covers Parts Selection and Information.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

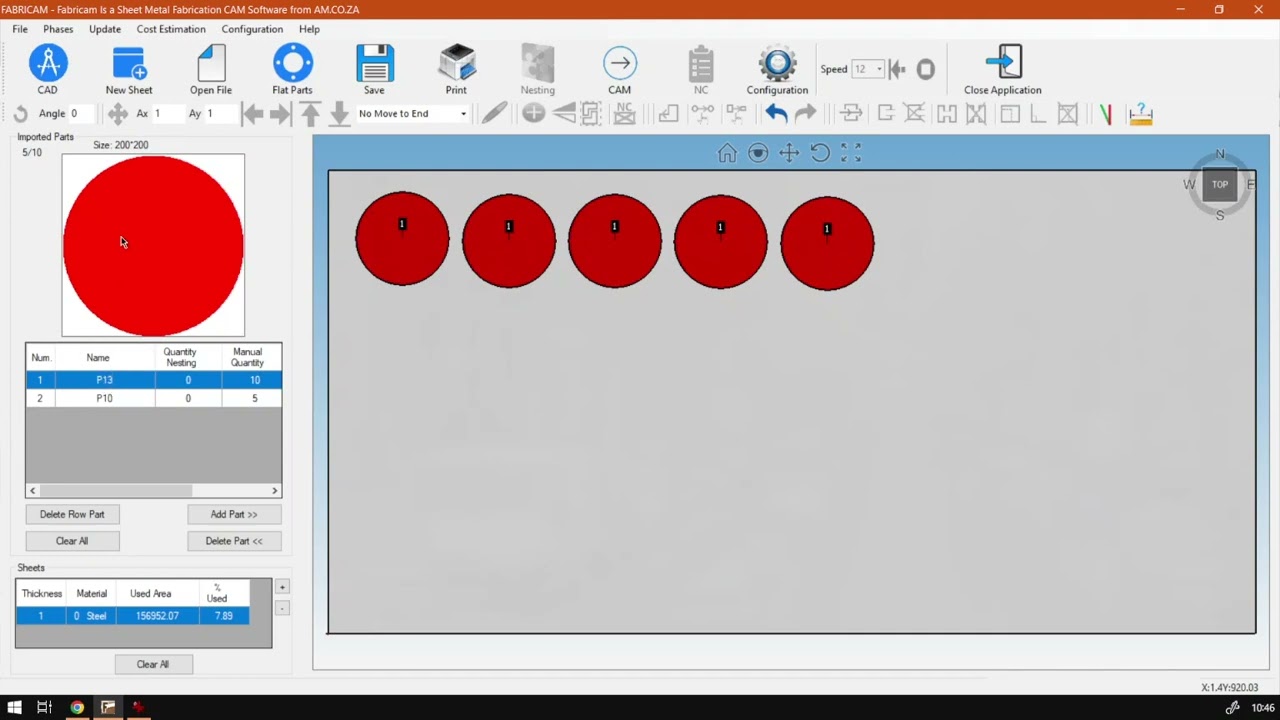

Hey, guys. In today's video, we're gonna be looking at your parts preview that can be found under your parts and sheets and all. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. We make short and easy to watch problem solving videos, and we also have daily updates. Otherwise, we're back into the tutorial here. So now just a quick info or, uh, gonna say this what the tutorial is going to be about at least this miniseries it's gonna be this about this section here on the left. This is our parts and sheets preview or panel. And yeah, we're gonna break it into a few different videos just so we can cover everything more thoroughly. But in any case, today we're gonna be looking at your art preview, uh, section and you know, what do we have available? So if if you guys have a look here at the bottom, you'll see we've got two parts available, so I'm just gonna swap between them so we can see the difference. So if I click here on the first one apart 13, we can see here. We've got a nice little preview of what the shape looks like and that we, uh can I import. And then we also have a few different details on top. So we've got the size here so we can see 200 by 200 millimetres, and then we also have how many has been in port. So you can see I've made it that we can import 10 and five of them has already been input. So if I had to, let's say remove one, then we can see we go to the party. Now it says four out of 10. So now there's only four imported out of the 10 that's available. And, uh, yeah, if we had to clicking on another shape we can see. Now there's a new preview, new colour, new sizes. And with this one, we can now see that it says zero is imported out of five. So this is a good place to have a quick overview of what's happening with your shapes and that, and also to preview them what they look like. So these colours also will change, depending on how many shapes you've got to every time you add a new shape or get its own unique colour just so you can easily on your sheet distinguish the difference between the different shapes. But yeah, otherwise, that is it. On the previous section, Um, it's a very handy little area, especially if you want to quickly see what your size, like I said. And then also how many of them in? So if you did not add all the parts, this is the place. You see where, um, to make sure you've got all your party with a final cut? Um, yeah, you don't run into any problems you otherwise before we head to the next. If we head here to softwaretraining.co.za. You guys will notice we've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do know, however, find the training videos you're looking forward, just something I request the training video filling the mini form, and then we'll do our best to try and make that for you. But otherwise thanks guys for watching until next one, which is
