FabriCAM Software Mircojoint Dimensions S-Toolbar (Part 1) Step by Step Video Tutorial

When it comes to the Secondary Toolbar and its options, you might be surprised to find that we have some Advanced Config available.

With this configurations available, it will not however cover every single CAM Tool from the S-Toolbar.

This video is part of a Mini-Series.
Next video covers STC Bridges Dimensions.

Video Transcript

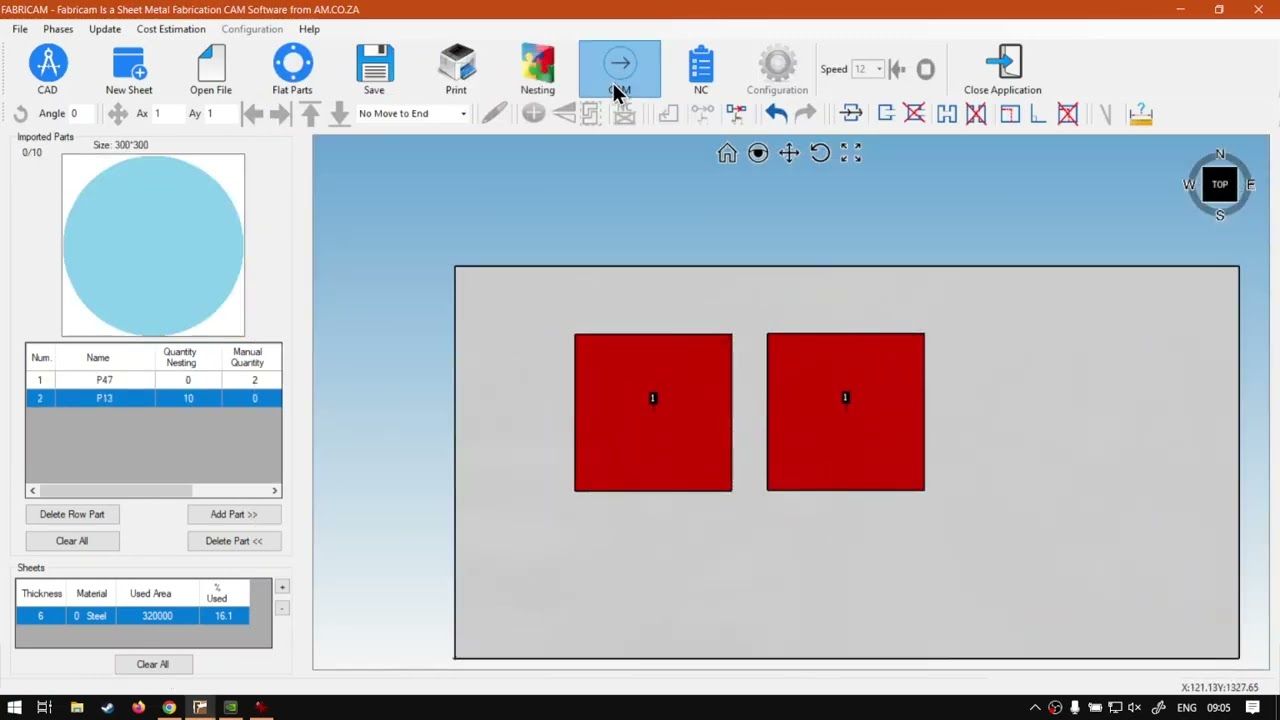

other guys. In today's video, we're gonna be looking at setting up your micro joints or your cam feature. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure an easy to watch problem solving videos, and we also have daily updates. The wise we head into the programme here. So now in today's video, we're gonna be looking at a miniseries on the configuration for your micro joints, bridges and remnants. So I'm just gonna go ahead and start a new failure, put a basic thickness and then we have a cutting plane. So now, uh, next album is gonna act quickly to shape, So let's make a rectangle 400 by 400 manual quantities, and I'm gonna put this to say at it's at the one and the next one. Now, the thing about micro jointed you must keep in mind is you can actually adjust their sizes for individual shapes, which can be a handy but you might also want to do is just a generic shape for all of them. So what I'm gonna do is I'm gonna head into the camp feature here and then quickly add a micro joint. It's gonna zoom. You're so you guys can see which icon I'm using. So I'm using that one. Click it and then I'm gonna click it here on the side. Click over there and then I have assuming you can see we've got a micro joint going over here. So now the next one let's really set the size of for this. We want to go out of our cam again. We want to go to configuration. So click that and then under the configuration, we want to go to the taps. It says Michael, joints, bridges and remnants Just fix my zoom Quick. There we go. Click there and then the first option here We have got micro joint dimensions, so we're currently you can see it's the within millimetres and it's set to three. So let's go. We said this to about 10 so we can see the difference. And then now what I'm gonna do is go back to camp, and then let's add another micro joint. This time I'm gonna add on the opposite side just so we can see them close to each other. Now, if I zoom in here, you can see we've got both micro joints, more one and the big one. And, uh, you can obviously preview it. Now, let's say you want your others to also be big. Then what you would want to do is first go delete, select that micro joint, delete it at micro join added back in. So now we can see we've got, uh, two ones that's over here. 10 mil. Now, obviously, if you want to do it to a bulk until you've got shape, I'm gonna make maybe a circle with 300 then we make this about 10. So the next thing Zuma and quickly delete these ones go out of camp first. And now with the circle selected, I'm gonna go nesting you leave it as is and just say start. Except now I've got a shape here. Now, if we set this configuration, it will keep this relevant to whatever we've said it too. So I'm gonna go to 20 so even bigger. Obviously you wouldn't necessarily want to do that just so you guys can see. So I'm gonna go to Cam at micro joint and then what happens is just wait for it. And then now, when I add Michael joints, everything will be, um when he centimetres. I mean, sorry, 20 millimetres. There we go. So that's how you do it if you want to do all of them the same size and make sure you adjust it beforehand. So if you go out of camp, you're gonna just before we even add any you can go configuration, micro joints, bridges and remnants. And then you set this amount ply, okay. And then when you're going to Cam, you only had your micro joints. Otherwise, as you can see right now, you would have to delete all of these ones manually. So just something to keep in mind. So just a quick recap. So you basically want to go to okay, not to where I just went. You basically want to go to configuration first, set up your micro joints and then add them to your ships. But yeah, otherwise, in the meanwhile, if we head here to softwaretraining.co.za z, you guys will notice you've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking for, just simply go. Yeah, request the training video, fill in any form and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
