FabriCAM Software Flat Part P32 Intermediate Shape (Part 17) Step by Step Video Tutorial

Now when it comes to the Flat Part number P32, It is similar to Part P5 but with only one side adjustable.

This shape or part borders on the basic parts as it is quite a simple part to use and understand.

This video is part of a Mini-Series.
Next video covers P33 Rectangle with Right Cut Out.
Previous video covered P31 Reversed L Shape.

Video Transcript

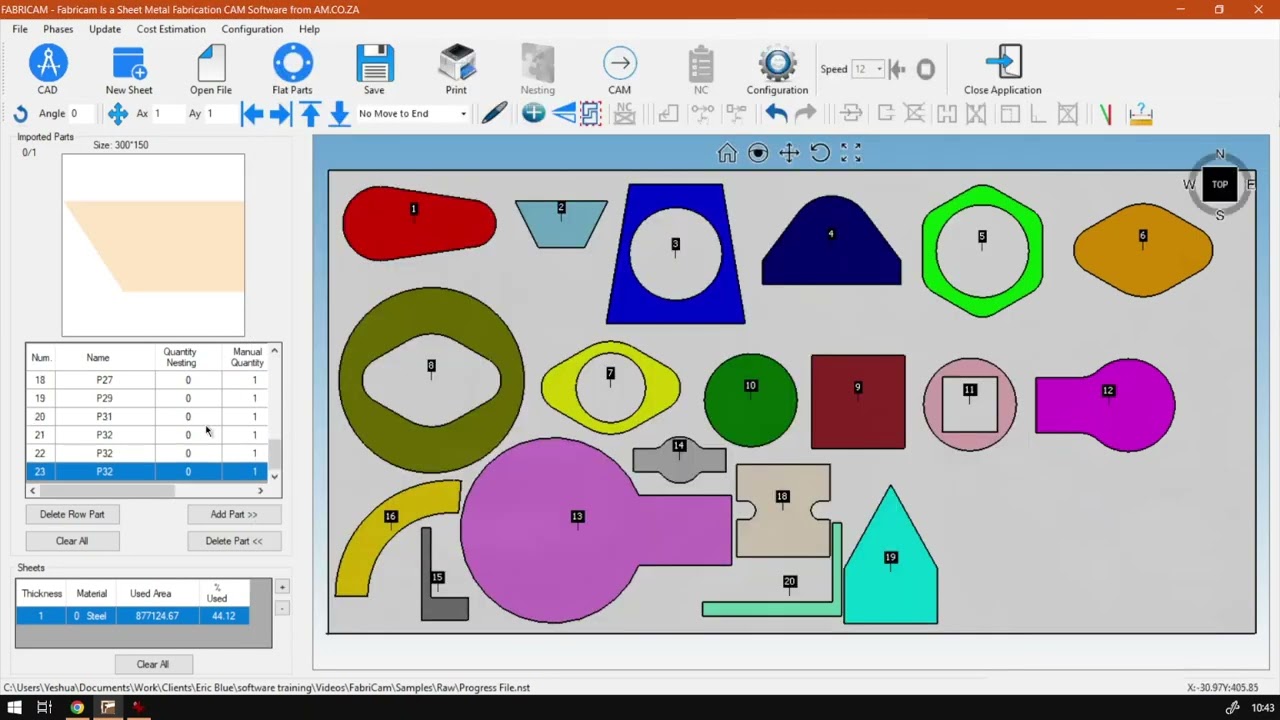

All right, guys, In today's video, we're gonna be looking at part 32 from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure it's easy to watch problem solving videos, and we also have daily updates. Otherwise, we're back in the programme here. Now, in today's video, we're gonna be looking at a rectangle with a slanted cut out or angled cut out on the left side of it. But now, yeah, before we do that, uh, there's also a nice little way you can actually mirrored. So let's say you have a material on the one side is nice on the other side. Instead of trying to make a cut out and then flipping it, you can actually make to cut out and then you just rotate the one shape under 80 degrees and then you'll have a nice mirror of it. But now, in order to do that, let's go to our flat parts, open this dialogue and then we'll see here. We've got P 32 gonna click that and just really look at this little preview. So now from the preview, we've got three different values. We gotta be V and A Now, obviously the B will be setting the top with the view was setting the height of the shape and a will be set in the bottom with of the shape. So now what we can do like I mentioned. So I'm gonna fill in some values here. So let's make our be on top. Maybe, uh, 200 go. I mean, our A B 300 I ve I'm gonna make about 1 50. So it's not gonna be quite the same as this shape, and it's gonna be obviously a reverse. The bottom is going to be smaller. So if I say okay, yeah, we can see we've got a bottom. It's smaller than the top. And then, um, yeah, we've got the height of 100 and 50 so I'm gonna add 12 hour worksheet quick at this part, and then I'm gonna put this here at the bottom. So now, like I said, if we want a mirrored version of this, maybe if your product you need two sides, then what we can do instead of cutting two of these out of flipping the material in case there's something wrong with your material. Uh, the other side's maybe not. It's pretty, or you're not gonna treat it with the final coats of something. Then what you can do is this method. So you go again. We're going to part 32 then now what we wanna do is invert everything. So now we want to make the bottom 300 each make that 330 make the top 201 50. So now if we say okay, we'll see. We've got an exact inverse of that one, and I go manual one. Okay, we'll add at this spot right on top of it. And now you can see we've got a nice mirror version. So we can simply just rotate one of these shapes, whichever we need, you know, 100 and 80 degrees clockwise or counterclockwise, and then we've got a nice mirror of it. So, yeah, otherwise, that is on par 32. Yeah, despite you might use a lot for balls or so forth of your products. And then it's just good to know how you can mirror so it makes sense. But yeah, otherwise, in the meanwhile, if we head here to softwaretraining.co.za z, You guys will notice you've got a variety of different Softwares we do cover, and you can also isolate your search on the top, right? If you do not, however, find the training videos you're looking forward to simply go your request, the training video, filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
