FabriCAM Software CAM Contours of the Same Shape (Part 3) Step by Step Video Tutorial

This is great if you are working on the Contours of your Shapes and Parts and would like to do a more batch type approach.

The CAM Contours of the Same Shape option will prove to be quite a time saver.

This video is part of a Mini-Series.
Next video covers Contours Parts of the Sheet.
Previous video covered Contours Internal vs External.

Video Transcript

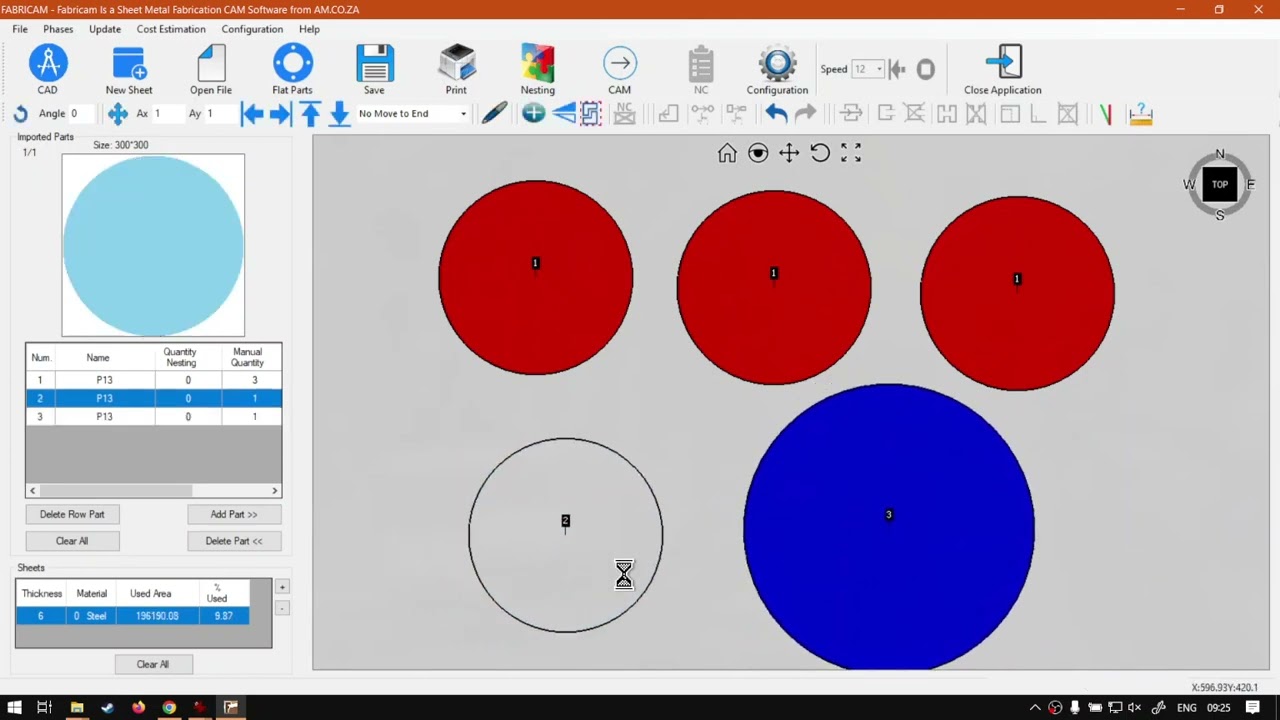

How are you guys? In today's video? We're gonna be looking at the option to delete contours of the same shape or your delete contour feature. And this will be four fabric camp software. But before all of that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure that easy to watch problem solving videos, and we also have daily updates otherwise went back into the programme here and now I'm just gonna add a quick few shapes here, so you get the idea of what's happening. So I'm gonna add a circle I'm gonna make, uh, let's make about three of them are gonna go add. I'm gonna add these ones quickly, manually to the actual canvas. Now, let's go and add another circle. This summer, I'm going to just add one of them. But I'm gonna also keep it 200 so exactly the same size. But we should see it in another colour. So I'm gonna add that and then let's go. I'm just gonna move these ones up a bit and then I'm gonna add another shape and let's make this one maybe about 300 added to the, uh, to the party is 11 manual quantity added. And then we add this shape over a year. Now, as you guys can see here, we've got, um, five of the same shape here, but yeah, they still need to keep in mind when it comes to this feature. So now what I'm gonna do is I'm gonna go here to the actual cam option. So we have selected. I'm going to select our first shape and then go to the delete Contours Little button of the year. And once we open this, we'll have some options on top here. So I'm gonna zoom in so you guys can see it a bit better, So we've got your apply for all parts of the same shape. Now, this one is, uh, interesting in the sense of the way you must interpret it because you might think if I click this, it's gonna apply to all the how can I say to all the circles. So I'm gonna click that, say, delete contour and then say, Okay, as you can say, see, it's only deleted the same top ones and not the bottom ones. So they also calls the circles even the same diameter, um, diameter of the top ones. But it only deleted the contour for the top one. So if we go here to the previous, you can see it's only cutting the bottom two. Yeah, that is something to keep in mind when it comes to the actual, um, the lead contours of the same shape and that is that it actually works according to the part that is selected and not the actual shape of that part. So that is something to keep in mind. So apply for all parts of the same shape will mean from the part selected, it will basically apply to all the parts. So we previously we looked at the leading only one so we could do one of these or two or so forth. This one will just make it quick of you. Let's say you've got about 10 parts of the same shape and then just quickly deleted by clicking. Apply for all parts of the same shape now, something to keep in mind when using these top settings, and that is that keeps it on or keeps it checked on after you've used it. If I select the shape and go back to the contours, you'll see it's still on, so you might not notice it and just carry on here. But it is important to note. First cheque it off and then you do your settings. Otherwise, when you go there, it's gonna be cheque on store. So, yeah, otherwise, that is it on, uh, leading contours of the same shape. I was gonna cheque that off, So okay, so that we know it is no longer active, but yeah, otherwise, in the meanwhile, if we head here to softwaretraining.co.za z, you guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking for, just simply go. Yeah, request the training video in the uniform, and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
