FabriCAM Software CAD Auxiliary Line Bisector (Part 7) Step by Step Video Tutorial

fabricam cad auxiliary line bisector

Now with this option from the Auxiliary tool we get to save loads of time when it comes to calculation and placement.

This video is part of a Mini-Series that covers the Auxiliary tool and its variations.

Next video covers Auxiliary – Practical 1.
Previous video covered Auxiliary – Line with Two Points.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

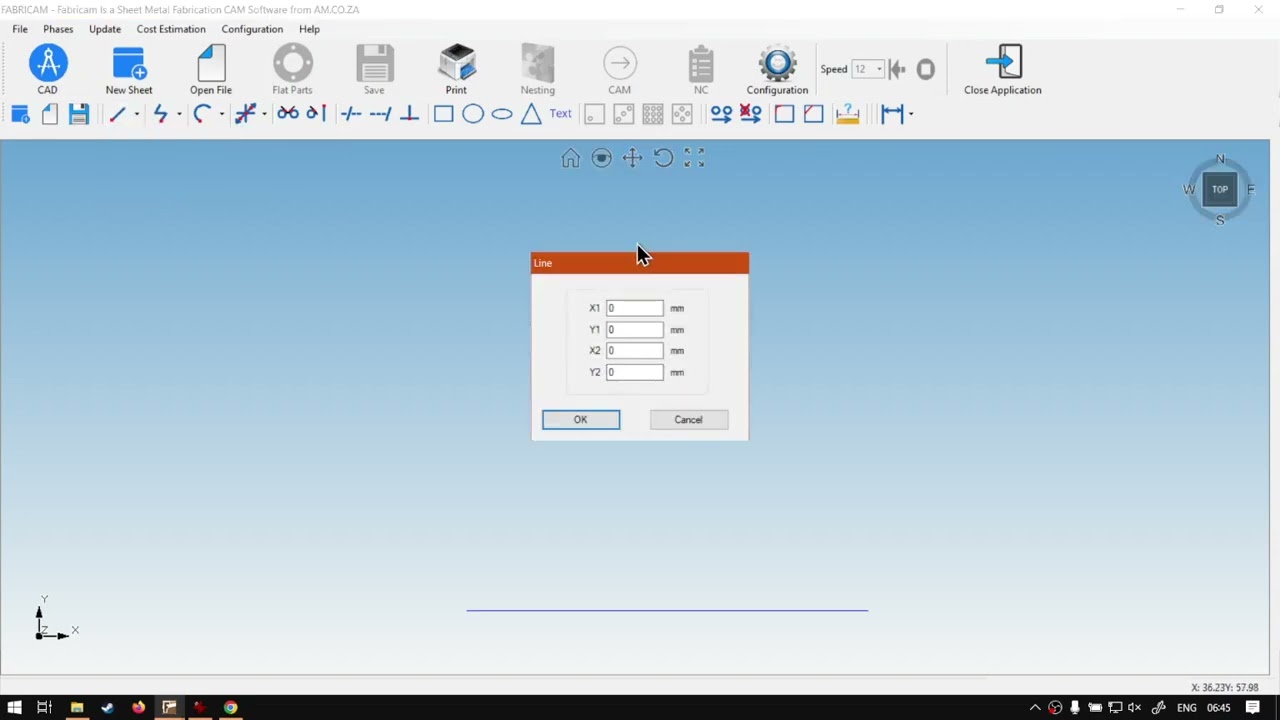

Hi there, guys. In today's video, we're gonna be looking at the line by sector for the cat feature, and this will be for fabric camp software. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure and easy to watch problem solving videos, and we also have daily updates otherwise back into the programme here. So now in today's video, we're gonna be looking at the auxiliary, uh, line by sector. So this will pretty much create a guideline intersecting two lines and divide them equally in half. So let's quickly do this. I'm just gonna do something simple. At first, let's make like a horizontal and vertical line. Now I think this does work also with guides. So let's really try that we go, we put a horizontal guide and then let's put a vertical guide. So we've got these two guides going to just drag a selection box over them. And then if we go here to the actual, um, line by sector, which is right at the bottom, we click that. There we go. It creates us a nice little guide in between those so, uh, on one note is important. It's good to know that you can, with a lot of these guides, create guides on top of guides, so you can use them as a reference point instead of having to make a line or something. But also on another point, you'll see this one has divided these two parts equally. So if I had to go, let's say we create some lines. I'm just gonna go keep one, uh, parallel to the ground or the horizontal. I'm gonna 100 and then let's create another one. And then we make this one go about 50 and 50 50 up, 50 sideways. Can we go a little bit higher? About 70? There we go. We've got a nice little curvature going here now, instead of having to calculate exactly what's the half of this. Now what you can do is we select the one you use control, select the next shape, or you can just drag selection box. If it's not, uh, any other designs in the way, then we once again we go to our line by sectors like that, and you'll see it is created equal parts on both sides of this line. So, like I mentioned, very handy tool. If you don't want to calculate what is the sense exactly? You can just use this one to get a quick guide going. So yeah, otherwise that is it. On the line by sectors. Just a quick recap. What you want to do is you want to select both parts of both lines and then use the tool and it will create the by sector for you. But yeah, otherwise, before we head on, if we head here to softwaretraining.co.za Seattle today, you guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking for, just simply go here, request the training video fell in the uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers
