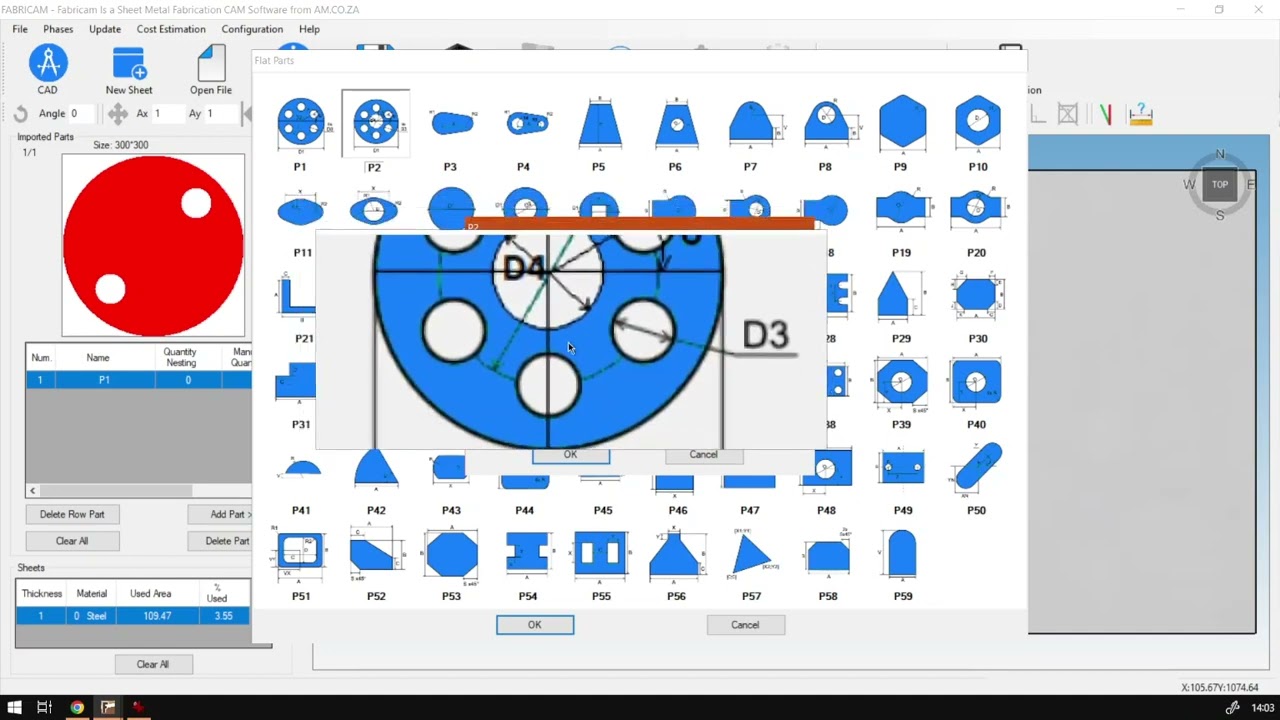

Hi guys. In today's video, we're gonna be looking at part number two, and this is also for our advanced flat parts. But before that, let's have a quick intro offers, so today's video can be found on softwaretraining.co.za. We make sure we need to watch problem solving videos, and we also have daily updates. Otherwise, we're back into the programme here. Now when it comes to part number two, As you can see from the preview, it's very similar to part number one with the exception that we're getting an extra, um, circle cutter. So I'm gonna open this and just run through it again. Just so you guys kind of, uh, get, uh, the idea again. So you're more familiar with how this part works? As you can see here on the little thing, we've got d four just this in a circle, and it's the new thing we're adding. Like I mentioned, it gets a bit confusing with all these numbers and lines crossing each other. And that is why we make these videos. So now let's make it the same dimensions. The first one, I'm gonna go 300 Then let's keep first set our hours. So we're gonna make them 50 again, then inside, instead of going to 50 by taking it right to the edge. I'm just gonna 200 from the start and then inside damage, I'm gonna make 100. And let's really see what that looks like. Preview looks pretty good, I think. And then this time let's go the number. And we said to uneven number like three, so we can see we've got our three cutouts with a circle in the centre. Now, what I can do is let's set this 1 to 90 degrees and we have a nice and flush at the bottom. There we go. We've got our our to shape. You, um like I mentioned just something to keep in mind. The force only added feature. So this one, instead of having five, it's got six different options we can set. So with everything like this, I'm gonna say, okay, make manual quality one ad, and then we just add this to our canvas. Here we go. Now we've got to I'm sure I say P two for part two, and it's quite a handy shape this to play around with, but yeah, otherwise, we had here to softwaretraining.co.za. You guys will notice we've got a variety of different Softwares We do cover, and you can also isolate. You're searching on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go. Yeah, I request a training video filling the meaning form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
