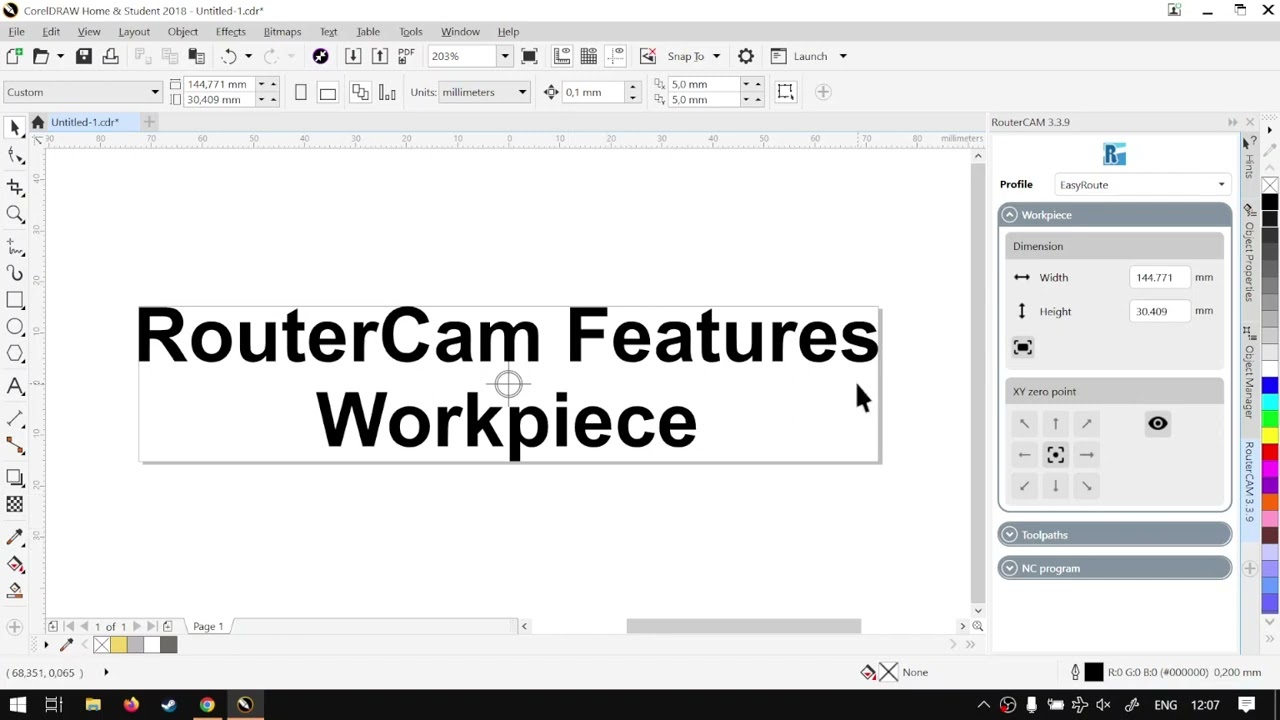

CorelDraw RouterCAM Workpiece Feature for the Plugin (Part 1), Step by Step Video Tutorial

coreldraw routercam plugin workpiece

From the list of features the this plugin as to offer, the Workpiece will be our first stop.

When it comes to the Workpiece, it is nice and simple by design and also only has the most used tools located here.

This video is part of a Mini-Series.
Next video covers Save Plugin Settings.
Previous videos covered RouterCAM Basics.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

Hi there, guys. In today's video, we're gonna be looking at, um, some features and in particular, the work piece. So, uh, how to use it? And what settings does What? But before that, let's have a quick intro first. Okay? Mm. So today's video can be found on softwaretraining.co.za z. We make sure that easy to watch problem solving videos, and we also have daily updates otherwise, back in the programme. Yeah. Now, just a quick reminder. This is gonna be a miniseries on, uh, around the camp features. So we'll be going through all the different features, Uh, how to how to use that. We've already covered the basic user interface and setting up the plug in. So now we will get started with the actual, uh, features. So now obviously, make sure your thing is open. So that is under tool Cam, we've gotta cheque market, which means open. And if you're on one of these different panels, just simply navigate to a cam and click on that. Now, with our Wright profile selected, we want to go to the work piece. So if we just simply click on this great bar will open it. Yeah, over here. You will set up your actual work piece. What's the size of it and so forth. So by default, if you start the programme, it will set up a custom one. And you can see the settings here on the right. Now you can simply change this. So this may be 302 100. Then we can see it actually updated. Live here in the programme. You can also, um, go to this one fit to drawing. So whatever you have selected, if we click this, it will dramatically make a work piece around that. So this will be your board is going to be cutting on and so forth actual dimensions. So I just put in your right custom ones. Yeah. Then that is under dimension. So next up, we have X and y zero point. So if you've worked with CNC machines, you understand? Okay, this is a basic starting point of your blazer or so forth. Now, make sure you when you're seeing this, you have show the point here because you can hide it as well as we see this little point. This we can set it up So now you can use these arrows as well to set custom ones. Top left, Click that you'll see him move to the top. Left bottom, left centre. Right and so forth. Mind bottom left? Yeah. So that is the, uh, work these. So just to look over you again, you can set the custom dimensions over here or scale it too graphic. So if you have a another design over this border, perhaps then you can scale it to that. And then it will take on the new scale. And then under that, we've got the X and Y zero point so you can choose where zero point on your design and we can show and hide it. After you've said it, you always hide it if you want to distract. Otherwise, that is eight on the work piece. Next up, we're looking at two parts. But before that, let's have a quick look at the website. Just so if you guys go to softwaretraining.co.za z, you will notice we've got a variety of different Softwares to recover. And you can also isolate your search on the top, right? If you do not. However, find the training videos you're looking for in the list. Simply just go here, request the training video, fill in the many form, and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
