TruCUT RDWorks Delete, Mirror and Center Tools (Part 9) the Tool Draw Bar Mini-Series

rdworks delete mirror center tools

These four tools that comes with the program is great to speed up those basic actions.

You are able to access some of these features with hotkeys, but it is great to have them all in one universal location.

This video is part of a Mini-Series.
Next video covers Matrix Copy.
Previous video covered LGP Design.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

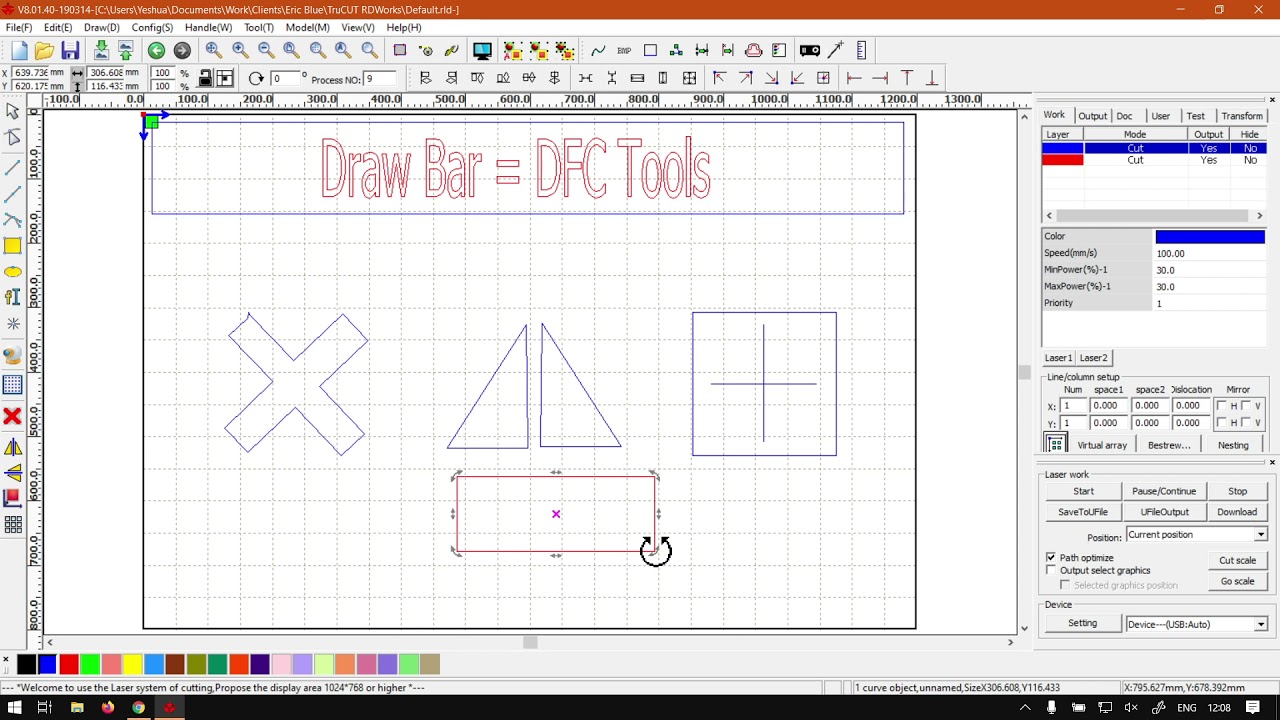

How are you guys? In today's video? We're gonna be looking at the DFC Tools. We're also known as Draw, flip and Centre. This will be located on your draw bar, and it will be for truth that already works. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. God CEO. Today we make sure an easy to watch problem solving videos, and we also daily updates. Otherwise, we're back on the programme here Now. Just a quick reminder. This is a miniseries on the draw bar, and I will leave relevant links and descriptions. You guys actually follow a lot now when it comes to a DFC tools. Um, it's kind of just a name I made up. It is your draw Flippen, like I mentioned centre tools. So this you'll be using on shapes and parts and so forth. It's a quick, easy way to kind of do some basic changes, which we use, um, some more often than others. So now if we had to look here on our left on the actual draw ball, we can see here. We've got the lead, flip or mirror horizontally and then the flip mirror vertically. And then under that we've got centre thought. So now this will obviously only work if you have something selected. So if I have this selected, I'm just gonna quickly rotate it a bit, so we can kind of see the effect. So obviously the flipping of Marine, we'll do exactly what you imagine. The centre will throw it to the centre of the screen with your rather your centre of your design area, and then the top will be delete. So this is a quick way to use a graphical user interface to and use these operators. It's obviously other ways you can go about it, but this is quite convenient. Otherwise, yeah, that is the basics on those. Um, should I say I'm gonna call it three options was actually four. And then Yeah, well, in future, beat Australia go into more depth on how to use them in actual designs or show us a design workflows. But otherwise we had to get you to softwaretraining.co.za. That's the other day, guys. I just got a variety of different software to to cover and also you can isolate you sit on the top right. If you do not, however, find your video looking for between all these lovely ladies, you can always go here, request a training video. Then we will make that video for you. But otherwise thanks, guys, for watching and cheers.
