TruCUT RDWorks Checking your Data for Errors (Part 8) Extended Tool Bar Mini-Series

rdworks check data errors

When you working on large complex designs, it is always a good idea to keep an eye out for errors.

Addressing these errors using the Data Check tool will ensure that your final product will look and process as smooth as possible.

This video is part of a Mini-Series.
Next video covers Docking Point.
Previous video covered Offset Polygon.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

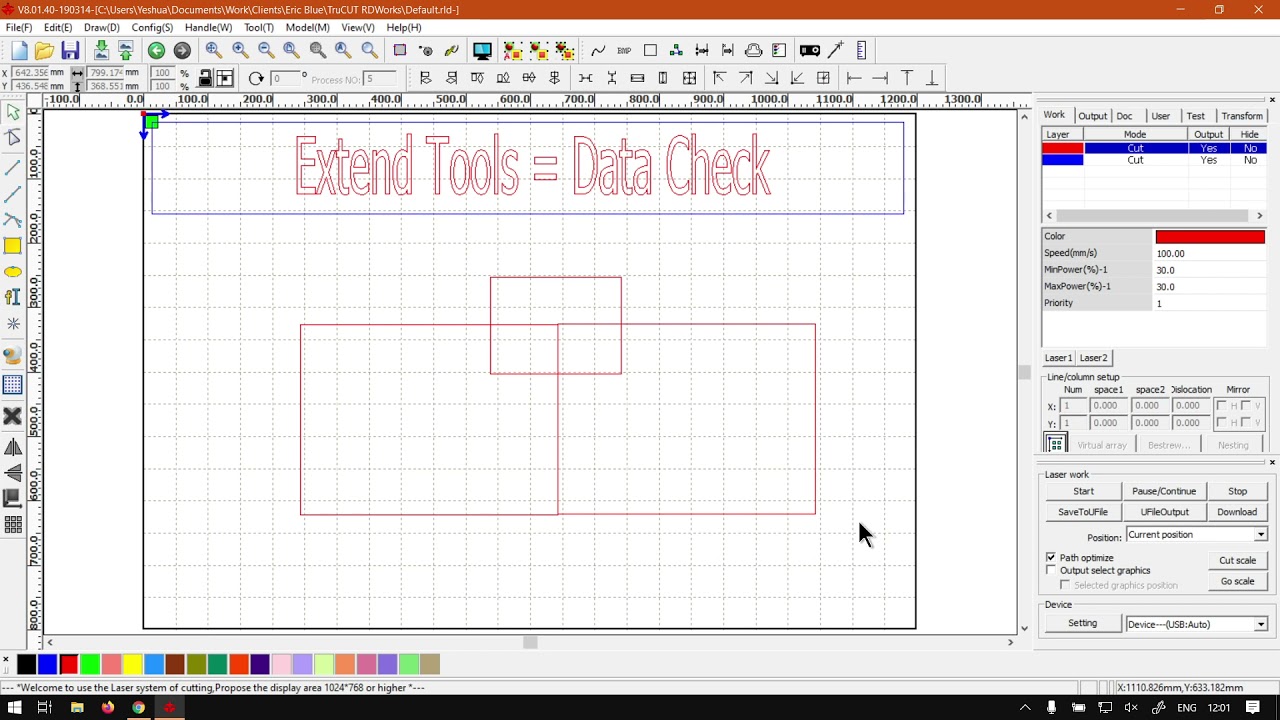

other guys in today's video. True. Cut already works. We're gonna be looking at the data cheque feature that's located on your war extend tools panel. But before that, let's have a quick intro first. Okay? Mhm. Yeah. Mm. So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, back in the programme here. Now, just a reminder. This is a mini serious covering the extent, tools, feature or extent towards panel just located on top right here. I will also leave relevant links in description. So you guys gonna follow along for any reason? You do not see your extent? Tools panel. You always navigate to your main menu on topic view. You never get to see extent, tools, and just cheque that on now. Just overview on the cheque tools. Uh, this was a tool you're going to be using before you cut or anything like that to make sure that there is no areas of problems within your design. So, um, what you can do is you, for instance, you select your tools. You want to cheque or show us your graphics, then on your extent Tools panel. We want to navigate to the data cheque. As you can see, these little blocks to go cheque marks on it. And, uh, it's not the best icon to quickly understand what it means because it's a bit small. So if you click this, you will see we have a few different options to look for. And then you can just click the cheque with your graphic selected. Now, just a quick reminder. This is not an in depth look. We're not going to be covering. Exactly how does this work? Um, this is an overview of what the future does, so I'm just gonna quickly hit on all of them Click cheque with the graphics that selected because we have nothing selected. It won't do any cheques and cheque. We can see here. We've got one error, and if resuming here, you can see it says, find cross curves, too. So now you know what to look out for and what to fix. And then you do this so everything is green, and then you can simply move on. It's a great feature for checking your stuff and get your mind that you don't need to close this. If you want to cheque top ones here, you can simply just with this open click it and said cheque again. And then if there's no errors, um, it will automatically uncheck your graphics, as you can see. So now we've got nothing selected. If we select there, he says, No selected curves for chick Otherwise, yeah, so just a quick overview. So it is a feature to cheque. If there's any errors or problems within your graphics before you laser, cut it. So it's a great feature to use or tool to refine your things before you cut it to go over it and over it or you get no more red after you fixed everything so otherwise, we're headed here to softwaretraining.co.za c o dot Today you guys will notice we've got a variety of different software to recover, and also you can isolate your search on the top of right. If you do not, however, find the video you're looking forward to hear. Request the training video and then we'll make that video for you. But otherwise thanks guys. Fortune and cheers
