TruCUT RDWorks the Auto-Close Curves Option (Part 4) File Para Settings Mini-Series

rdworks auto close curves

This feature is great when you are importing curves that has open node ends that should be closed.

With the threshold you are able to specify the how close to curves have to be to each other when you import them for them to automatically close.

This video is part of a Mini-Series.
Next video covers Combine Lines & Node Handle.
Previous video covered FPS – AI & DST Settings.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

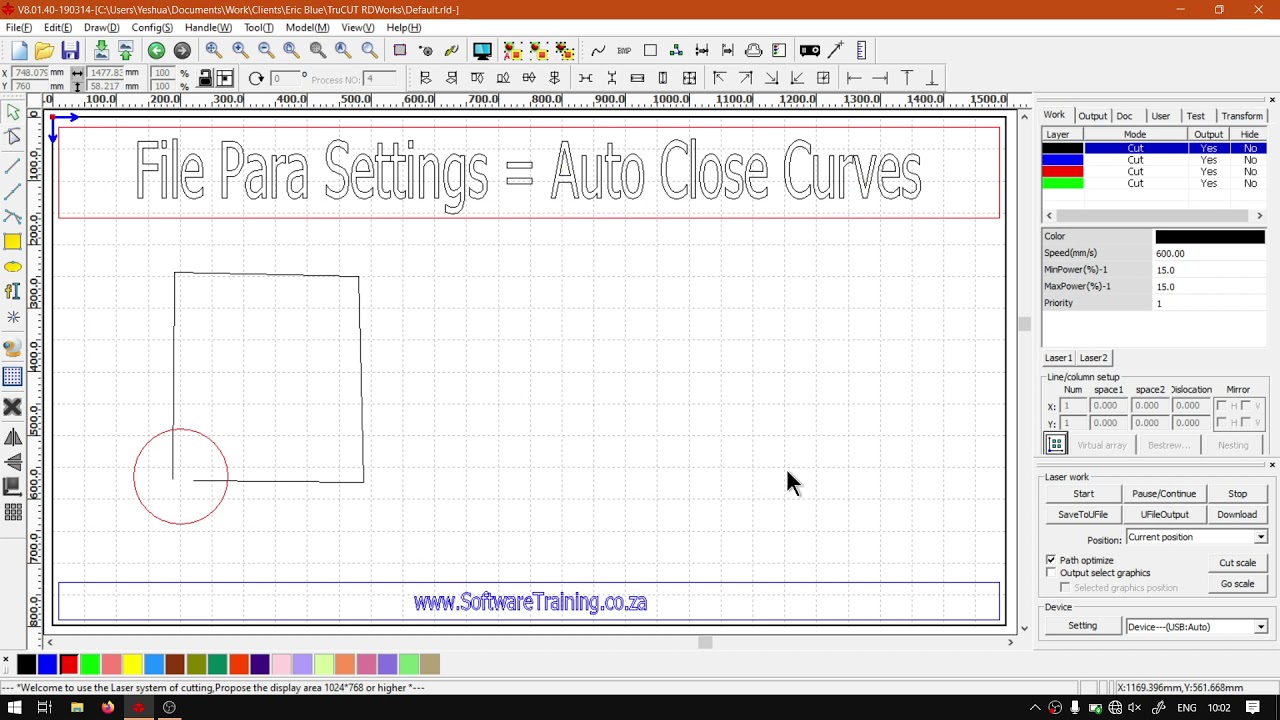

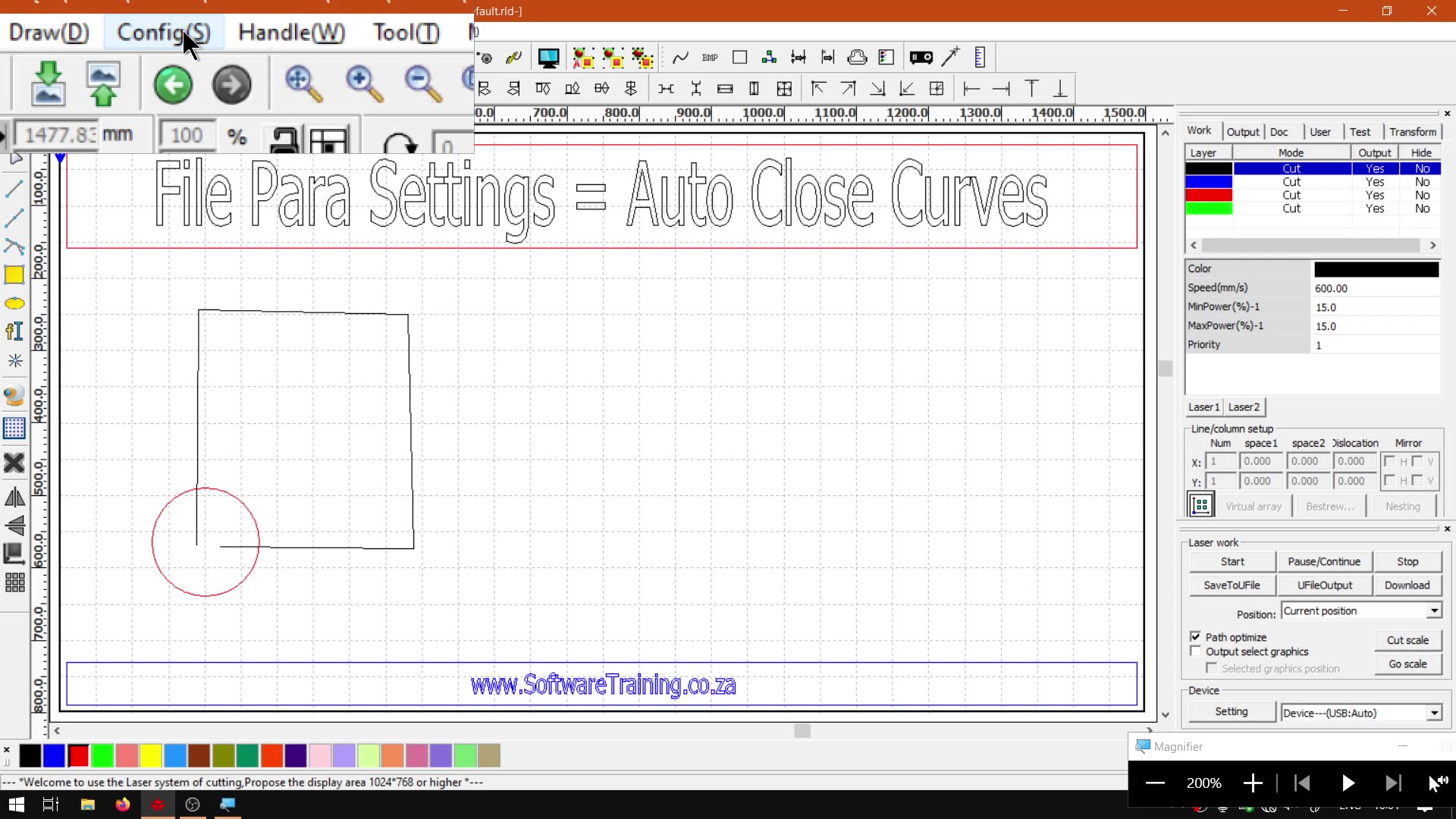

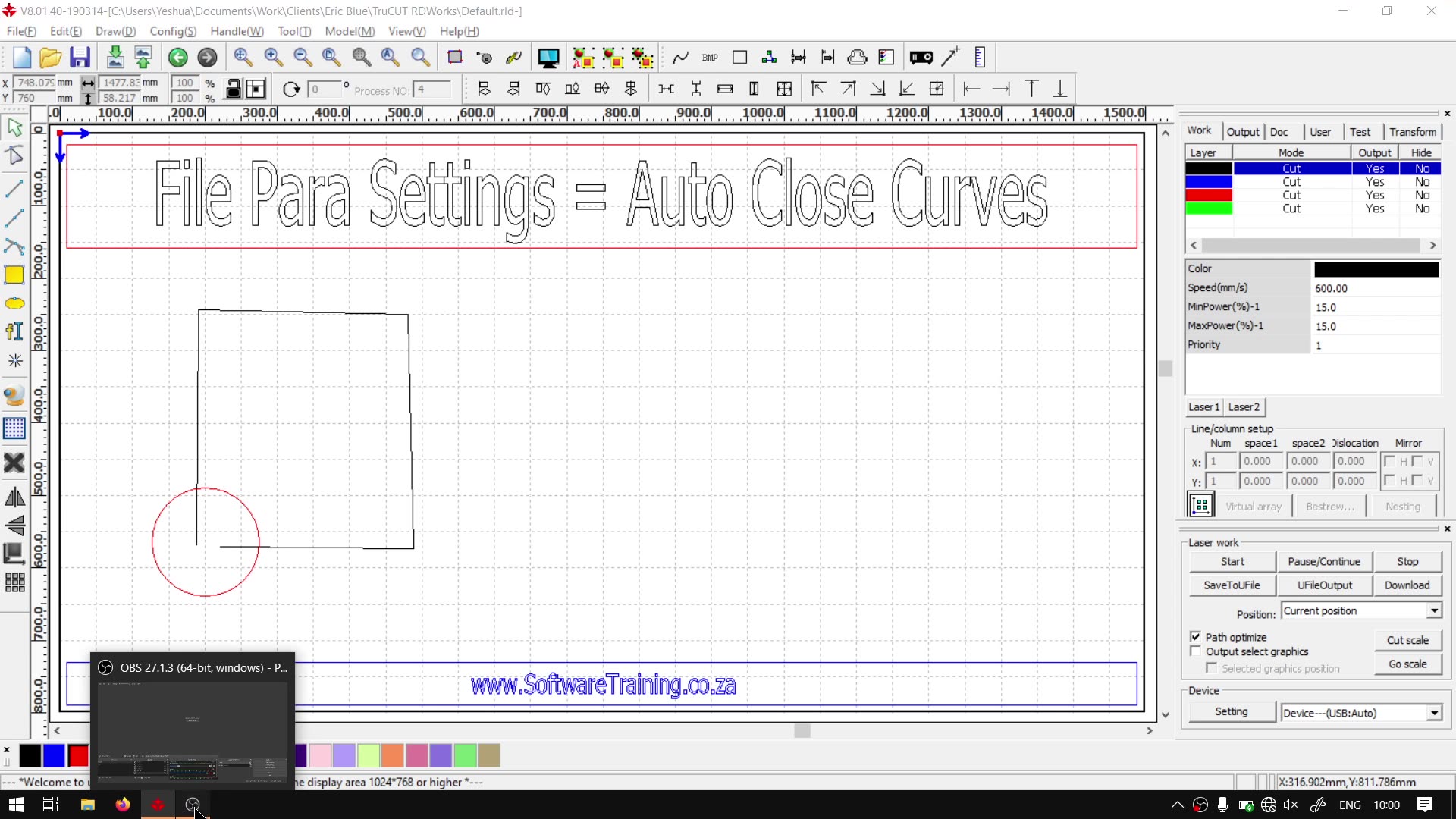

Hey guys in today's video and took out already works. We're gonna be looking at the border closed curves feature located under your file parameter settings. But before that, let's have a quick intro first. Mhm. So today's video can be found on softwaretraining.co.za c o dot z. We make short and easy to watch problem solving videos. We also have daily updates. Otherwise we're back in the programme here now. Yeah, when it comes to the actual order close feature. This is mostly for curves in that too water close. So when you're done creating it, how close can it be before it closes? But before we get into that, just a quick reminder. This is a miniseries on the file parameter settings where we've been going through all the different settings and what they do. I will also leave relevant links and description so you guys can actually follow along now if we head to the Paris settings. So if you want to adjust it, we can go here to your main menu conflict and then file paras settings under year. You'll see we've got over year auto closed curves. We've gotta close error in millimetres At the moment it is 0.10008 and the max you can say that to first, remember is three. So let's first test the quickly on 0.1. So I'm gonna zoom in here to see you guys can see. So then I'm gonna click my curve tool. Just make a simple cube like And once I get yet to the closed curve, if I click that now, I go to my edit tour and get a look. If they are connected and we can see there that they are not, that is at its current value. So now let's quickly adjust that. I'm just gonna set it to the max. I'm gonna go back there, said this to three and then we can say to 10. I think all default is three. We'll see you once I click once I come back. So now let's try the similar or the same shape some of the shapes I say. Then, uh, click that we go to a note editor and we see now is this thing closed as we can see that it is actually close. If I change the colour here, I can see that a path order closed. So this is convenient if you're closing it. I like to keep mine on the max because very often, by the time you see this icon because you want to close it if it's set to low like previously shows icon, click it and then you saw it was not closed, which can be a problem, in my opinion. So in any case, that is, uh yeah, the basics on all the closing. Let's just quickly go back That, you see, is it's still, uh, yeah. As you can see, it has changed to three. So But yeah, that concludes our little video. If we had to head here too. Uh softwaretraining.co.za hat's a That's a website. You guys off just got a variety of different Softwares. Would you cover? And also you can isolate your search on the top, right? If you do not, however, find the training videos you're looking forward to simply go here, request a training video, uh, state for which software and fill in the uniform. Then we will do our best to try and make that video for you. But otherwise thanks, guys, for watching and cheers
