TruCUT RDWorks the AI and DST Settings (Part 3) File Para Settings Video Mini-Series

rdworks ai dst settings

Next up in our list of import settings to look at, is the AI and DST format type of files.

Ai as you might know by now is for Adobe Illustrator, a popular program for making designs for multiple media platforms.

This video is part of a Mini-Series.
Next video covers FPS – Auto-Close Curves.
Previous video covered FPS – DXF Units.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

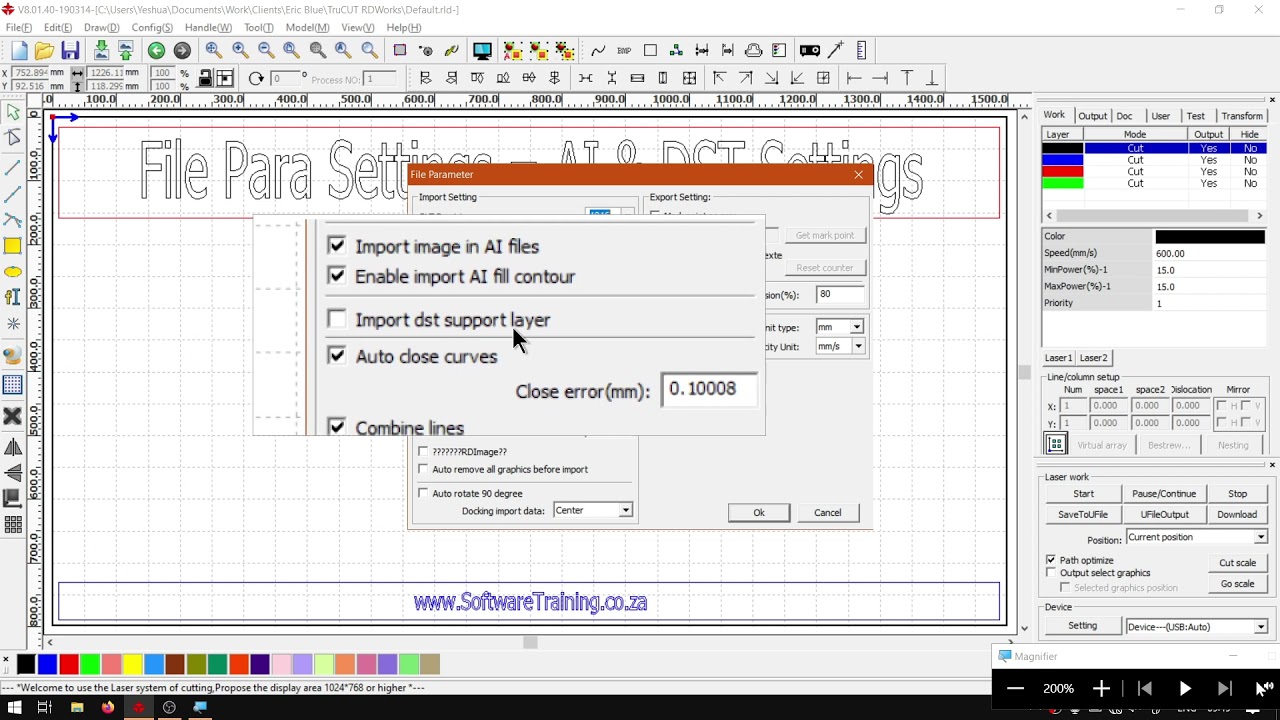

hi guys in today's video with a trick that already works, we're gonna be looking at your A I and D S t import settings. But before that, let's have a quick intro first. Mm. So today's video can be found on softwaretraining.co.za Goes here today. We make sure that easy to watch problem solving videos and we also have daily updates. Otherwise, we're back in the programme here. Now, just a quick reminder that this is a miniseries on the file para settings or the file parameter settings. And I will also leave relevant links in the description So you guys can follow along now in today's, uh, settings. Like I mentioned, we're gonna be looking at the AI and DST import settings. In order to do that, we want to go to our file para settings, which can be found here under our main menu. Go to conflict, and then we go to file paras settings. Now, once we've opened that, you guys will see under the last area we covered in the previous video, which was the d EFF units. We're gonna be looking at these two and the one under that now, the first ones we have here is for AI files, which, if you guys can remember, that is for after effects. I mean, sorry, I keep saying that, um, Adobe illustrator. So that is like a vector type programme. So it's quite popular for designing your graphics in this, and they imported into a laser cutter programme like that already works. Now from these settings, we've got input image in AI file. As you can imagine what that means. We look, if there was any images inside, you're a file. So let's say you've set up your engraving inside your AI file. Then you can simply just import it with it. It is already enabled by default. And then we have also the enable import ai full contour, which will then just enable the full contour for you. But like I mentioned but there for these two, and you are enabled. So you can simply just leave this unless you want to remove some of these options. Then under that, we've got the import DST support layer. Now what this will do This will be for D. S. T and s L S P files. This will enable the auto cat 20 or 2000 and five. Sorry. Fields, Um, information layer. You can say so with that later layer holds is like the drawings name the date and the time lost saved. So if you want that information, also, you can enable this, and then it will bring in that layer as well. It's basically like an information layer with relevant data to the actual fight importing. Now, as you can imagine, it's not that relevant in most cases, and that's why it is left off. But yeah, that concludes this little video on the A I n d E S t settings. If we had to head here to softwaretraining.co.za c o dot z A. You guys will notice we've got a variety of different Softwares will recover, and also you can isolate your search on the top of right. If you do not, however, find the training videos you're looking forward. Just go. Yeah, request the training video filling the uniform. Let us know for which software, and then we'll do our best to try and make that video for you. But otherwise thanks guys for watching and cheers
