TruCUT RDWorks DXF Import Units and Para Settings (Part 2) File Para Settings Mini-Series

rdworks dxf import

In this section we will be looking at a few DXF file format import settings within the program.

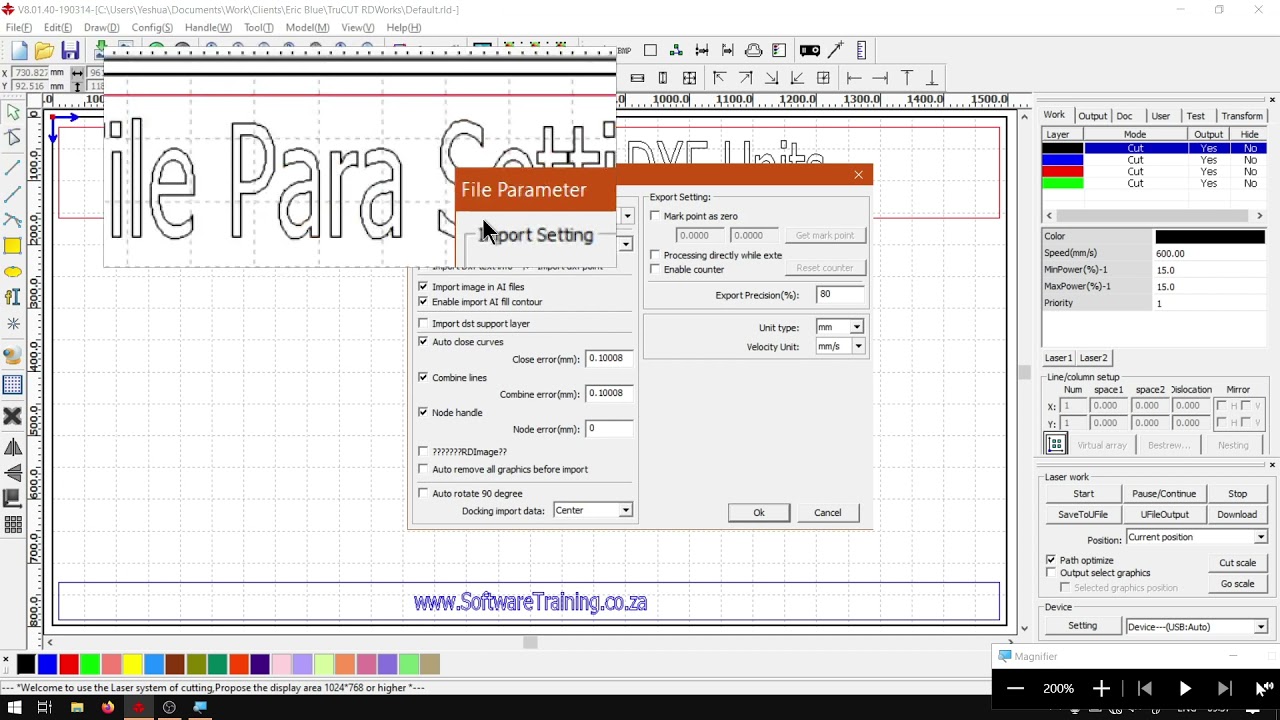

When it comes to the DXF import options found under the File Para Settings dialog tab, you will notice that we can set more than just the unit type.

This video is part of a Mini-Series.
Next video covers FPS – AI & DST Settings.
Previous video covered FPS – PLT Precision.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, In today's video, we're gonna be looking at the D X F units and, um, one or two other import options, and that's all before triggered the works. But before that, let's have a quick intro first. Mm. Uh uh, So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, we're back in the programme here and now I apologise for my software. Be looking a bit different in the process. We're having this thing called load shedding here in South Africa. So I've had to change my work flow just a little bit. Yeah, but it seems to be working fine for now. Now, also just on a side note. This is a miniseries on the file parameter settings. And, uh, I will leave relevant links in the description, as you guys can follow along. Now, when it comes to the actual, um, the x f units. Um, yeah, If we want to set that up, we want to go to our main menu on top, go to config, and then we go to foul parameter settings or Paris settings and just move my magnifying glass year. So it is not in the way. It's right here, right at the bottom. So now, once again called fake for Paris settings. And then there we go. So with this dialogue box, you'll see the second main area years. Damn d sf units. Previously we looked at the plt precision. So under the DSF units we've got here the actual units that you can choose from, which is millimetres, centimetres, inches or custom Quite nice that they've got a custom option there and then under that, we've got two options called import GXF text info and import GXF point. We were the first one. If this is unchecked, then what we'll do is we'll import the information of the graphics, but not the actual text itself. You will see by default. This is D selected. So I would recommend just keep it like that Unless you want the information of the text as well, then import the exact point versus enable it will in point import the actual point information as well for the d eff file. So it's real simple and yeah, that concludes this little video. So if we had to head here, too softwaretraining.co.za c o dot z. You guys don't notice you've got a variety of different Softwares we do cover. And also you can isolate your search on the top, right? If you do not find the video you're looking for, just simply go here, requests a training video, fill in the uniform, let us know for which software, and then we will do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
