FabriCAM Software Add a Bridge from CAM Secondary (Part 9) Step by Step Video Tutorial

fabricam add bridge from cam

Now when you have multiple Parts but need them joined for the cutting process, then adding a Bridge will comes in very handy.

But like with lots of the features from the CAM Secondary Toolbar, You are able to reverse the process.

This video is part of a Mini-Series.
Next video covers CAM ST Delete Bridge.
Previous video covered CAM ST Delete Microjoints.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

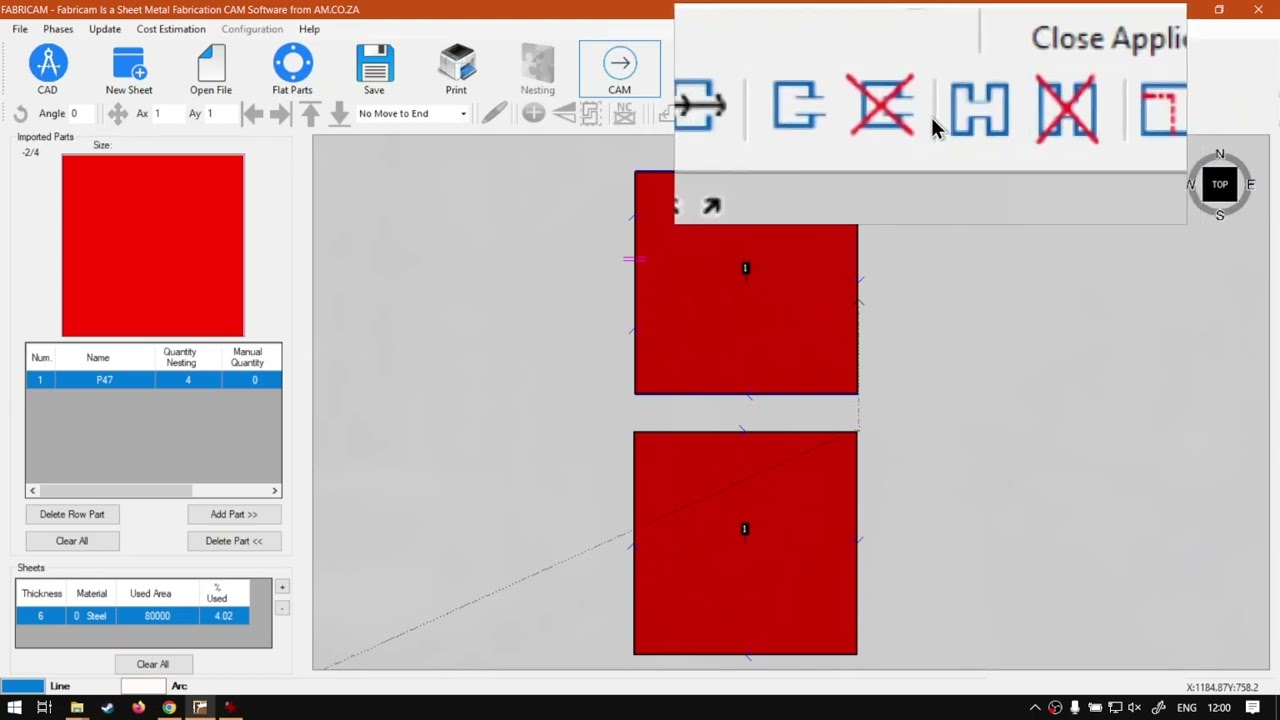

All right, guys, In today's video, we're gonna be looking at adding a bridge to multiple or bridges to multiple shapes and parts within fabric camp. And this will be for the camp feature. But before all of that, let's have a quick interest first. So today's video can be found on softwaretraining.co.za z. We make sure and easy to watch problem solving videos. And we also have daily updates always weird into the programme here. Now, in the previous video, we looked at adding micro joints to these shapes. I'm gonna use these same two shapes and we're just gonna quickly add a bridge now in order to set the width of a bridge. This are pretty much make a slight joint between two shapes. So if you wanna I'm connected. Uh, there's multiple reasons why you want to do this, but I'm just gonna run through the basic of how to set it up. Now, before we jump into it, I'm gonna quickly show you where we adjust with of these bridges. So I'm gonna go here to configuration on the main toolbar. Now, keep in mind if we are in command mode the configuration is not available. So keep that in mind you out of ca mode, Then we click configuration And then on top year, the same place we adjusted the micro joints. We've got this micro joints and bridges and remnants, so I'm gonna open bridges. And then the third option here is how bridges dimensions the moment it is set to one mil. So I'm gonna keep it on that. But this is where you can adjust it. Then what I'm gonna do, I'm gonna go into Kamiya, and then we want to head to adding a bridge. Now it is right next to the micro joints. And then we've got bridges. As you can see, they sub categorise them together. I mean, these two together. And then these three together so different features will be sub categorised with a little line together. So that here we've got add bridge, I'm going to click that. And then what you can do is you simply click where you want to add a bridge, and then you can even go off centred. If you want it, you can add a little breach there between the two. So now I'm just gonna hit the cutting preview, uh, option here so we can see what's happening. We can see it makes a little bridge there comes back. And now these two shapes will be joined when you finally cut it, which is quite convenient. So just a quick recap again. You can obviously see the configuration if you're not in camp under, uh, micro joints, bridges and remnants and then otherwise in here, you want to make sure you go to your bridge, click it, click on the edge and join it with another edge or another shape. But yeah, otherwise, if we head here to softwaretraining.co.za. You guys will notice you've got a variety of different Softwares we do cover, and you can also isolate your search here on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go here, requested training video, filling the uniform, and then we'll do our best to try and make that for you. But otherwise thanks guys for watching and cheers
