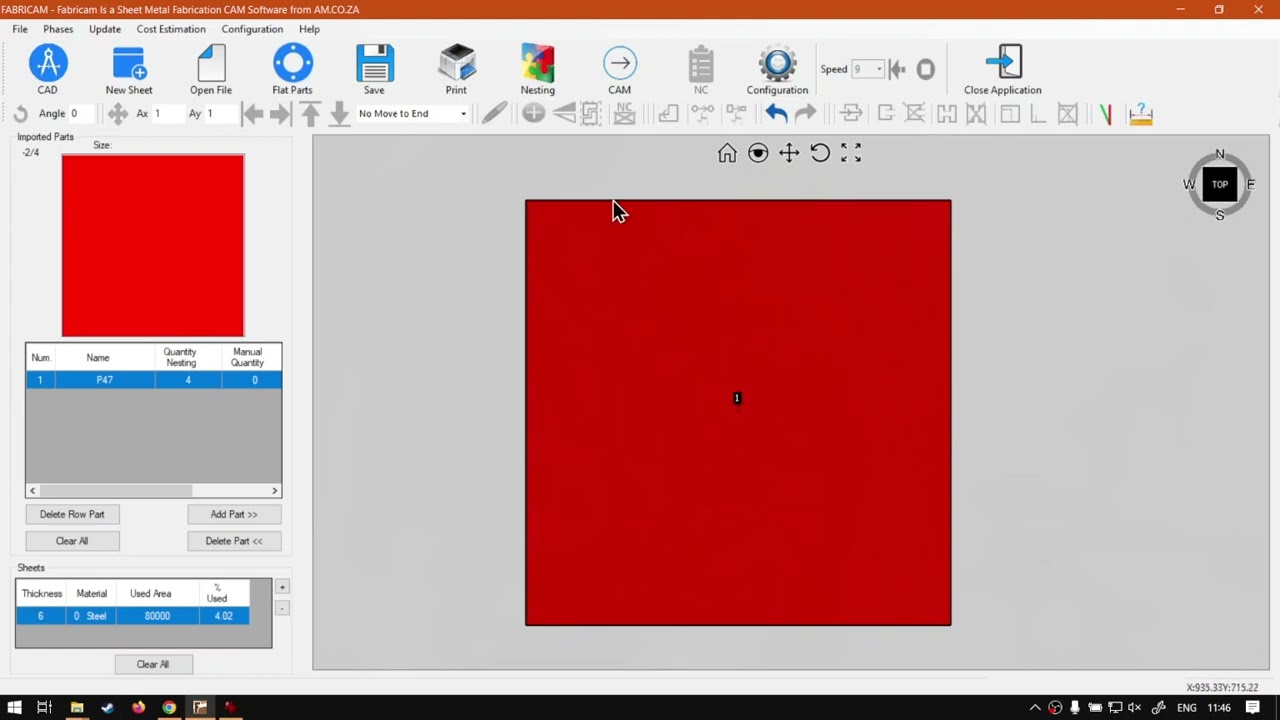

FabriCAM Software CAM S-Toolbar Delete Microjoints (Part 8) Step by Step Video Tutorial

fabricam delete microjoints toolbar

The great part of a lot of these CAM features located on the Secondary Toolbar, is that you are able to remove them as well.

This is great if you have made changes and can no longer undo all the way back to there original state.

This video is part of a Mini-Series.
Next video covers CAM ST Add Bridge.
Previous video covered CAM ST Add Microjoints.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

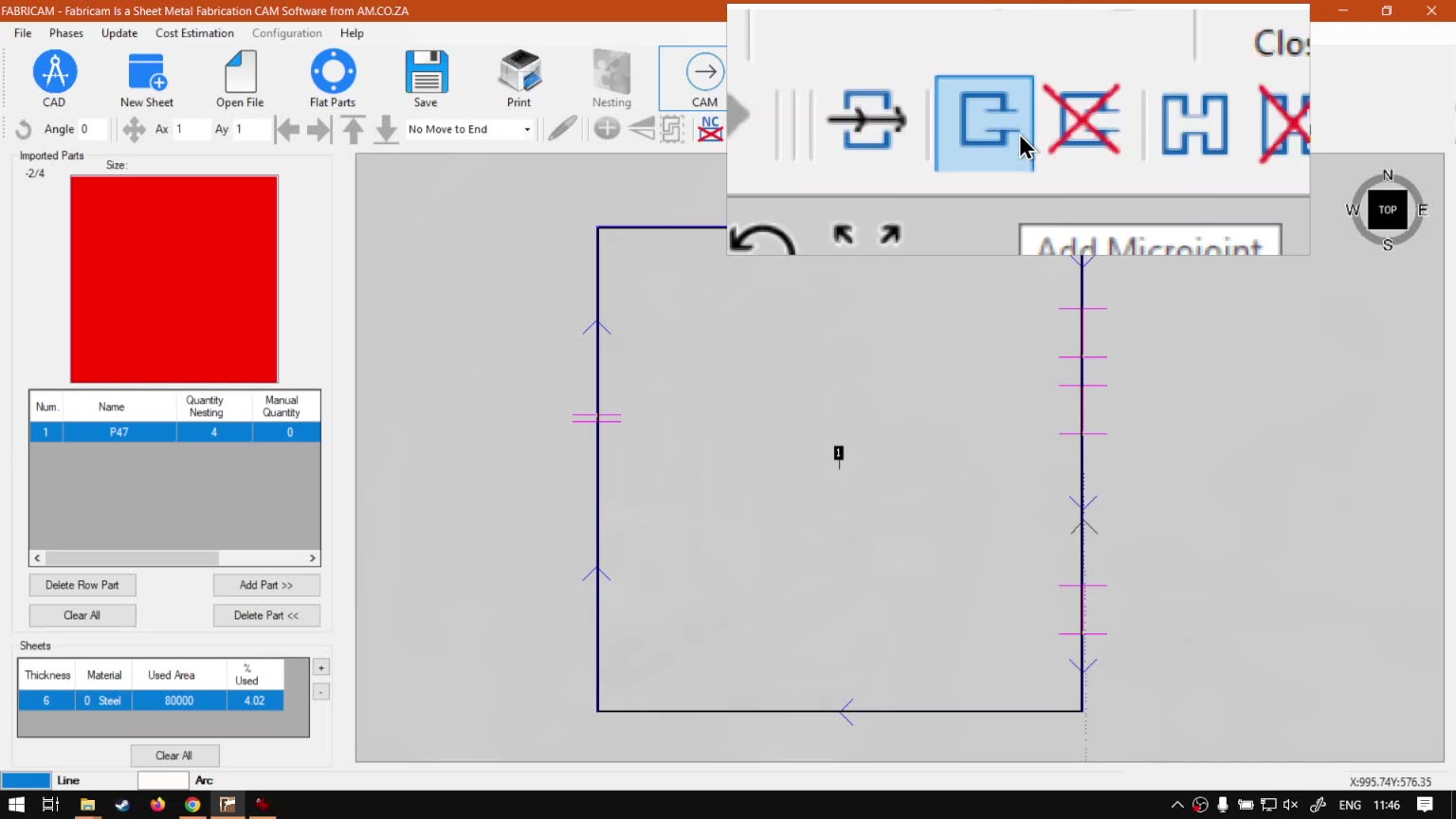

How are you guys? In today's video? We're going to quickly run over how to delete the micro joints we have created. But before that, let's have a quick intro first, So today's video can be found on softwaretraining.co.za. We make sure an easy to watch problem solving videos and we also have daily updates. Otherwise we head into the programme here. So now in the previous video, we looked at adding micro joints to your design. Now, at any point, if you feel like you no longer need them or you get a little prototype and you don't like where they are located, you can always remove them. So to remove them is pretty simple. We kind of briefly went through it in the previous video, but I'm just gonna quickly go through it here again. Just so you have an idea. So the first thing you want to do is go into your camp feature and then I'm gonna select the shape you don't need to, but it's just so we can see the micro joints a little bit better here on screen. Then what you wanna do like over here? these micro joints are way too big and way too many. We already have one here on the left. So I'll keep the hour. So then on our secondary to be on top, I'm gonna go to the button next to add Michael joint, which will be the lead micro joint. Now, this one works slightly different to the adding one. So if you see there, I've just deleted it. Now, if I just click on the next one, nothing happens. So it's something to keep in mind. You need to every time click on this If you want to remove a micro joint. I do prefer this, um, as it, uh, It's a bit more of a safe way to work. So remember, actually the elite once you didn't want to, but yeah, otherwise, that is it. On removing micro joints. Obviously, this feature will only work if you have micro joints. So, like this one, we can remove it if we wanted to or, um, remove unwanted one. So just to recap, you wanna go, make sure you're in your camp, then go to the one next to add Michael John, which is remove or delete micro joints and select or click on the ones that you want to remove, but manually selecting your feature every time. Just keep that in mind, but yeah, otherwise that is it. On the leading micro joints. If we had to head here to softwaretraining.co.za. You guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search here on the top, right? If you do not, however, find the training videos you're looking forward. Just simply go. Yeah, request the training video will in the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
