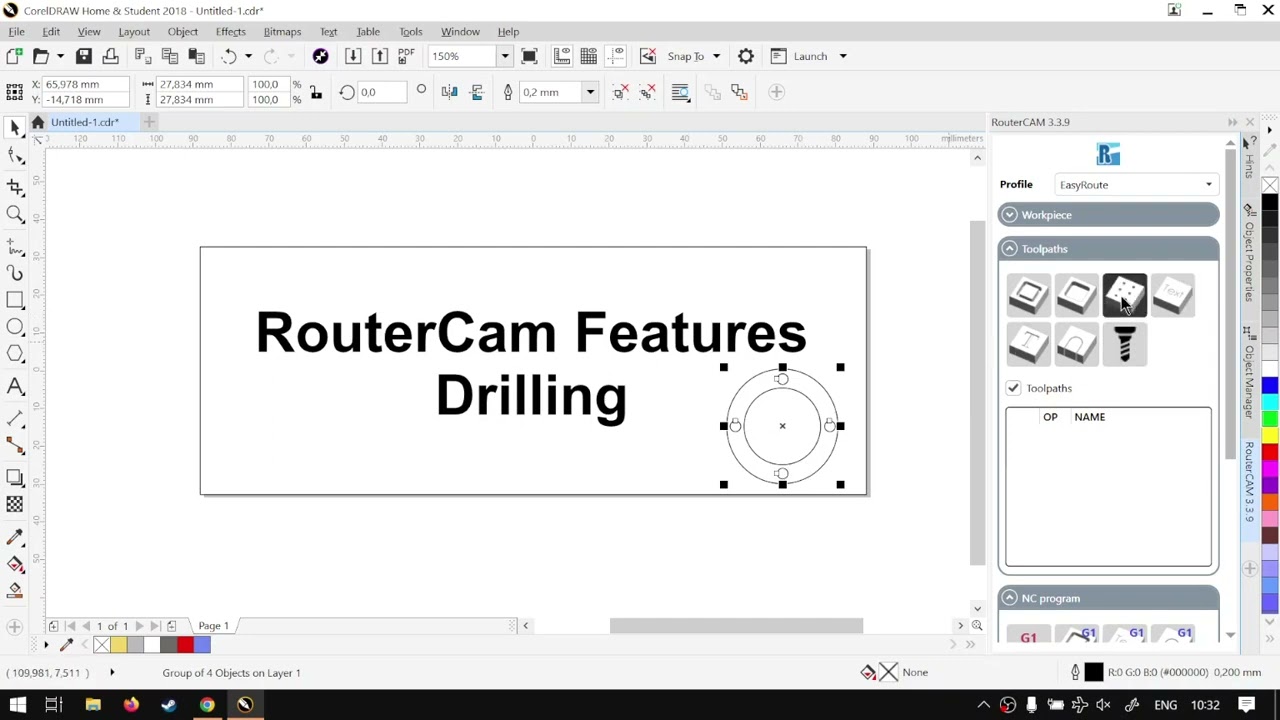

CorelDraw RouterCAM the Plugin Feature for Drilling (Part 7), Step by Step Video Tutorial

When it comes to making set size holes within your design, then the Drilling feature that comes with the plugin will be the tool to use.

You are able to with this feature setup the exact location and size for the drilling of these holes.

This video is part of a Mini-Series.
Next video covers 3D Vis Overview.
Previous video covered RouterCAM Pocketing.

Video Transcript

Hi guys. In today's video, we're gonna be looking at Roger Camps feature for grilling. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za Today. We make sure it's easy to watch problem solving videos, and we also have daily updates otherwise, back on the programme here now. Yeah, we've covered quite a few features already or had overviews. Same with drilling is kind of overview. Then we'll go into more depth on whether actual settings are for this feature. Now, when it comes to the drilling, Uh, yeah, quick drilling. The plug in provides a drill operation. Um, which, Yeah, you can find it over here. As we can see, drilling obviously have to select what you want. Drill? Um, yeah. And this will create dropped points in the centre of each object from any drawing object. So whatever you have selected in the centre obviously sent off each little shape. And then when the programme is created to draw circles, added, uh, all the points, you have to choose between different reaction options. Trading can be done without reaction, so it's also to keep in mind with reaction to the plunge height or with a reaction to the previous cut play. So what that means is you can, actually if something has sunk in, you can adjust the drawer height. Oh, don't start drilling from the new plane. Um, so it doesn't go to the port to shallow, which is a rather convenient and then, um, just click it and then all it will open up settings that you can see it. That's something also, to keep in mind with drilling, especially. It is quite important to, um, option that you're gonna be using so basically the draw, but because that will determine the, um the diameter of the width and height of the whole. But yeah, otherwise that is it. On brother camps featured grilling. Um, in the meanwhile before you move on to the next half, the more in depth. If we head here to softwaretraining.co.za. You guys will notice We've got a variety of different Softwares we do cover over here, and you can isolate your search on the top, right? If you do not, however, find a training video you're looking for just simply request a training video filling the uniform. Then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
