TruCUT RDWorks Settings for the (SWP) Output Tab (Part 5) System Work Plate Mini-Series

rdworks swp output tab

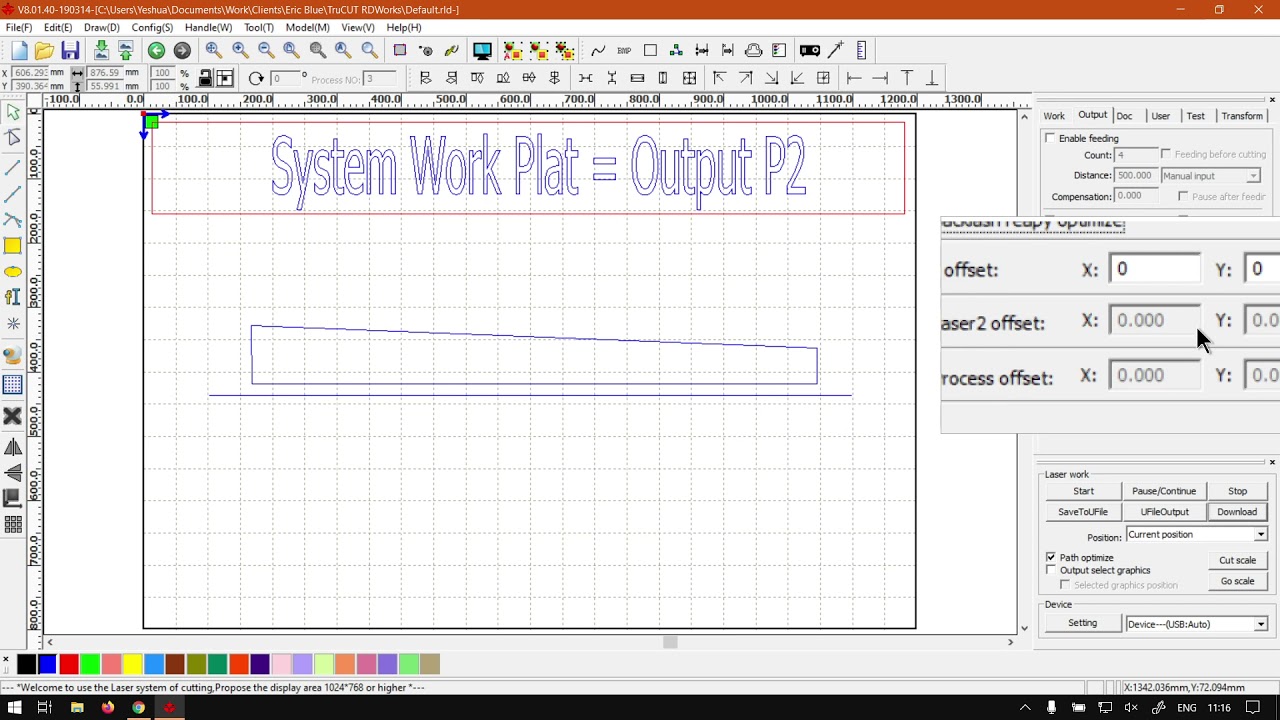

In this part of the Output tab, we have a few settings designed for Backlash, Laser 2 and Process.

Most of these extra setting as you might notice in the video is for setting the offsets of these tools.

This video is part of a Mini-Series.
Next video covers Document Management Tab.
Previous video covered Output Tab – Feeding.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, In today's video, we're gonna be looking at part two for the output tab located on your system work place. And this will be four to cut. Already works. But before that, let's have a quick intro fist. Today's video can be found a softwaretraining.co.za c o dot z A. We make sure an easy to watch problem solving videos, and we also have daily updates. Otherwise we had to head back in the programme. Yeah, just a quick reminder. This is a very serious on a work or system workplace, and I will also leave relevant links in description. So you guys actually follow along. So now in today's video is part two of the good tab, which can be found here on our control panel system. Workplace. It's the second tap. No, we're gonna be looking at the backlash. I don't know what they mentioned. Yeah, pay or something. Any case, I kind of know it as the backlash. Repeat, optimise. So, um, over here we can set your backlash and so forth. And in general, if you get black backlash, then you can experience some uneven graphics when it's scanned. And, uh, it's normally due to the belt tension media Too tight talk too loose and so forth. Now, over here, if you experience it, you can always try. Um uh, try to optimise it. And in general, also, it is relevant to your speed so you can try and increase this according to your speed. But like with most of these settings, to take some experimenting to find the right values and so forth, then under that, we've got the laser to offset. Now, if you have a laser cutter that comes with two power tubes or two laser tubes, then you can always do the offset with this. And normally what you'll do is what's popular, and you'll use one laser for cutting and another for engraving. And then under that we've got the actual process offset. But yeah, so it's a output has got some more advanced features, you can say, but a lot of them you unfortunately do need to experiment with to get a good value that works for you. But otherwise, if we had to wait here to softwaretraining.co.za c o dot z A. You guys will notice we've got a variety of different software to recover. And also you can't isolate your search on the top of right type in what you're looking for and hit the little magnifying glass button and it will try to find it. We'll find the results, and if you do not find any videos, you're looking forward. You can always go a year, request the training video filling in uniform, and then we will make that video for you. Otherwise, thanks, guys, for watching and cheers.
