TruCUT RDWorks Output Tab Material Feeding Feature (Part 4) System Work Plate Mini-Series

rdworks material feeding feature

This is a great feature if your Laser cutter comes with a Feeding tray for large materials.

There are a few settings for this feature if you need to refine the feeding process or do some troubleshooting.

This video is part of a Mini-Series.
Next video covers Output Tab – Part 2.
Previous video covered Work Tab – Arrays.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

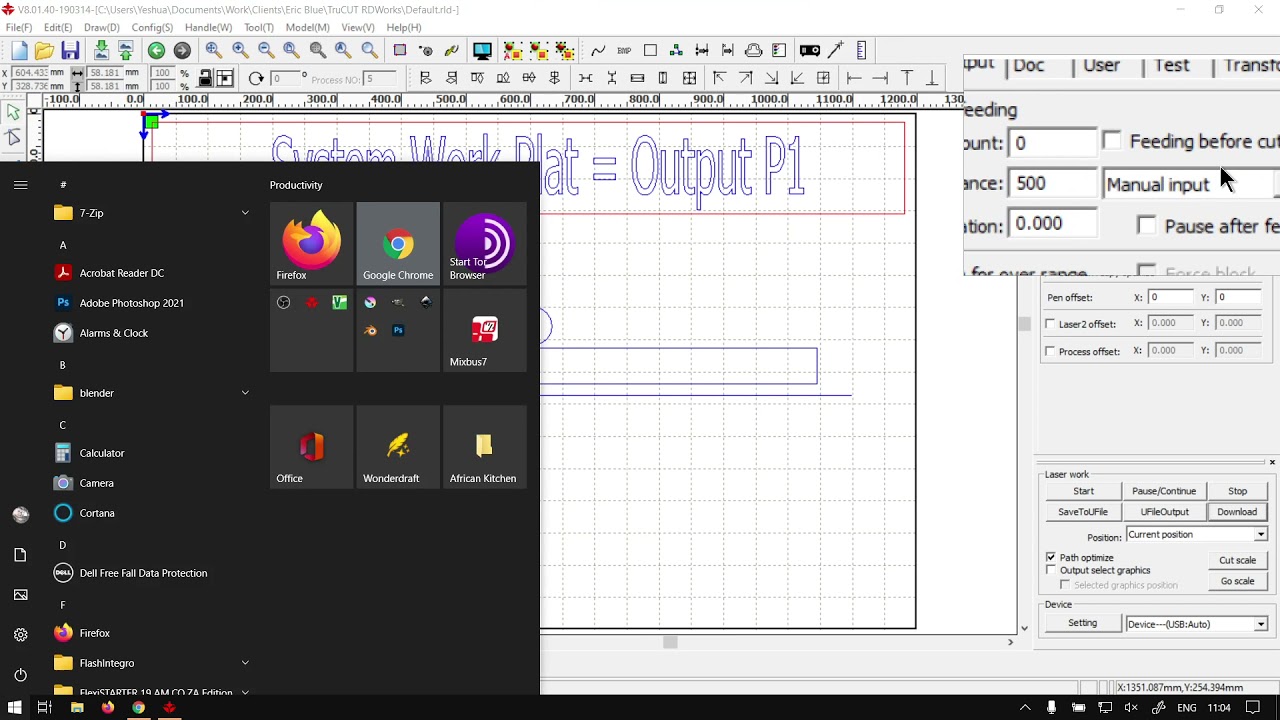

Hi guys in today's video with Truecar already works. We're gonna be looking at the second tap for the system work plate, which will be the output. But before that, let's have a quick intro first, Uh mm. So today's video can be found on softwaretraining.co.za hat's here today. We make short and easy to watch problem solving videos and we also have daily updates otherwise, back on the programme here. Now, just a quick reminder. This is a really serious or no system work played, which is the panel iana right and also known as the control panel. Also leave relevant links and description so you guys can follow along and then also on a side note in case you're, uh, panel is not open, You can always go to your view on your main menu and then he navigates where we find the system. Work played well, today's video We're gonna be looking at the first section now. This is only relevant if you have laser colour with the feeder. So if you do not leave this one on, and if you do and you want to use the fear, you can always enable this If we enable it. We have a few different options here now, just for those that don't know if it is kind of like you can, let's say you've got your material and you can have it longer than normal and it will feed it in. Let's say, yeah, I want to make multiple copies Cuts of the same design and you feed it in. It cuts it feeds in the next piece, cut it and so forth. Now there's quite a few settings here. Um, I'm only gonna be covering the most essential. The rest is kind of like you have to trial and error to try and find out what's the best fitting for you. So first of all year, we've got counting distance how this will work out. How many counter is gonna do it for? Let's say you want to cut four of them, and then every time I must go at a 500 unit or material unit distance. So then I'll go 500 for five and 454 in any case. So now let's say for some reason it has stopped, um, on the last cut and didn't feed it. So after that, it was done. Now you want to carry on doing it. You can always go feed before cutting. So this way, well, first feed and then I'll cut where normally, if you fit it already, it's going to cut and then feed it. So that's all that settings for and then under the, uh, we also have a few settings here for manual input and so forth. I normally would recommend you just leave it on manual input. Then we've got stuff like compensation pause after feeding. So let's say you want to make sure every time everything is right materials nicely aligned and so forth. You can always say pause after fees to cut, feed it and pulse. Then also, you can do the partition for over range, and you can also have a few settings in year. If you want to refine your feelings, Yeah, so otherwise. Yeah, that is it on the first few, uh, settings here. But like I mentioned, if you have a feeder, make sure you enable not make sure, but I'm enable us. If you don't have one, make sure it's the same. Otherwise, we had to get here to softwaretraining.co.za C o dot z You guys will notice we've got a variety of different software to recover. And also you can isolate your search on the top of right. If you do not, however, find the videos. You're looking for Jessica here. Request the training video and then we will make that video for you. But otherwise thanks, guys for watching and cheers.
