System Work Plats Work Tab for Arrays in TruCUT RDWorks Software (Part 3)

rdworks arrays work tab

The Arrays that can be found under the System Work Plat, it can be viewed similar to the Matrix Copy.

Even though the Arrays is in many ways similar to the Matrix Copy, you will find that the Arrays have way more options available.

This video is part of a Mini-Series.
Next video covers Output Tab – Feeding.
Previous video covered Work Tab – Key Settings.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

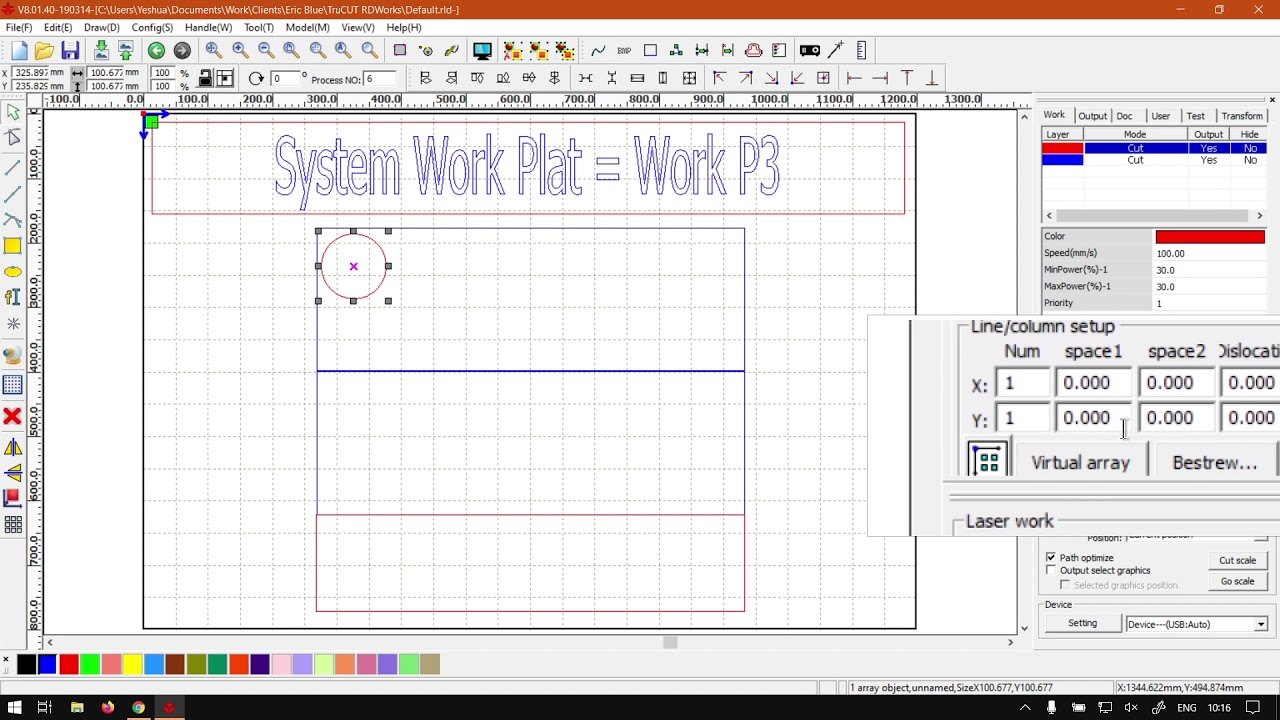

Hey, guys. In today's video, we're gonna be looking at the system work plate, and it will be the part three, which will be the array area. And then also this will be for Trick. It already works. Otherwise, let's have a quick intro first. Mm, yeah, yeah. So today's video can be found on softwaretraining.co.za c A. That's a day we make sure that easy to watch problem solving videos. And we also have daily updates. Otherwise, we have to get back in the programme here. Now, just a quick reminder. This is a miniseries on the system work plate, and I also leave relevant links in the description So you guys can actually follow along now with the next section with, uh, what they call it, your line columns set up. What this basically will do is it will be a quick way of making duplicates. You can say of a selected shape without having to manually make duplicates of it or using the Matrix copy. We'll see you at the bottom. So a nice things Like I said, you can use it on selected items and you can customise how many are raise. You want So now if we look on the right here on the section, we have a few different options. So we've got numb for numbers spacing, one spacing to and this location. We also have mirrors, horizontal, vertical, horizontal, vertical and the reason why there's normally two of each. It is so that you can set first column and then the second column separately. But I will show you guys now then every year we kind of have. You can say the origin point of whether they will be happening. From the moment you can see at the top left corner, you simply click this. You can change bottom, right bottom left and so forth. Virtual Ray, This will kind of make you a display of what the rail will look like. It shoot. We've got be still our trail and show what the full name for that is. And then this will basically make quick works of it, where you can fill your entire design area quickly with a So if you didn't want to have customer raised, let's say you want to cut this out different shapes on the inside, then will not be using that and then on the right here. We've got nesting, which is a bit more advanced version of the ray, and we can also be actual array. So once we've set up the way we like it, click that and then it will turn it into an actual array so we can customise everyone to everyone to make custom movements or rotations. We can do that. So I'm not gonna go into depth with most of these. I'm just gonna show you a quick run through all these top ones and what they do, obviously, the mirror we will not see cause we're working with the circle. Your clips, The rest should be You should be able to see it. So first of all, we've got the X and Y numbers. So let's make this about five. I'm gonna make this one two and you'll see as you click on the new box. Ultimately updated. Now, for some reason, you didn't see these shapes. Go to your conflict with your main menu and you show a race. Otherwise I'll just be a little boxes. Then we've got space in here, which is what this will do is, uh let's make this 20 and then click here. You can see spaces every second line. You can say so. Now we can use spacing to the right, also to any If you want to make custom space and you can always do that and then spacing for that vertical as well. Mm. Obviously this one. I don't have to say it because if we had multiple rows, then the next value becomes important. Uh, and desolation. We can basically do like an offset, um, off the rose. So obviously I've had more rose. I would play around with next, buddy. Otherwise, Yeah, that is pretty much it. It's rather simple. You can set the origin point if you want your right to be the different corner. You can also do that. Otherwise, we had year to softwaretraining.co.za . That's here that you guys on that we've got a variety of different Softwares will recover, and also you can isolate. You're searching. That's all right. If you do not however, find the village looking forward to a year requested training video and we will make that video for you. But otherwise thanks, guys for watching and cheers
