Setting Up Laser Devices on the Laser Work Panel in TruCUT RDWorks (Part 9)

rdworks setup laser machine

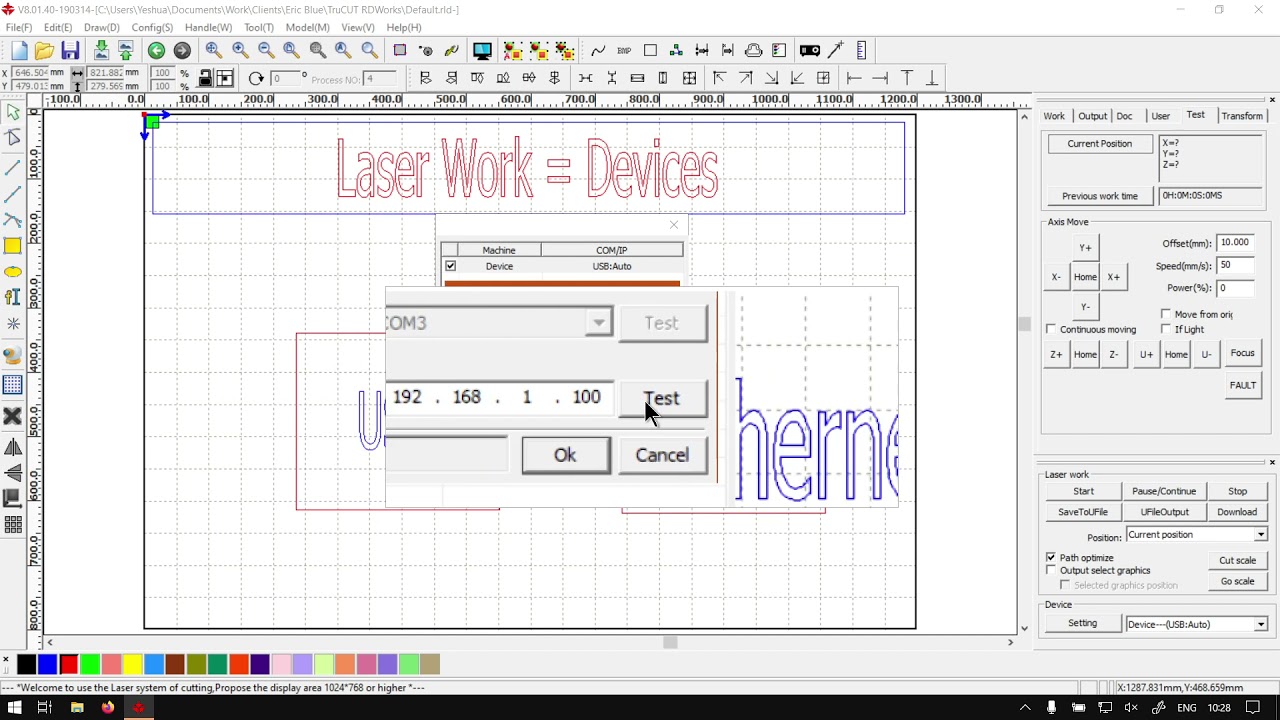

When it comes to Devices that you are able to setup, we have two main options, Coms and Ethernet.

By default, you should have an automatic USB coms port device, which will auto scan for any connected devices via USB.

This video is part of a Mini-Series.
Previous video covered Select Graphics.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, in today's video and already works, we're gonna be looking at your device settings under the lazy work panel. But before that, let's have a quick intro first. Mm mm. So today's video can be found on softwaretraining.co.za. We make sure and easy to watch problem solving videos. We also have daily updates otherwise, back in the programme. Yeah. Now, just a quick reminder. This is a miniseries on the laser work panel, and this should be the last video for the series. So thank you guys for joining. And if you are new, you can always head back in the description if you wanna go to previous videos. Otherwise, if we, um yeah, I also just one last thing. If you are new, if you wanna. If you don't see a lot of work panel, you always go to your main menu on top of you and process control panel. Sorry. Process Control bar. And then you can talk to Elizabeth TV. That was the last seven years of devices which will be located right on the bottom. Now, from the drop down, many year by default, we have um, USB auto. So it's ultimately trying to see which USB is connected and so forth. Now, what you can do is you can go to settings. Let's say you've got more devices you wanna add, and from the last year, we can see already what we have active, which is the USB auto, and then what we can do at the bottom. We have a few options here, So first of all, we've got add. So then you can add a new device. You can call it whatever you want. Test. Then you can choose next to you. Wanted to be USB or web, so if it's just be, you can go. Yes, select the right calm and then you can always tested you on the right. If you're not sure if it is the right one until you find the right one, you can also go Web. So if you have a cover maybe set up over the network or something in that line, then you can type in the I P tested to make sure it's working. And finally, when you're happy, you just click. OK, they could cancel for now, and then there is something to keep in mind. Most features within the programme requires a device connected in order for it to work correctly. So if you're getting certain areas like I do, it is because you do not currently have a device um, connected Now what you can't Siddhu is like, Let's say you want to make changes to your device. You can always go to your modified button at the bottom. Click that, and then we'll pop up the options so you can see it. But you will see it comes by default with a device called photo, and that's when you can't actually change, which is a very handy one. It's a bit like plug and play, you can say so I definitely recommend. Don't delete that one. I'm not sure if you can, but I don't want to try. And then let's say you've set up with advice and you're no longer using it or if you set it up wrong and rather just gonna create a new one and you can always just selected and then click the delete. Then, after you have set up your device, your new this advice before you go to cut you can or start your cut. You can always go here on the drop down menu, select the new device and then start your cuts. You can also have multiple devices enabled, maybe for different cutting purposes. Maybe you've got a small one, Big one and so forth. Otherwise, yeah, that covers the device settings under their laser works panel. And just once again, thanks guys for joining me on this little miniseries. And then if we had a year to softwaretraining.co.za hat's the other day. You guys are not super variety of different software through to cover, and also you can isolate your search on the top of the right. And if you do not find what you're looking for, just go here, requests a training video, fill in the mini form. Then we will make that video for you. Otherwise, thanks, guys, for watching and cheers
