Laser Work Panel Only Output Selected Graphics in TruCUT RDWorks (Part 8)

rdworks output selected graphics

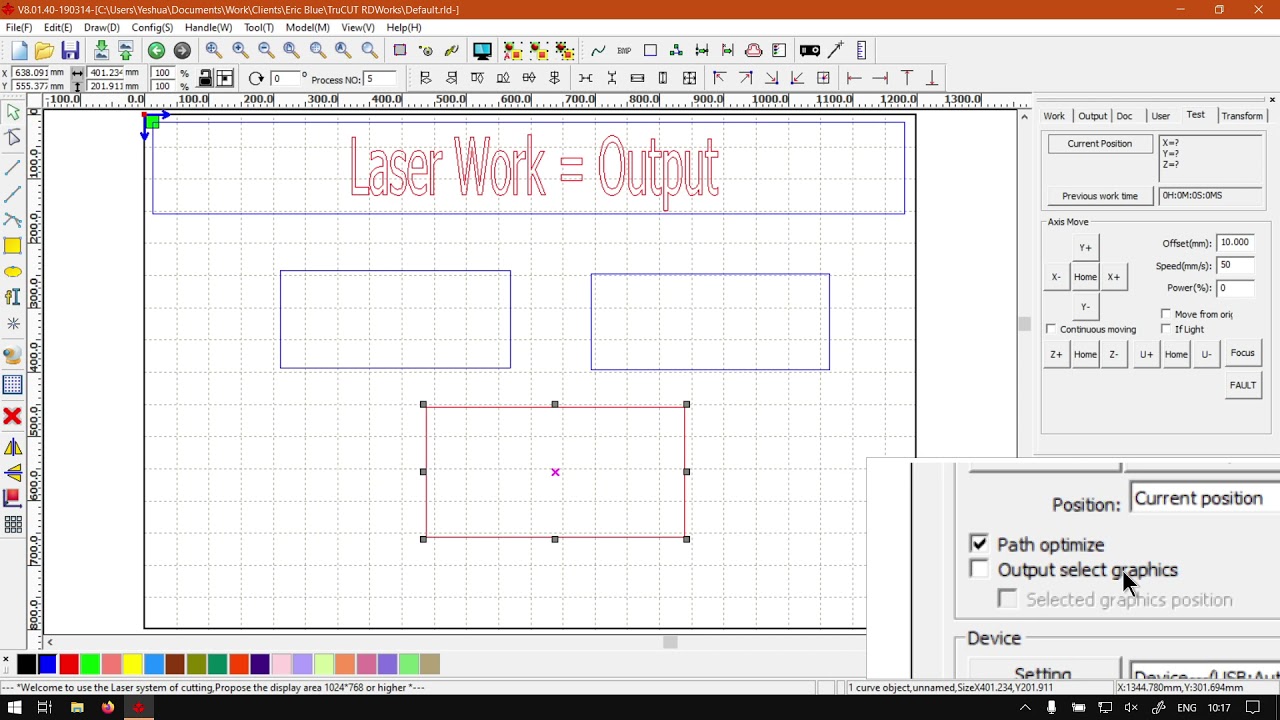

With the Laser Work Output Select Graphics you are able only cut the selected graphics within the design.

When it comes to this feature, you might also want to set the laser origin to be relevant to the selection and no longer the design area.

This video is part of a Mini-Series.
Next video covers Device Settings.
Previous video covered Path Optimize.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

other guys in today's video with that already works, we're gonna be looking at the feature under your lazy work for the output Select graphics. But before that, let's have a quick intro first, MM, mhm. So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates otherwise, back in the programme, Yeah, and now Yeah, like normally, if for some reason you cannot see your laser works panel, you can always set the visibility of chocolate here by your view main menu. And then it's the process control bar. I will also leave relevant links in the description so you guys can follow along with this miniseries on laser works called Laser Work. Now this feature is coming to one of our last features. It's not the last, but it's close. And that is the output Select graphics now. Yeah, yeah, you might have been able to name it, maybe select output graphics or selected output graphics. I'm not sure, but basically what this will do is the graphics that you have selected. It will only output that so but something to keep in mind. Let's say we've got this enabled and then we have nothing selected. Then it's actually gonna output nothing. So when you have that option selected to make sure you have your graphic selected that you actually want to cut and then what this will do is we'll ignore everything on your design except for this. But I do recommend that if you're gonna use this, perhaps put on the bottom option, which is selected graphics position and as we can see here at the moment, the laser origin here on the top left corner. Now, if we are to select that, you can see we suddenly got a new origin point, and that is a left top corner of the cut out. So that way it won't start taking place all the way there. Then they're already started at the right place. So just a quick recap again. So then, with this enabled output select graphics, we'll only output the selected graphics. Um, that is obviously selected, so you can select multiple things as well. And then if you select the selected graphics position, this will change the laser starting point to the origin of your select graphics. Otherwise, it will be by default. Origin point will be by your graphics itself. So everything on the page otherwise, Yeah, that is it. On output Selected graphics. If we had to hit here to softwaretraining.co.za C O. Today you guys don't notice for a variety of different software to recover, and also you can isolate. You're searching on top of right. If you do not, however, find the video you're looking for. Just go here, request a training video filling the mini form. And then we will make that video for you. But otherwise thanks, guys for watching and cheers.
