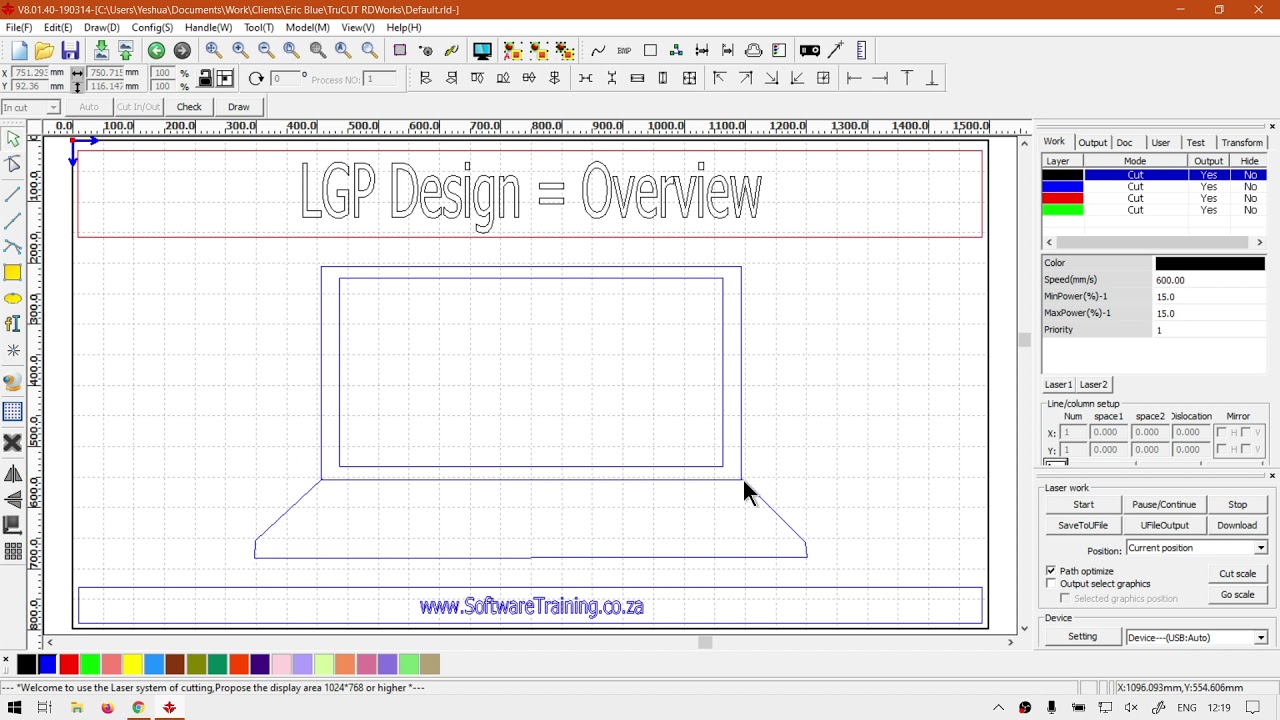

TruCUT RDWorks the Light Guided Plate Designs Overview (Part 1) LGP Design Videos

rdworks light guide plate design

The Light Guide Plate (LGP) Design is one of the technologies that you tend to find in Laptop Screens.

This is a rather complex feature, but the program has the tools and options to make a great LGP design.

This video is part of a Mini-Series.
Next video covers LGP Design – Base Shape.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

Yeah. Hi there, guys. In today's video, we're going to start looking at the L G P design and feature with intricate art books. But before that, let's have a quick intro first. Mhm. Yes. So today's video can be found on softwaretraining.co.za c o dot Today we make sure that you need to watch problem solving videos and we also have daily updates. Otherwise, back in the programme here. Now, just you guys know this is gonna be a mini design or sorry miniseries on the l B L G P design and I also leave relevant links and description so you guys can follow along now when it comes to the l g p. This is short for a light guide plate, and the general, um, theory or the way it works is kind of you have, uh sometimes I think it's kind of like a perspex type design, and they cut little different holes in the back for little bumps, and then that will interact different to the light sources. Now, Uh, yeah, I have, uh, personally opened the LCD display before. So this comment in laptops and the more modern L C. D s and yeah, if you guys have not. If you have a broken LCD, I would recommend try it, open it up and look at the different layers for the screen. And it's not what you expect. I thought it's gonna be a lot of ladies at the back, like some of the old things you can try kind of extract that use the ladies. But instead there was a single strip of the ladies on the left that shines across, and then the actual perspex type display picks up that light and creates you this this display, you see. And yeah, I really do not know how they get it right. There was many layers, but I'm telling you, it felt like magic. But yeah, that's a whole another science that, in any case, that is the basics of how it works. Now, if you want to locate the two, then what we wanna do is where there's two ways we can go about it. The first one is we go on the edit menu on the top main menu edit, and we go down till we find L G P Design. Then another way we can do it is going on our draw body on the left, we navigate to this little icon with a square with the little dots on the inside. Click that it will also open your LGBT design. Under this one, we've got three taps with a lot of settings, as you guys can see. So we've got parameter output and then we've got systems. So we're going through all of these to kind of see what's the difference. But yeah, that is it on the overview In future videos, we're gonna go into more depth on how to use these features or options. But in the meanwhile, if we head here to softwaretraining.co.zazm, you guys will notice we've got a variety of different Softwares to discover. And you can also isolate your search on top of right. If you do not, however, find the training videos you're looking for, just simply go. Yeah, of course. The training video filling the uniform. Then we'll do our best to try and make that for you. But otherwise thanks guys watching and shares
