TruCUT RDWorks the Base Lines Row and Column (Part 7) LGP Design Videos Mini-Series

rdworks base lines row column

When it comes to the Row and Column there is a few different options that you can set for these.

I would say by far the longest part of using this feature is having to apply the changes each time you want to see an update.

This video is part of a Mini-Series.
Next video covers LGP Design – Base Line Row and Col P2.
Previous video covered LGP Design – Light Positions.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

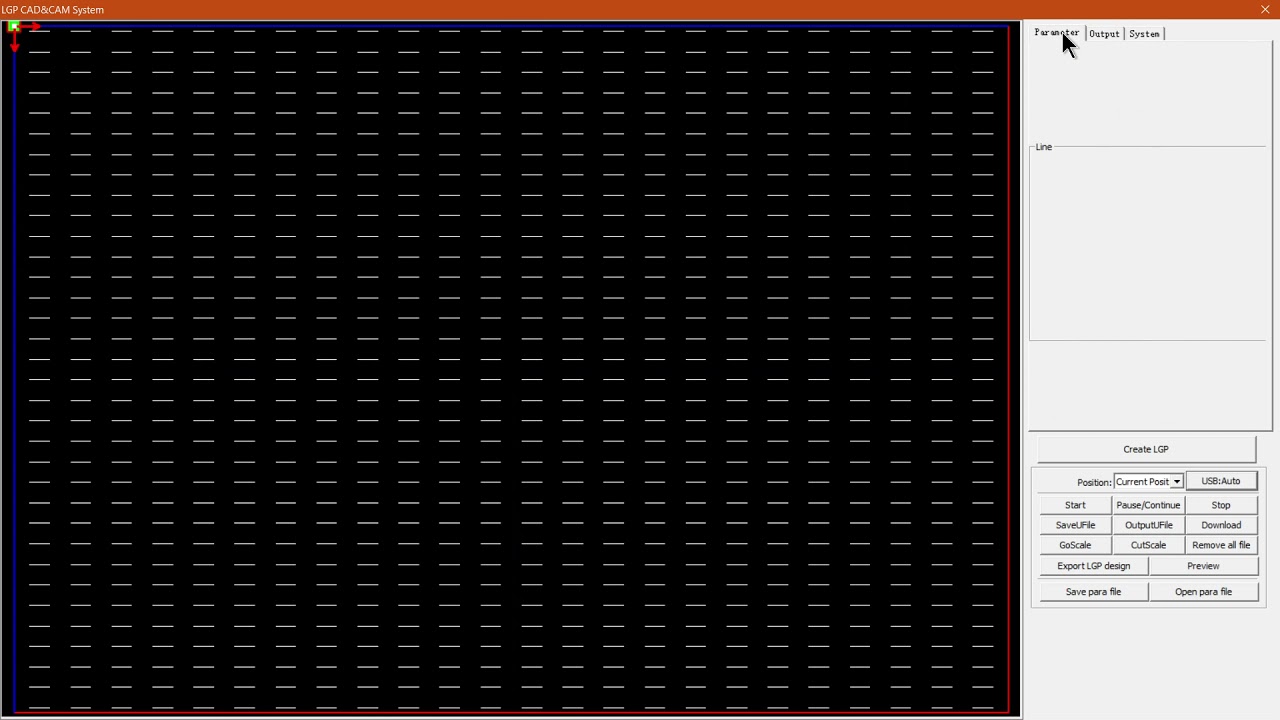

Hi there, guys. In today's video and truth that already works, We're gonna be looking at your l g P designs baselines. This is for the rows and columns. But before that, let's have a quick intro first. Yeah, Mhm. So today's video can be found on softwaretraining.co.za c o dot z. Do we make sure an easy to watch problem solving videos And we also have daily updates otherwise, back in the programme. Yeah. Now, just a quick reminder once again that this is a miniseries on the L. G P. Design and I will also leave relevant links and description so you guys can follow along now the baseline. This is pretty much the lines that can be set up within your l G B L G P design, and this will vary depending on the shape you've chosen and also the type. So now if I go here to the actual feature, just load a rectangle, say applies. We've got our lines there we go back to the parameters now under the type and light, we've got your light, and then you can see there's quite a few different settings we can look at, but we're gonna be starting at the rose and columns today. Now, these settings will vary depending on your type, like I mentioned. So if we go here from line to circle, you'll see we have different options available and saying if we have a grid, we've got even, uh, another set that then also this will also be relevant to the light types you've got. So one light versus four lights will change because it works according to your base line, which will be this line of a year. And if I had to go to a one line, you will notice. My baseline is now here at the bottom, so it will react differently. I'm gonna put my name forward just so that we have a consistency here within our thing. And yeah, then we head into it. So now how this works With the rows and columns, the rose works on a vertical access and the columns on a horizontal. So it is good to know, and then you'll see here. We've got Roman number. So that's 17. So that is the rose within this, um, uh, this block over your front of your baseline. So every block has got 17 going in, uh, vertical axis. And what do we have? 12 12 horizontal 17 vertical. I've had to change this to one side. You will see. Now it says 34 24. Because now it will fit all of those within this block. And that's why it increases. So then, um also another thing that's good to keep in mind, which can be rather, um, annoying, in my opinion, if you make any changes. So let's say, uh, we've made up one of the values and we actually go to system click, apply in warfare to take effect so it doesn't work with just changing your viewpoints. You actually have to applied every time. So it can be a lot of time consuming just to make small changes within your design. Then, um, we also have the categories here. As you can see, we've got start end and great. It's for gradient. So that is something to keep in mind that they work separate, and you'll also notice we've got great at ones, and the reason why they grade out is because they are relevant to these values. So, uh, the end amount is relevant to the size of your, um, image or your shape and the road number. And, for instance, column number will change depending on this value. So if I had to change this once again to and apply it, you'll see now it says eight of you. So that is something given one. Obviously, we won't see the update until we say apply. Then we can see a canal. There's eight. So that is why these ones are great out. Yeah, so that is a quick and you just have to use. This will go into the values now in the next video, seeing that this video dragged out a bit long. Otherwise, though, in the meanwhile, if we head here to softwaretraining.co.za c o dot you guys will notice. We've got a variety of different software to recover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to simply go here because your training video filling the meaning form, and then we'll do our best to try and make that for you. But otherwise thanks guys for watching and cheers
